Spring Loaded Lid Stay
s/s

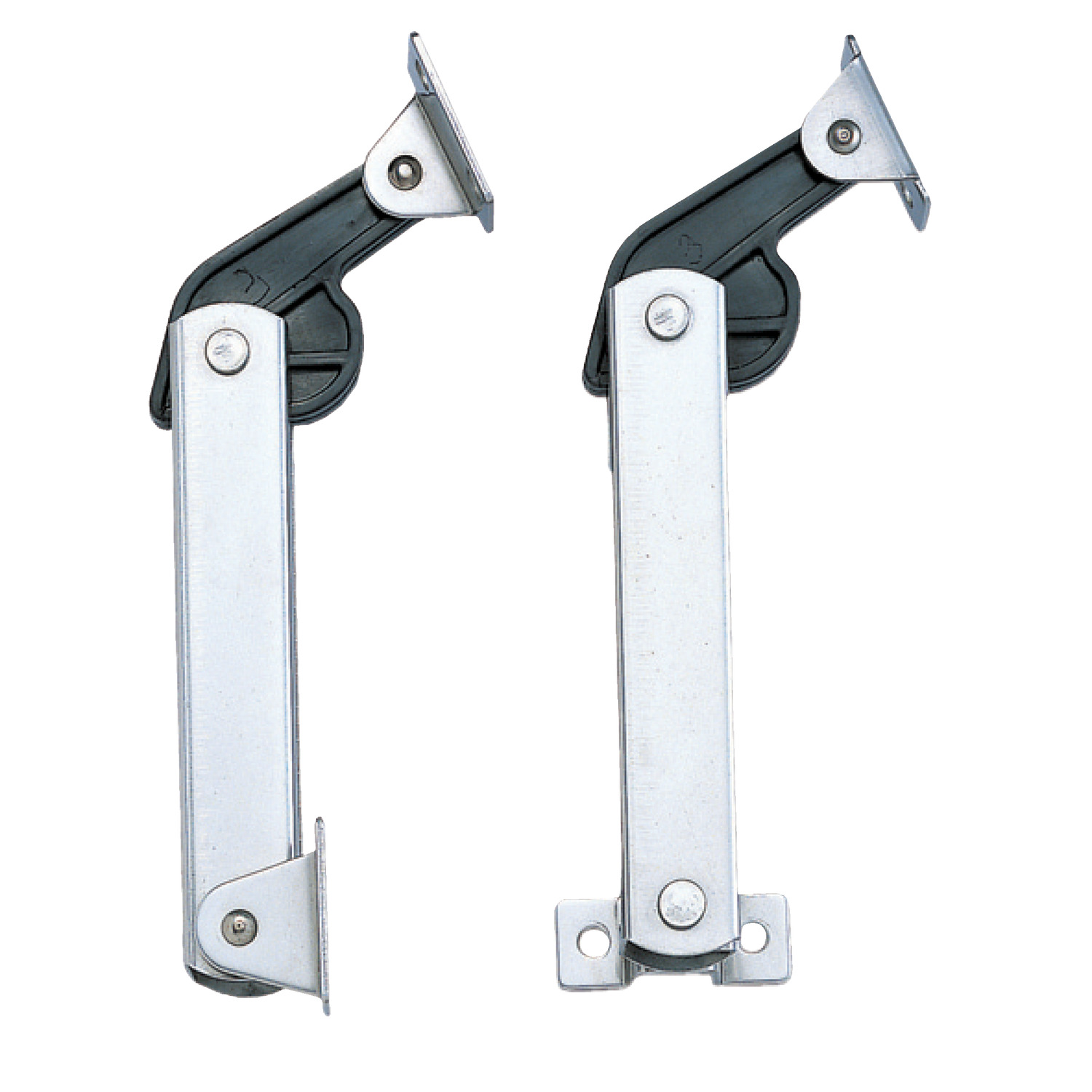

N0020 Spring Loaded Lid Stay
stainless steel, material: Stainless steel
Alternative products you may wish to consider
Hand
Right
Mounting type
Side
Spring tension
Soft
Torque
max.
kg/cm
30
Weight
g
118
£ 19.13 per unit (click for quantity discounts)
Hand
Right
Mounting type
Side
Spring tension
Hard
Torque
max.
kg/cm
40
Weight
g
118
£ 17.38 per unit (click for quantity discounts)
Hand
Left
Mounting type
Side
Spring tension
Soft
Torque
max.
kg/cm
30
Weight
g
118
£ 19.13 per unit (click for quantity discounts)
Hand
Left
Mounting type
Side
Spring tension
Hard
Torque
max.
kg/cm
40
Weight
g
118
£ 21.99 per unit (click for quantity discounts)
Hand
Non-handed
Mounting type
Back Panel
Spring tension
Soft
Torque
max.
kg/cm
30
Weight
g
118
£ 17.60 per unit (click for quantity discounts)
Hand
Non-handed
Mounting type
Back Panel
Spring tension
Hard
Torque
max.
kg/cm
40
Weight
g
118
£ 20.16 per unit (click for quantity discounts)
Hand
Mounting type
Spring tension
Torque
max.
kg/cm
Weight
g
| Price & Availability | Article | Hand | Mounting type | Spring tension | Torque max. kg/cm | Weight g | ||||||||||||||||||
| N0020.AC0010 | Right | Side | Soft | 30 | 118 | |||||||||||||||||||
£ 19.13 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Hand Right Mounting type Side Spring tension Soft Torque
max.
kg/cm 30 Weight
g 118 | ||||||||||||||||||||||||
| N0020.AC0020 | Right | Side | Hard | 40 | 118 | |||||||||||||||||||
£ 17.38 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Hand Right Mounting type Side Spring tension Hard Torque
max.
kg/cm 40 Weight
g 118 | ||||||||||||||||||||||||
| N0020.AC0110 | Left | Side | Soft | 30 | 118 | |||||||||||||||||||
£ 19.13 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Hand Left Mounting type Side Spring tension Soft Torque
max.
kg/cm 30 Weight
g 118 | ||||||||||||||||||||||||
| N0020.AC0120 | Left | Side | Hard | 40 | 118 | |||||||||||||||||||
£ 21.99 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Hand Left Mounting type Side Spring tension Hard Torque
max.
kg/cm 40 Weight
g 118 | ||||||||||||||||||||||||
| N0020.AC0210 | Non-handed | Back Panel | Soft | 30 | 118 | |||||||||||||||||||
£ 17.60 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Hand Non-handed Mounting type Back Panel Spring tension Soft Torque
max.
kg/cm 30 Weight
g 118 | ||||||||||||||||||||||||
| N0020.AC0220 | Non-handed | Back Panel | Hard | 40 | 118 | |||||||||||||||||||
£ 20.16 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Hand Non-handed Mounting type Back Panel Spring tension Hard Torque
max.
kg/cm 40 Weight
g 118 | ||||||||||||||||||||||||
Technical & Application
Material
Body: stainless steel, AISI 304.
Arm: polyacetal
Technical Notes

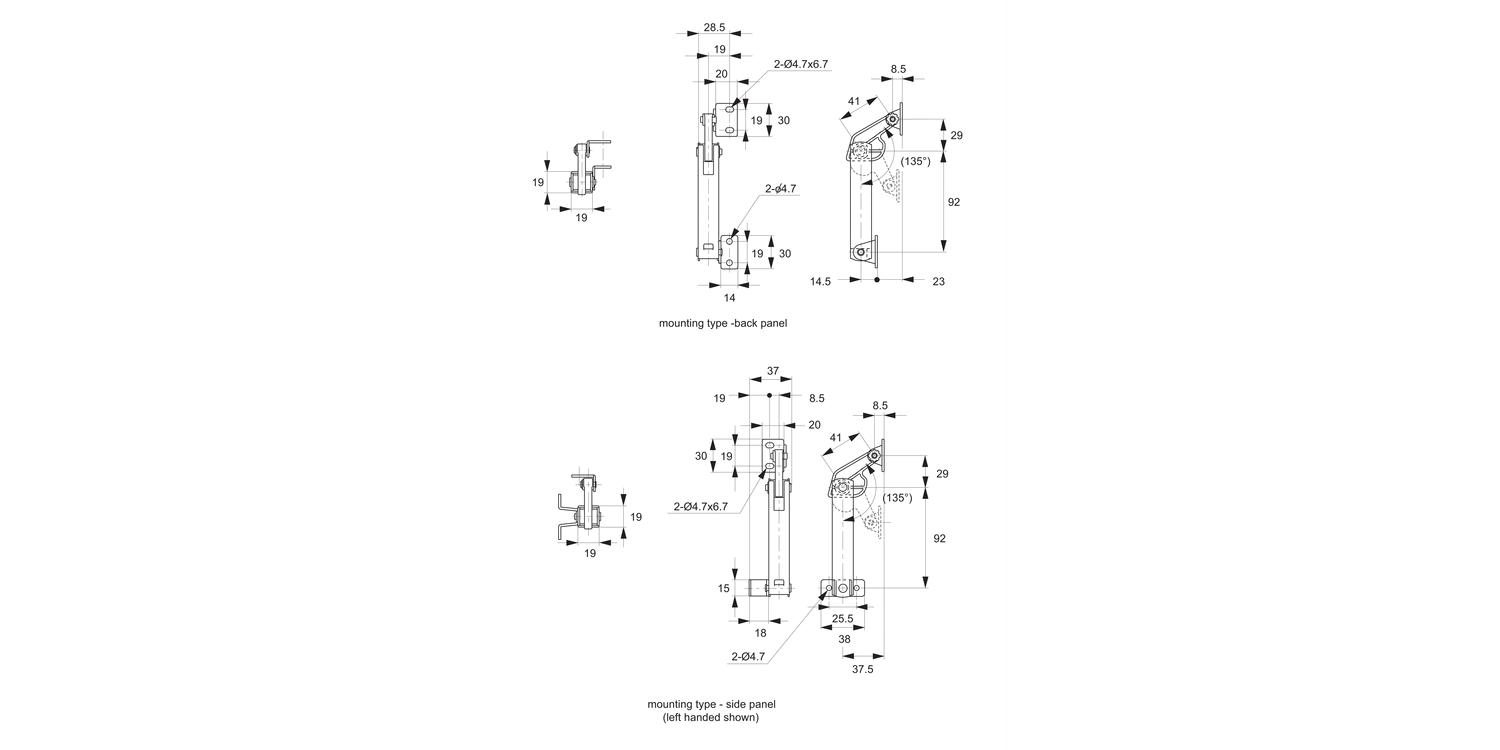

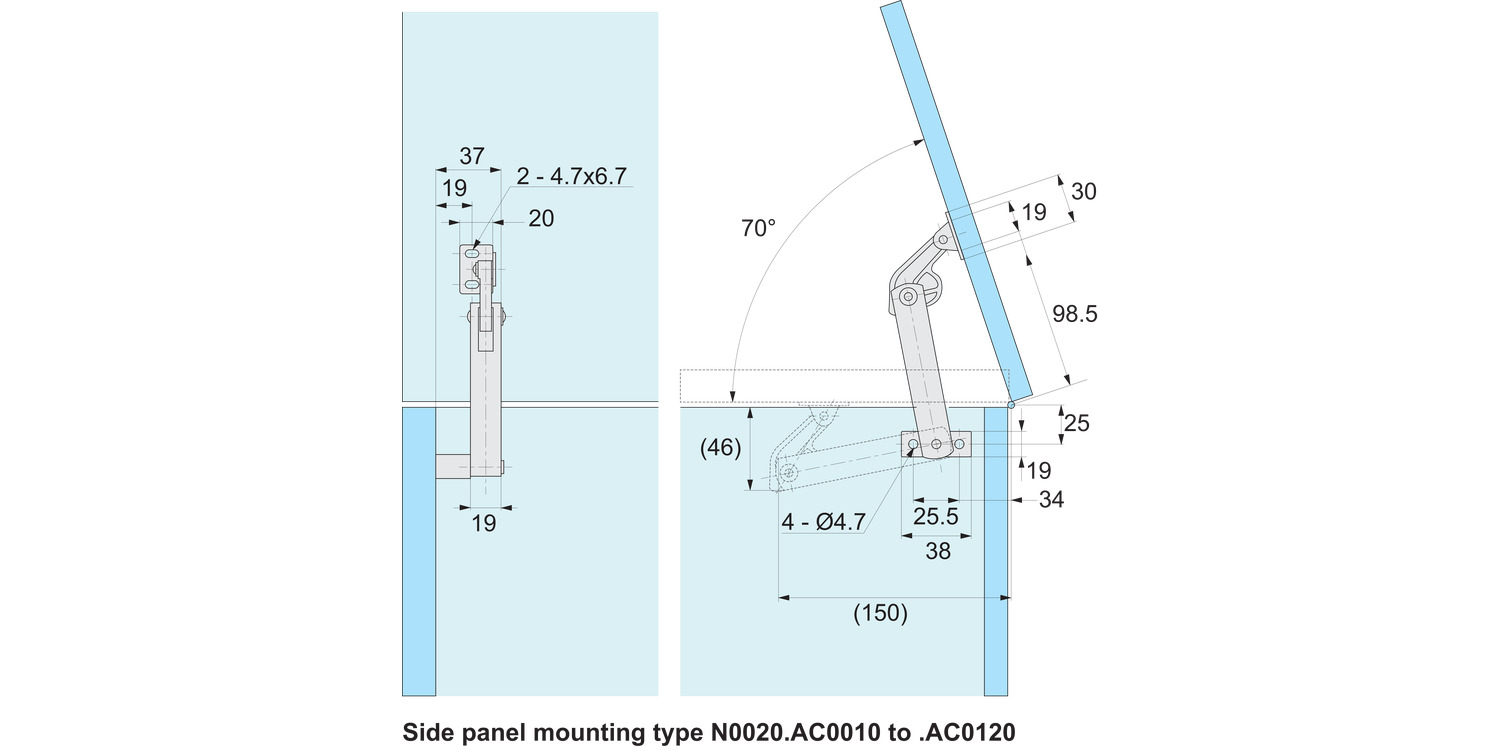

Spring mechanism assists lifting of lid, and holds lid in open position. Mounting possible via side mounting (right or left) or via mounting to back panel of lid/frame.
Tips
Suitable for light/medium duty applications, refer to max. torque values.
Check Max. Torque (T):
t (Max. Torque Valve of Stay Kg/cm) =
1/2 Door Height cm x Door Weight Kg.
Product Datasheets
Application images
