Screw Jack
aluminium

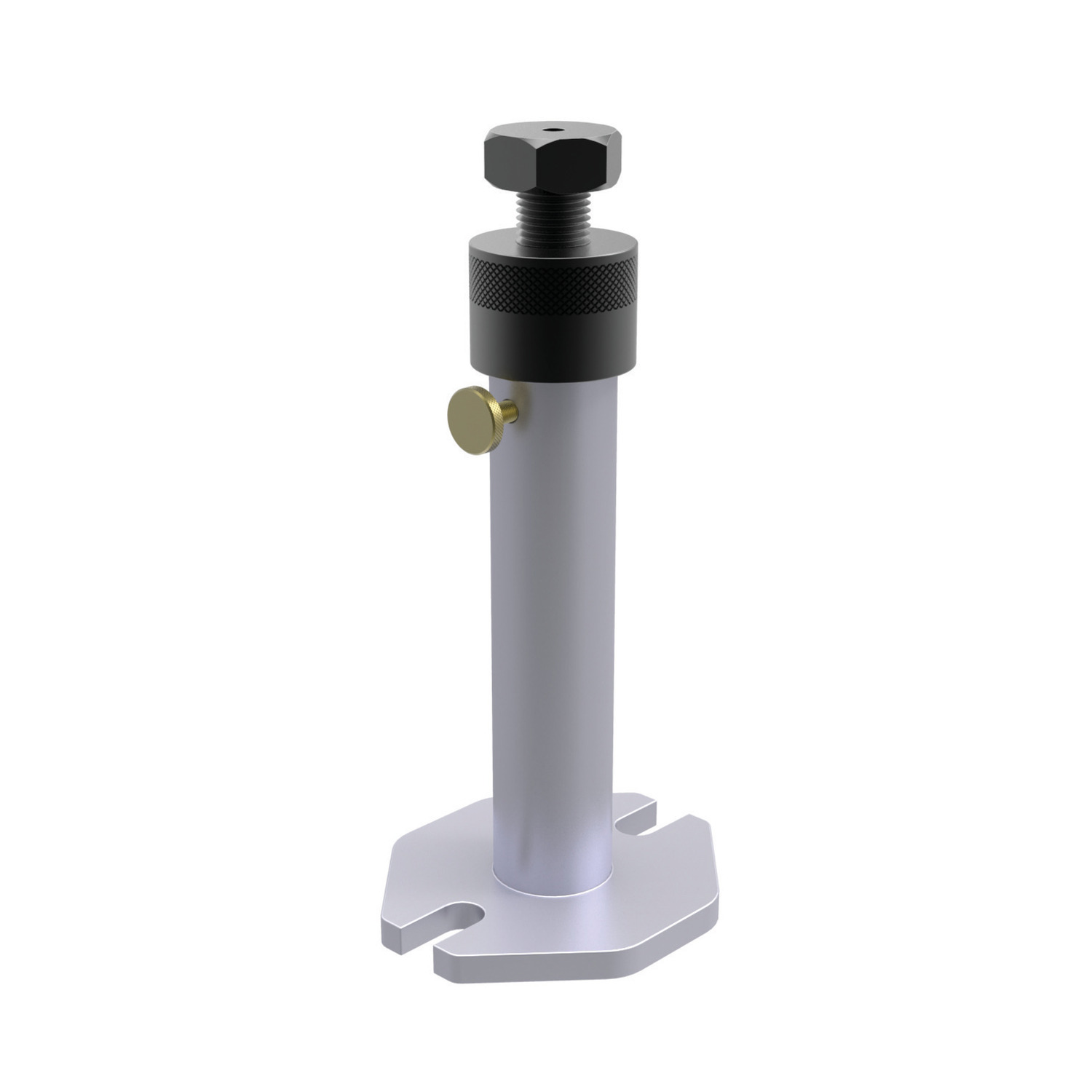

15360 Support Stands
stepless adjustment, material: Carbon steel
Order No.
15360.W0071

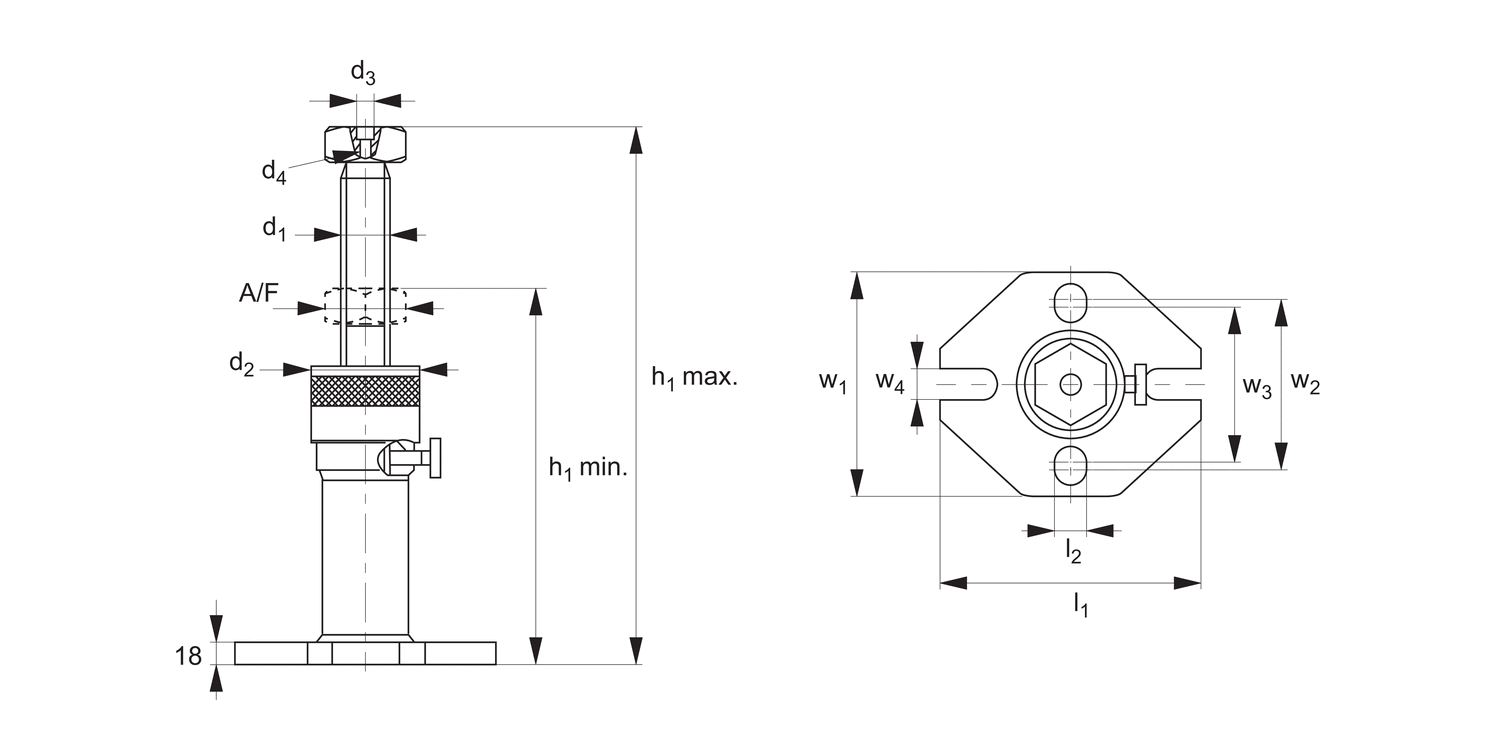

h1
min.
450
h1
max.
710
d1
40x7
d2
90
d3
12
d4
M10
w1
26
w2
190
l1
220
A/F
65
Static load
max.
kN
40
Weight
kg
13.7
£ 1,381.88 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-2 | £ 1,381.88 | 0% |
| 3-4 | £ 1,243.69 | 10% |
| 5-9 | £ 1,174.60 | 15% |
| 10-19 | £ 1,105.50 | 20% |
| 20+ | £ 1,036.41 | 25% |
Technical & Application
Material
Housing: steel, tempered, enamelled.
Spindle: steel, tempered, trapezoidal thread.
Technical Notes
This screw jack is designed for quick, stepless adjustment throughout its height range.
Centering hole Ø12mm.
See technical pages for the table of locating pad and support locating element suitability.
Tips
To adjust height, grip spindle, loosen locking screw, twist setting ring and set required height.
Important Notes
Do not adjust screw jacks under load.
