E5850 Magnetic Catches

Name: E5850.AC0010
Brand: WC
SKU: E5850.AC0010
Price: 1.8 EUR
Availability: OutOfStock

push-fit, material: Polypropylene

Article properties

Order No.

E5850.AC0010

Type

Magnet

Magnetic force kgf

2.5

Finish

White

d₁

d₂

Weight g

6.0

See full product selection

£ 1.80 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-49	£ 1.80	0%
50-99	£ 1.62	10%
100-249	£ 1.53	15%
250-499	£ 1.44	20%
500+	£ 1.35	25%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Body: polypropylene.
Yoke: steel.
Strike: steel, nickel or chrome plated.

Technical Notes

Catches can be used with either strike a or b, to suit your application.
Moveable magnet enables better positioning to ensure full surface contact with strike, and hence full magnetic force.

Tips

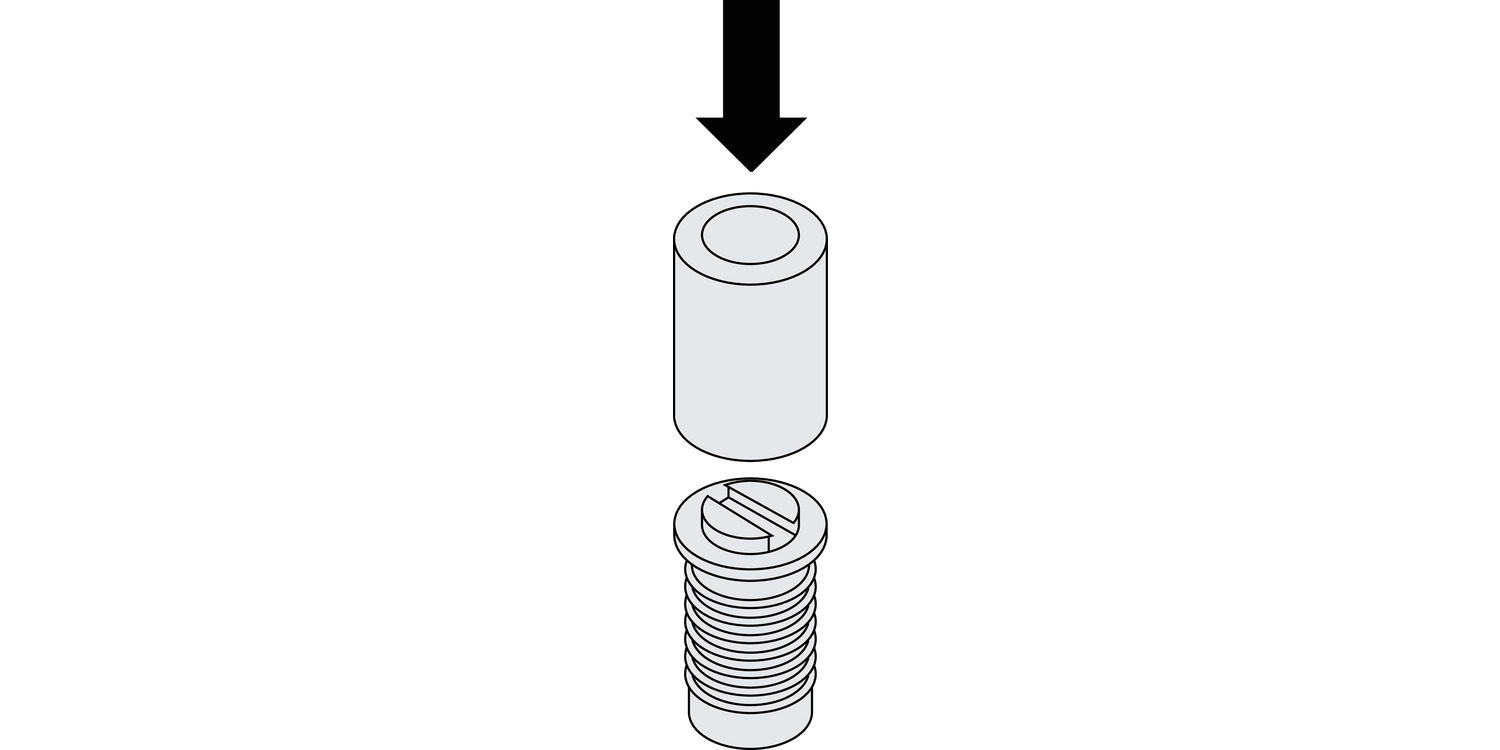

When installing magnet, use tube to apply pressure to plastic housing only, to avoid damage to the magnet.
