Product Selection for Multi-Point Latching Set A0303
Applications

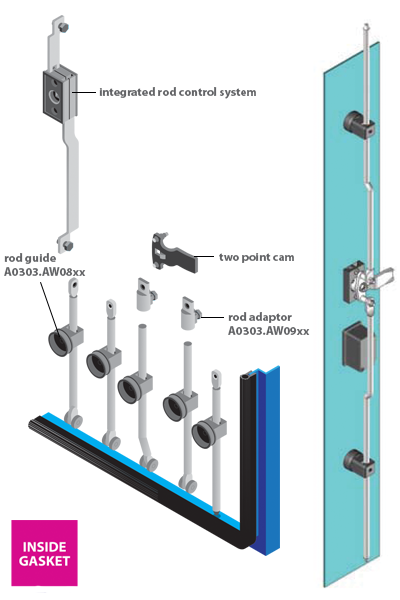

Applications inside the gasket
Round Rod and Accessories compatability
| Round Rod type | Rod one | Rod two | Rod three |
| Part no. A0303 compatible with: | .AW01xxx | .AW2xxx | .AW3xxx |
| Two Point Cam (A0240) | ✘ | ✘ | ✘ |
| Integrated rod control systems | ✔ | ✘ | ✘ |
| Required Accessories: | |||
| Rod Guide A0303.AW08xx | ✔ | ✔ | ✔ |
| Rod adaptor A0303.AW0900 | ✘ | ✔ | ✘ |
| Rod adaptor A0303.AW0910 | ✔ | ✘ | ✘ |
Note: Use of Rod guide is essential for all applications.
Ordering example for complete Rod Set:
To suit a single enclosure door, where h1 (height between base of rod and inside of door) = 3,6mm.
1 x A0325.AW1070 - flat rod (pkt of 2).
1 x A0325.AW0800 - rod guide (pkt of 2), h1 - 3,6mm.
1 x A0325.AW0900 - rod catcher (pkt of 2).
