One-Touch Fastener - Spindle Locks 33980
What is...
Features

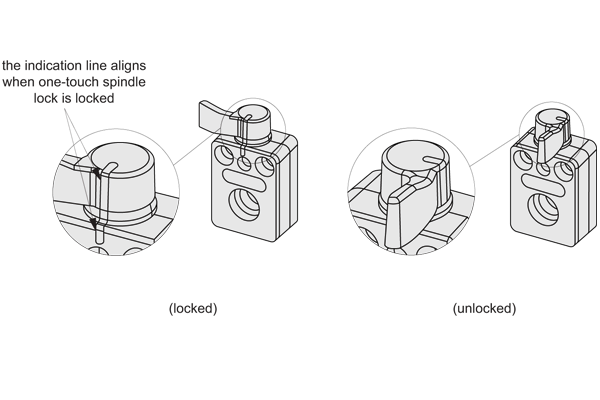

Operating Principle
- One-touch Spindle Locks enable quick and secure locking of shafts with one click of the knob.
- When One-touch Spindle Lock is operated, the knob clicks and the shaft is locked with a steady force. This provides reliable locking of shafts.
- The knob position and the indication line clearly indicate lock/unlock position.

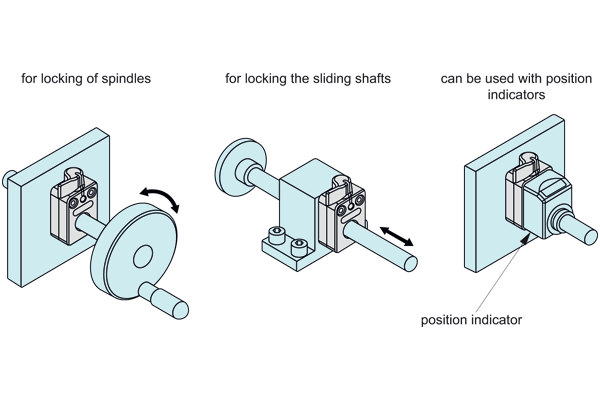

Operating Instructions
Note: To mount position indicators to One-touch Spindle Locks, use the rubber cushion supplied with position indicators.
Technical Specs

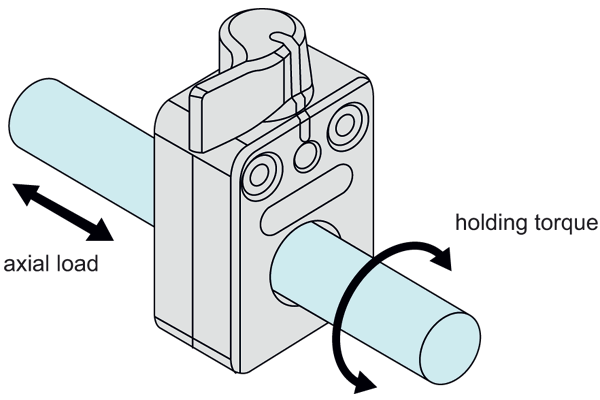

Load Ratings
One-touch Spindle Locks can fix both revolving and sliding shafts.
| For shaft Ø h7 | d2 | Max. holding torque Nm | Max. axial load N |
| 8 | M4 | 3 | 400 |
| 10 | M4 | 3 | 400 |
| 12 | M4 | 4 | 400 |
| 14 | M4 | 4 | 400 |
| 12 | M5 | 5 | 500 |
| 15 | M5 | 5 | 500 |
| 16 | M5 | 6 | 500 |
| 20 | M5 | 6 | 500 |
Notes
- This product cannot be used as bearings or guides for shafts.
- Shafts may slip in environments where shocks or vibrations are present.
- The allowable holding torque and the allowable sliding load may decrease with adhesion of particles or immersion in oil.
