Pneumatic Swing Clamps 12900 - 12980
What is...
Pneumatic Swing Clamps are ideal for applications requiring low clamping forces e.g. welding, assembly etc, and where the workpiece can be easily positioned from above.
Application

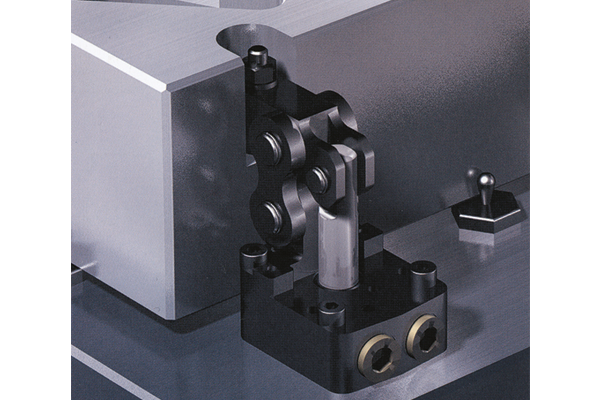

12900 - Link clamp, pressed into a fixture

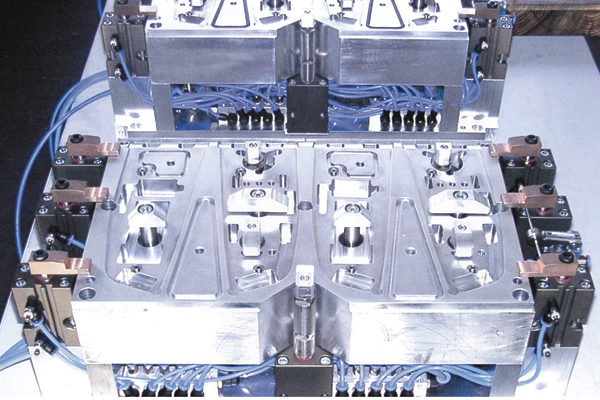

12910 - Pneumatic Swing Clamp - Block version in use on a fixture
Features
Advantages
- No need for a seperate hydraulic feed.
- Magnetic pistons allow sensing of end positions.
- Activation via standard 6-9 bar workshop air feed.
Important: Swing Clamp must not be obstructed in it's travel.
Available models

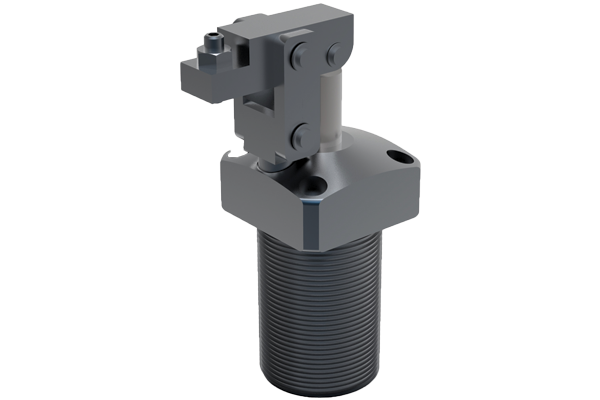

12900 - Link clamp double acting, link clamp, flange mounting

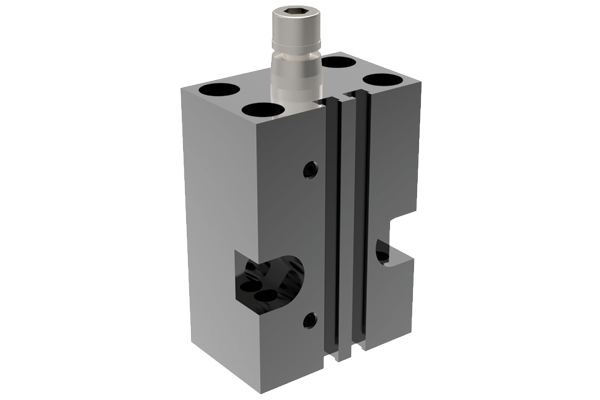

12910 - Double acting block version

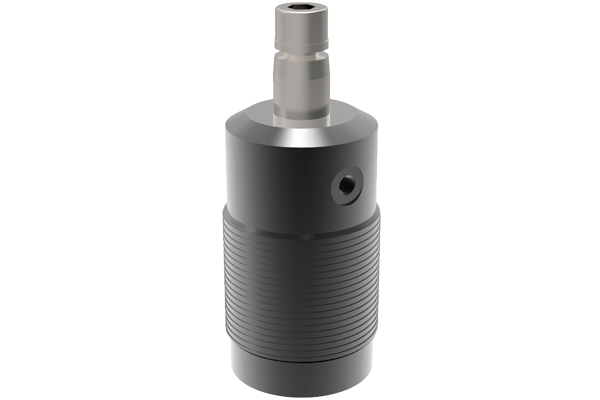

12920 - Double acting screw version

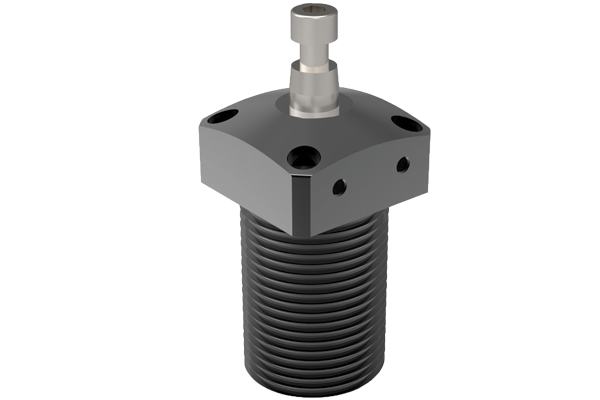

12930 - Double acting flange mounting
Installation
Screw fixing from above

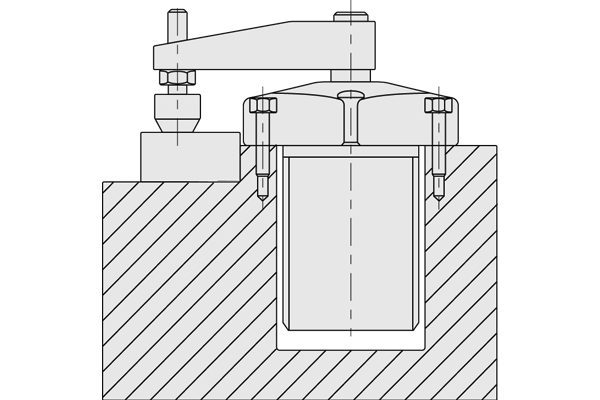

Fixing nut 12960 from above

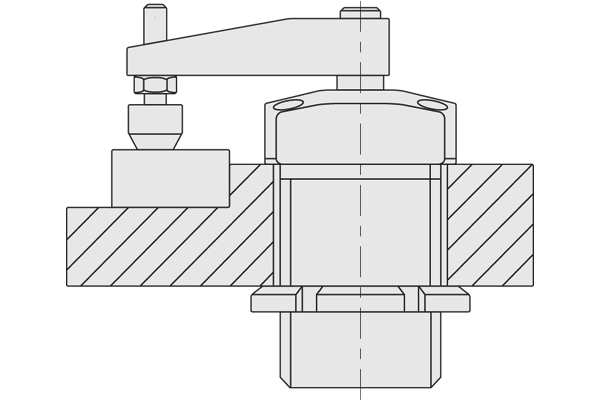

Fixing nut 12960 from below
