A-V Cylinders
Steel
61110 Anti-vibration Cylinders Waisted
male:female, material: Steel
Alternative products you may wish to consider
d1
60
h1
36
d2
M10
l1
30
d3
37
Compression
max.
5
Axial load
max.
kgf
90
Radial load
max.
kgf
7.0
£ 7.50 per unit (click for quantity discounts)
d1
70
h1
56
d2
M12
l1
35
d3
50
Compression
max.
6
Axial load
max.
kgf
220
Radial load
max.
kgf
45.0
£ 15.87 per unit (click for quantity discounts)
d1
90
h1
50
d2
M12
l1
45
d3
80
Compression
max.
4
Axial load
max.
kgf
800
Radial load
max.
kgf
65.0
£ 25.10 per unit (click for quantity discounts)
d1
130
h1
96
d2
M16
l1
45
d3
115
Compression
max.
13
Axial load
max.
kgf
1400
Radial load
max.
kgf
70.0
£ 56.96 per unit (click for quantity discounts)
d1
h1
d2
l1
d3
Compression
max.
Axial load
max.
kgf
Radial load
max.
kgf
| Price & Availability | Article | d1 | h1 | d2 | l1 | d3 | Compression max. | Axial load max. kgf | Radial load max. kgf | |||||||||||||||||||||
| 61110.W0600 | 60 | 36 | M10 | 30 | 37 | 5 | 90 | 7.0 | ||||||||||||||||||||||
£ 7.50 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
d1 60 h1 36 d2 M10 l1 30 d3 37 Compression
max. 5 Axial load
max.
kgf 90 Radial load
max.
kgf 7.0 | ||||||||||||||||||||||||||||||
| 61110.W0700 | 70 | 56 | M12 | 35 | 50 | 6 | 220 | 45.0 | ||||||||||||||||||||||
£ 15.87 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 70 h1 56 d2 M12 l1 35 d3 50 Compression
max. 6 Axial load
max.
kgf 220 Radial load
max.
kgf 45.0 | ||||||||||||||||||||||||||||||
| 61110.W0900 | 90 | 50 | M12 | 45 | 80 | 4 | 800 | 65.0 | ||||||||||||||||||||||
£ 25.10 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 90 h1 50 d2 M12 l1 45 d3 80 Compression
max. 4 Axial load
max.
kgf 800 Radial load
max.
kgf 65.0 | ||||||||||||||||||||||||||||||
| 61110.W1300 | 130 | 96 | M16 | 45 | 115 | 13 | 1400 | 70.0 | ||||||||||||||||||||||
£ 56.96 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 130 h1 96 d2 M16 l1 45 d3 115 Compression
max. 13 Axial load
max.
kgf 1400 Radial load
max.
kgf 70.0 | ||||||||||||||||||||||||||||||
Technical & Application
Material
Rubber on silver zinc plated steel (rubber hardness - 55 Shore A).
Tips

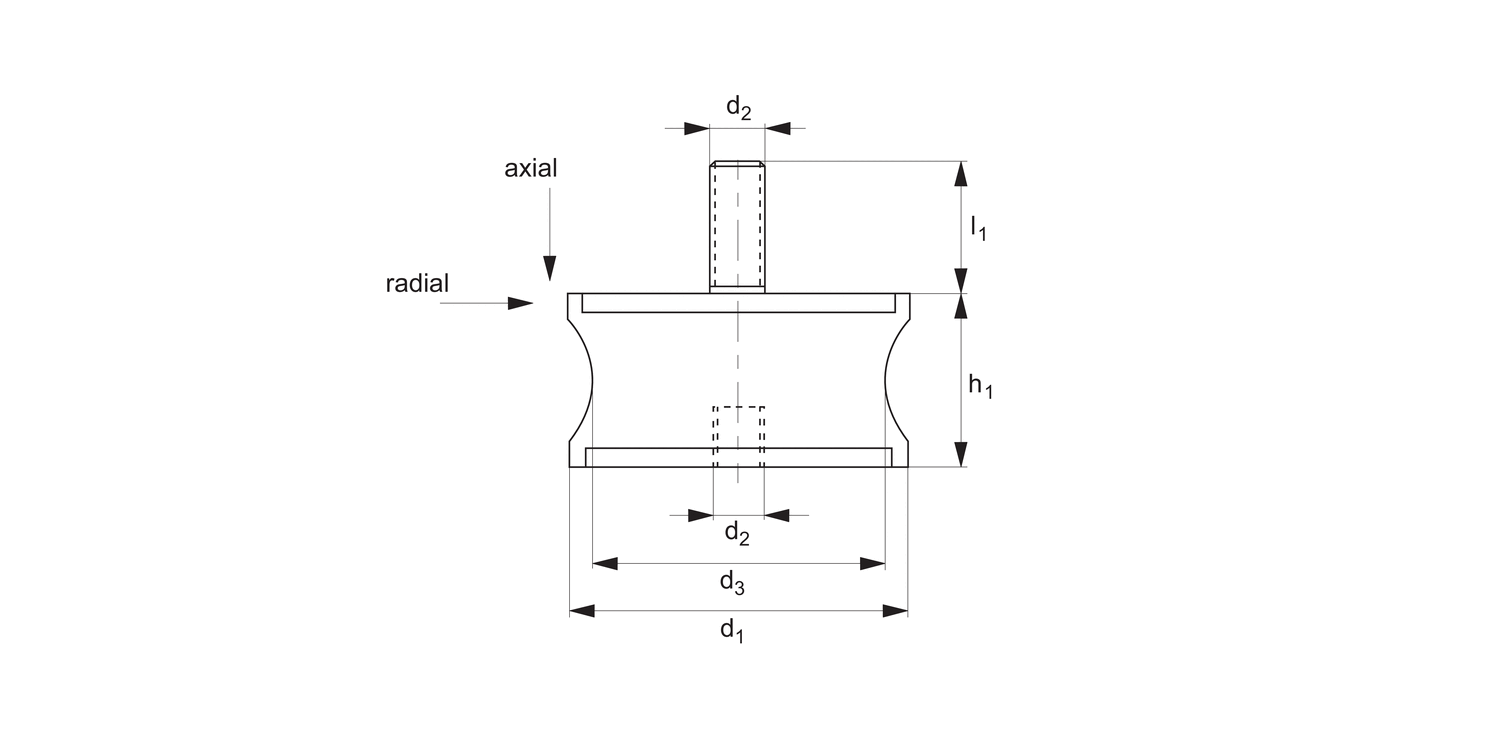

These cylinders are used to reduce vibration by allowing some movement (in axial and radial as shown).
Typically used in machinery, compressors, air conditioning units, light engineering equipment etc.
