Solid Roller
roller only

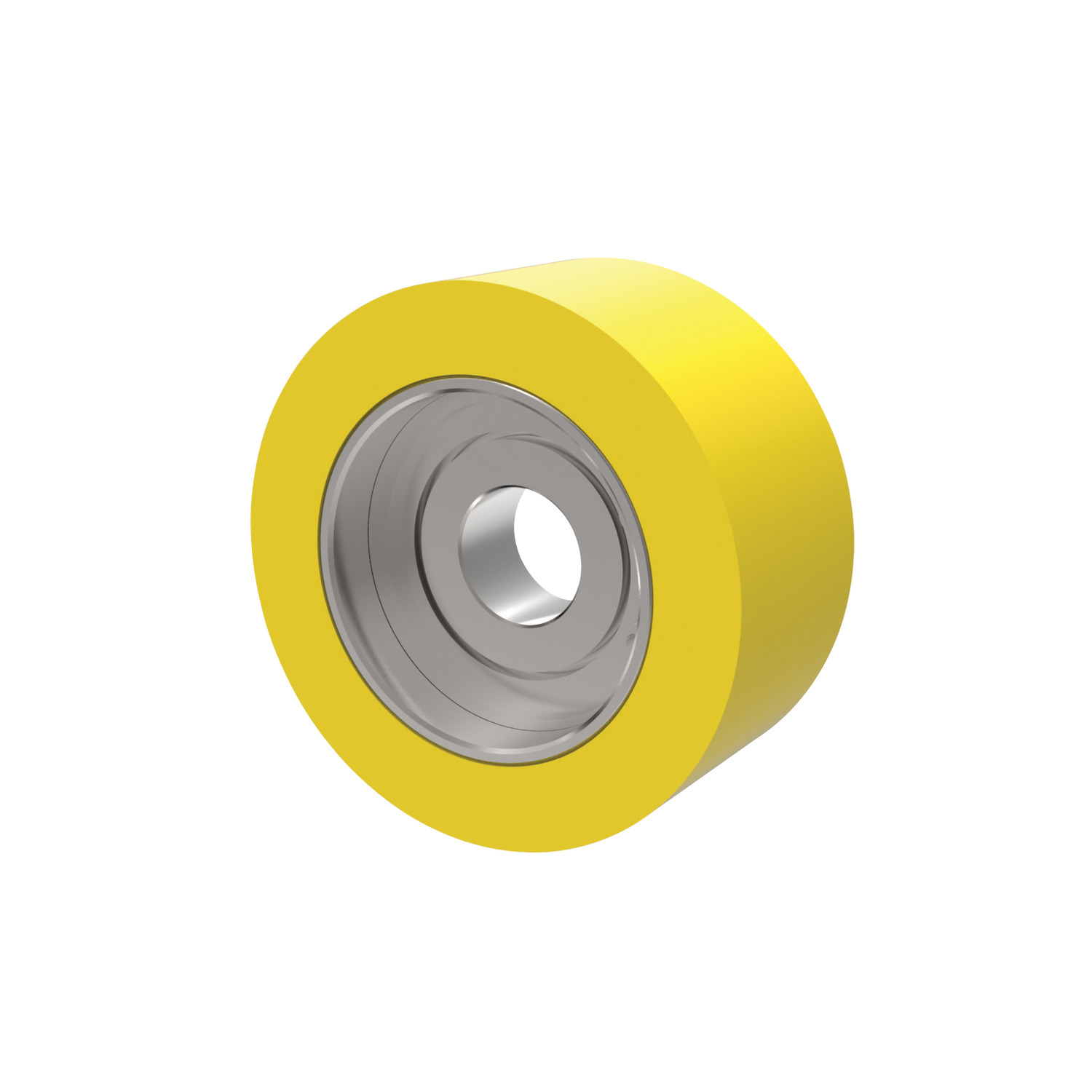

60622 Solid Roller
bearing mount, material: Nitrile, urethane or neoprene
Order No.
60622.W1026
Material
Nitrile
Durometer
60

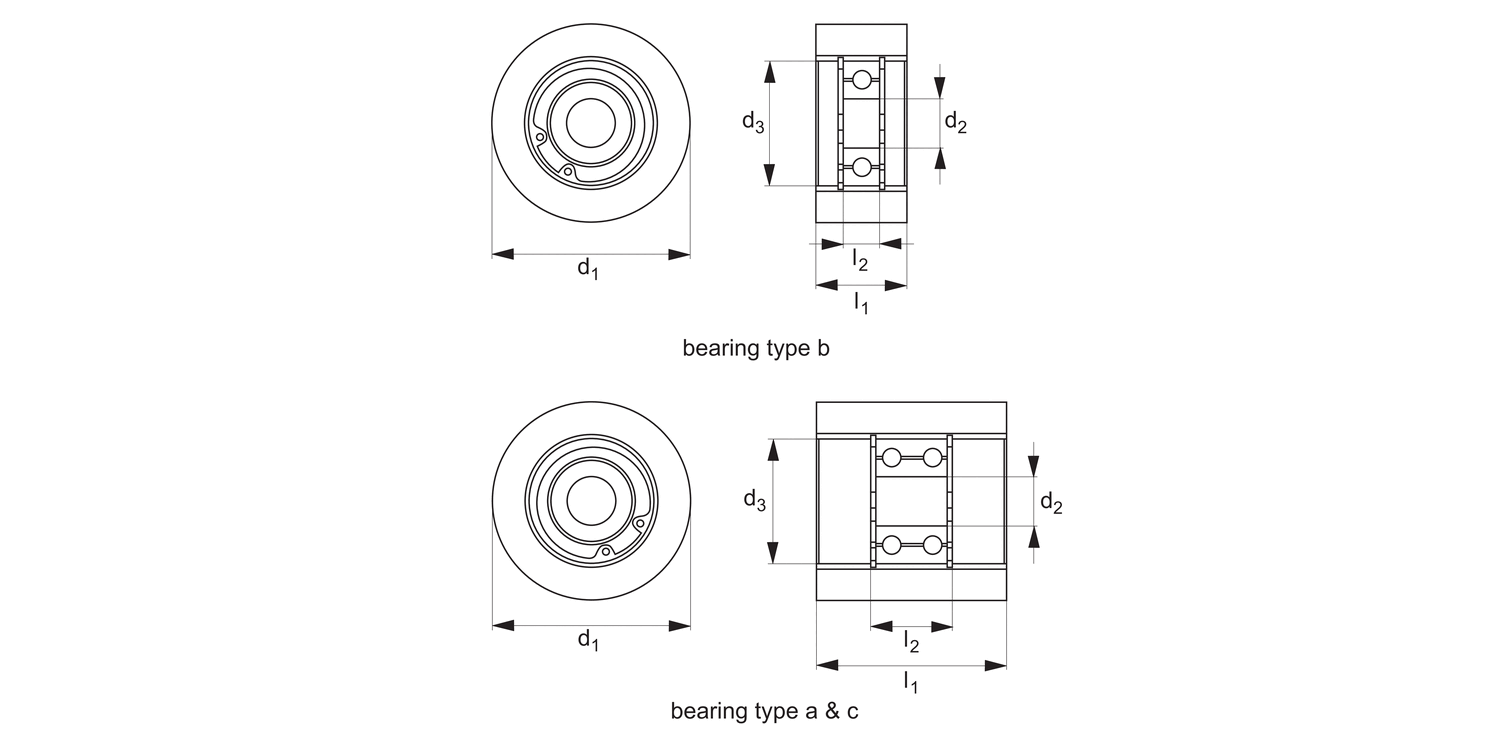

d1
50,8 (2,0")
l1
49.28
d2
12.77
d3
31.69
l2
19.05
Bearing type
C
£ 47.70 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 47.70 | 0% |
| 5-9 | £ 42.93 | 10% |
| 10-19 | £ 40.55 | 15% |
| 20-49 | £ 35.78 | 25% |
| 50+ | £ 31.01 | 35% |
Technical & Application
Material
Nitrile, urethane or neoprene bonded to a steel insert.
Hardness from 20-80 durometer (Shore A).
Technical Notes
Bearings included (held in place with snap rings). For more details on bearings please see technical pages.
Tolerances:
When d1=38,10
d2 ±0.05
d3 ±0.07
l2 ±0.05
When d1>38,10
d2 ±0,065
d3 ±0,065
l2 ±0,08
