Tapered Shaft Hubs
38400 Tapered Shaft Hubs
non-locking, material: Steel
Order No.
38400.W0014
Finish
Without Lock Nut

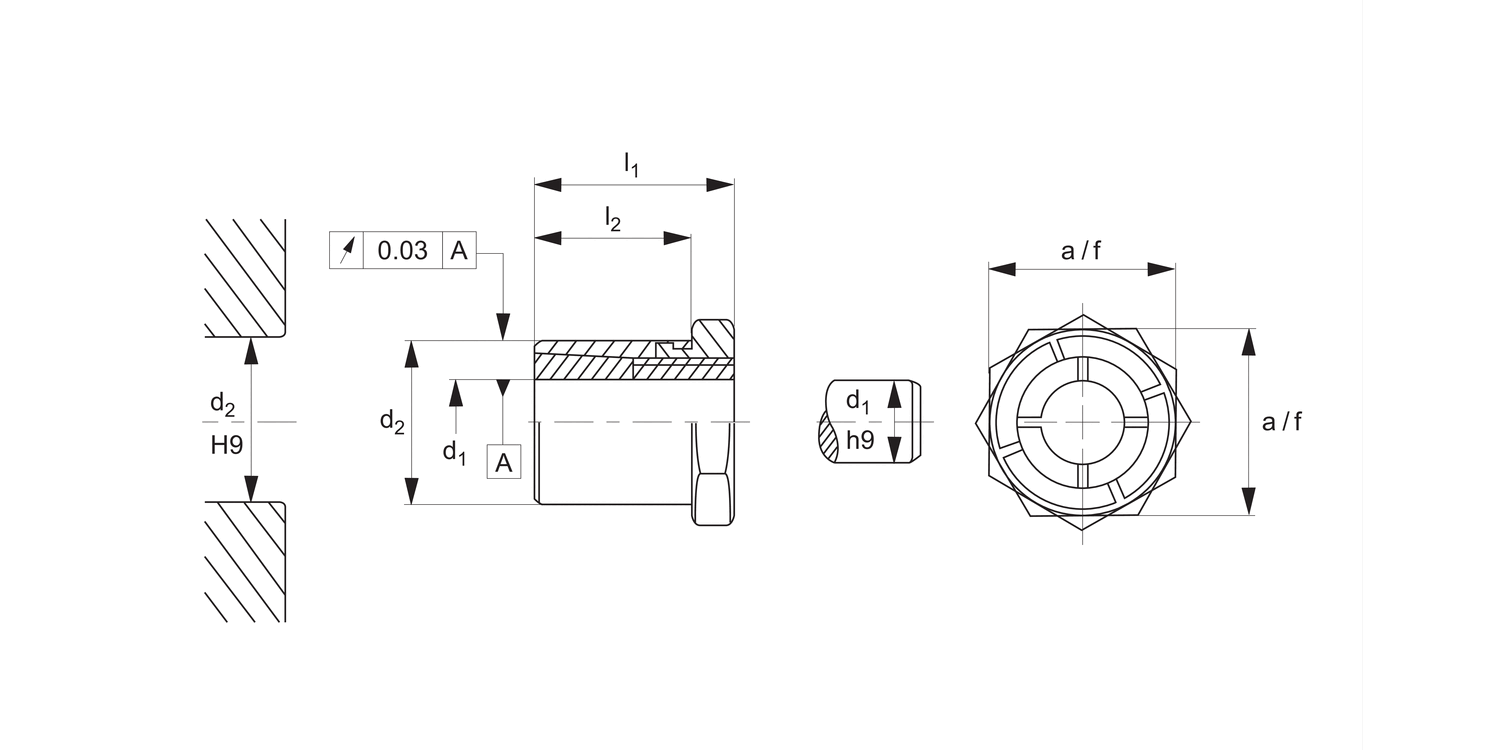

d1
14
d2
26
l1
28
l2
22
A/F
27
M
max.
Nm
93.0
pn
max.
N/mm²
99
pw
max.
N/mm²
178
Ta
max.
Nm
65.0
Fa
max.
kN
13.3
Weight
g
83
£ 35.85 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 35.85 | 0% |
| 5-9 | £ 34.06 | 5% |
| 10-19 | £ 32.27 | 10% |
| 20-49 | £ 30.47 | 15% |
| 50+ | £ 26.89 | 25% |
Technical & Application
Material
Inner part: steel, blackened. Outer part: steel, galvanised. Nut: steel, nickel-plated.
Technical Notes
Ta = tightening torque of nut.
M = transferable torque.
Fa = transferable thrust load.
pw = surface pressure of shaft.
pn = surface pressure of hub.
The rotational accuracy is 0,03mm.
Please refer to technical pages for mounting instructions.
Tips

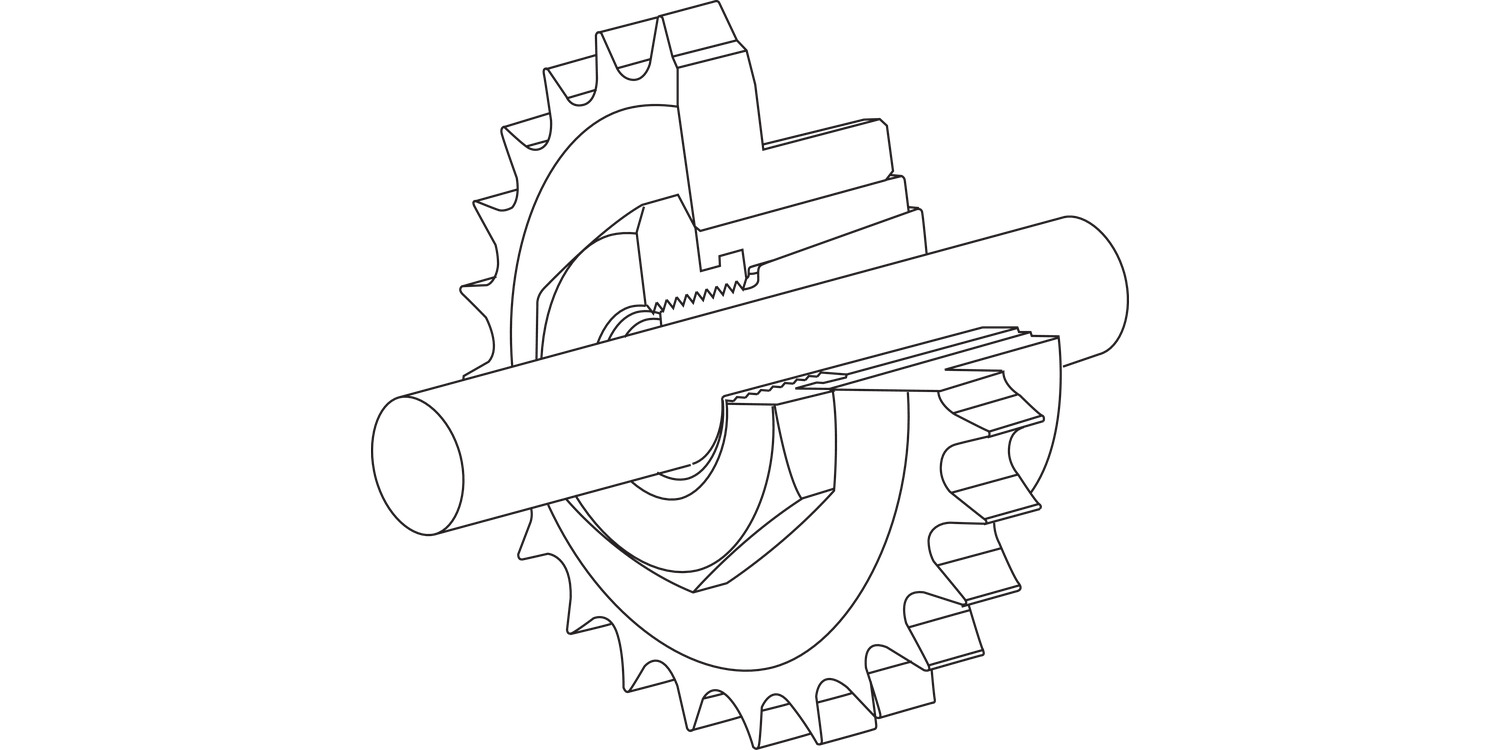

These self-centering and non-floating tapered shaft hubs are used to easily and effectively achieve shaft/hub joints of machine elements such as sprocket wheels, gear wheels, belt pulleys, cams, levers etc.
For special fork wrench see part 38420.W0814- .W0865.
