Index Plunger - Safety
protruding at start
32781 Index plungers - Pull Grip
locking - tamper resistant - pin protruding at start, material: Steel
Order No.
32781.W0008
Type
With Grip
d1
0|-0.05
8
d2
M16x1,5
d3
18
d4
28
d5
17
d6
20
l1
≈
52
l2
10
l3
22
l4
≈
6
l5
48
A/F
16
Spring load F1
≈
N
14
Spring load F2
≈
N
38
Weight
kg
0.05
£ 24.10 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 24.10 | 0% |
| 5-9 | £ 21.69 | 10% |
| 10-19 | £ 20.49 | 15% |
| 20-49 | £ 18.08 | 25% |
| 50+ | £ 15.67 | 35% |
Technical & Application
Material
Body: free cutting steel, zinc plated, blue passivated.
Pin: stainless steel, 1.4305 (AISI 303).
Spring: stainless steel, 1.4310 (AISI 301).
Grip: thermoplastic PA6, black.
Technical Notes
Tamper resistant against unauthorised or accidental actuation.
At start position pin is protruding, when lever is actuated pin retracts.
Two different types available;
with grip - enables pin to be held in retracted/non projecting position; pull back grip, turn 90° to engage 'locking' via a deep notch in plunger body.
with safety key - use key to hold pin in retracted/non-projecting position; acuate key (please order seperately) turn 90° to engage 'locking via a deep notch in plunger body.
Lock nuts sold separately See products 65690 and 65692
Tips
Grip non-removable.
Spring loads* = statisical average.
Product Datasheets

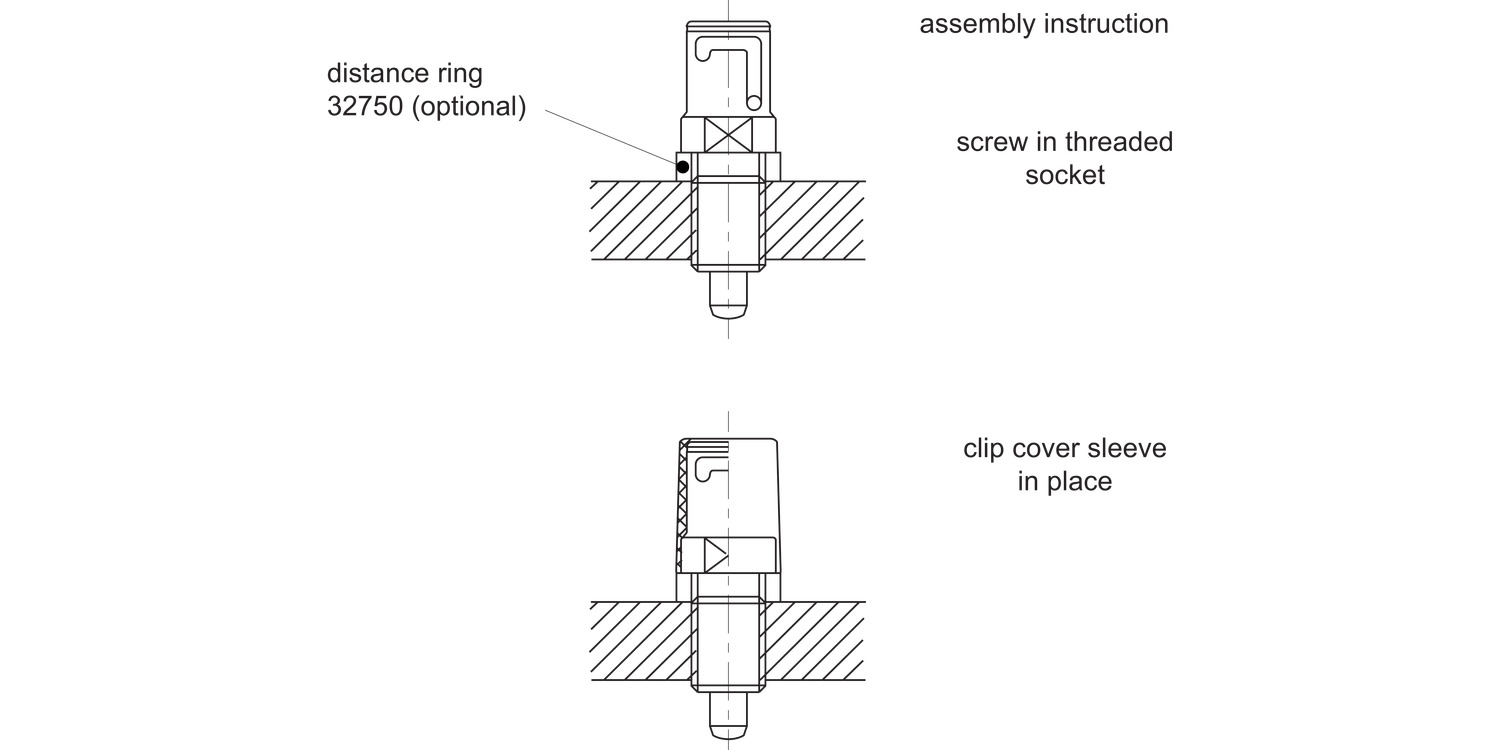

Application images
