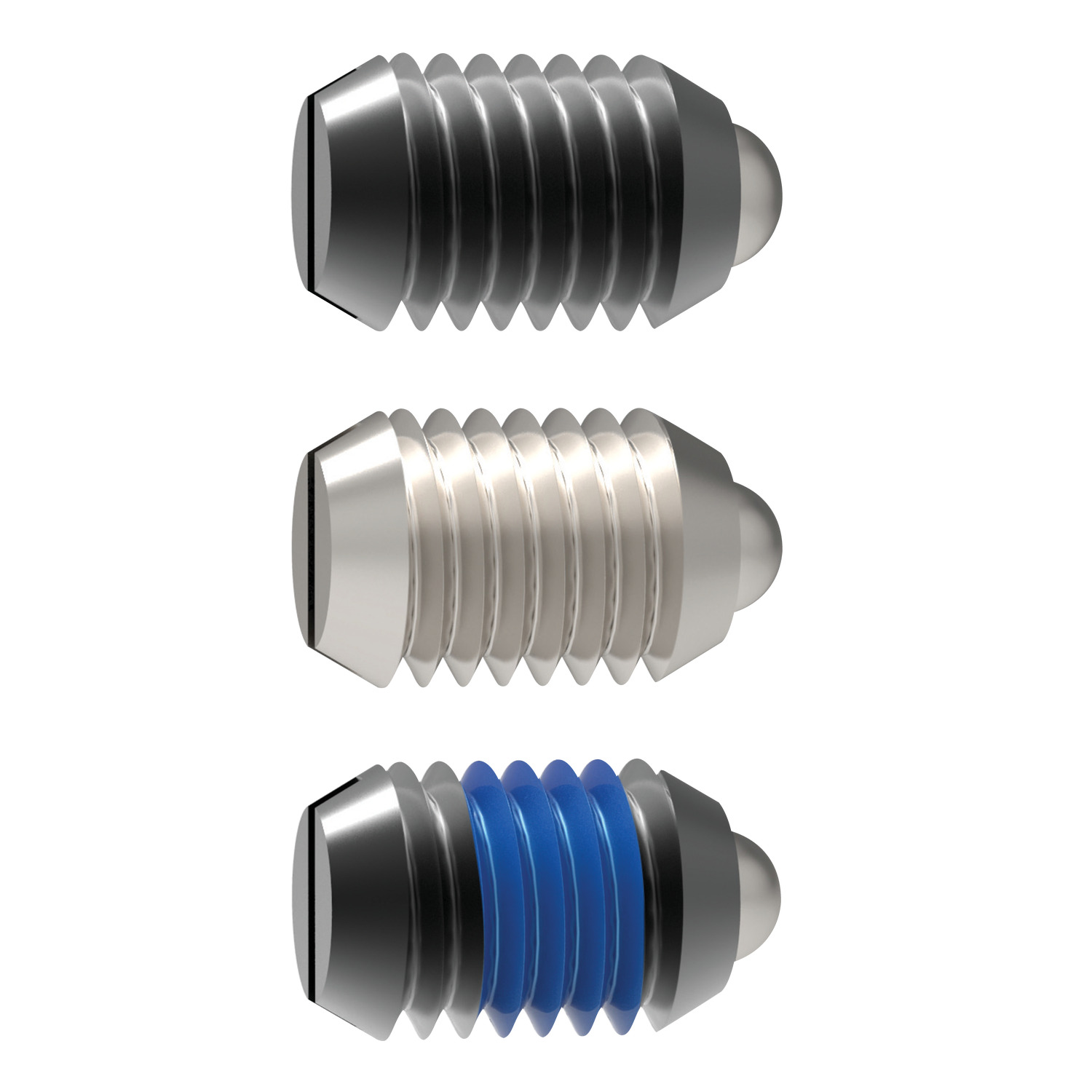

3B100 Spring Plungers - IMPERIAL

with ball and slot, material: Steel or Stainless Steel

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Spring Plungers - Imp.
ball & slot

Spring Plungers - Imp.
round pin & slot

Spring Plungers - Imp.
round pin & hex. socket

Spring Plungers - IMPERIAL w/o Threadlock - Steel - Light - UNF 10-32

3B100.W0010

Type

w/o Threadlock

Finish

Steel

Spring load

Light

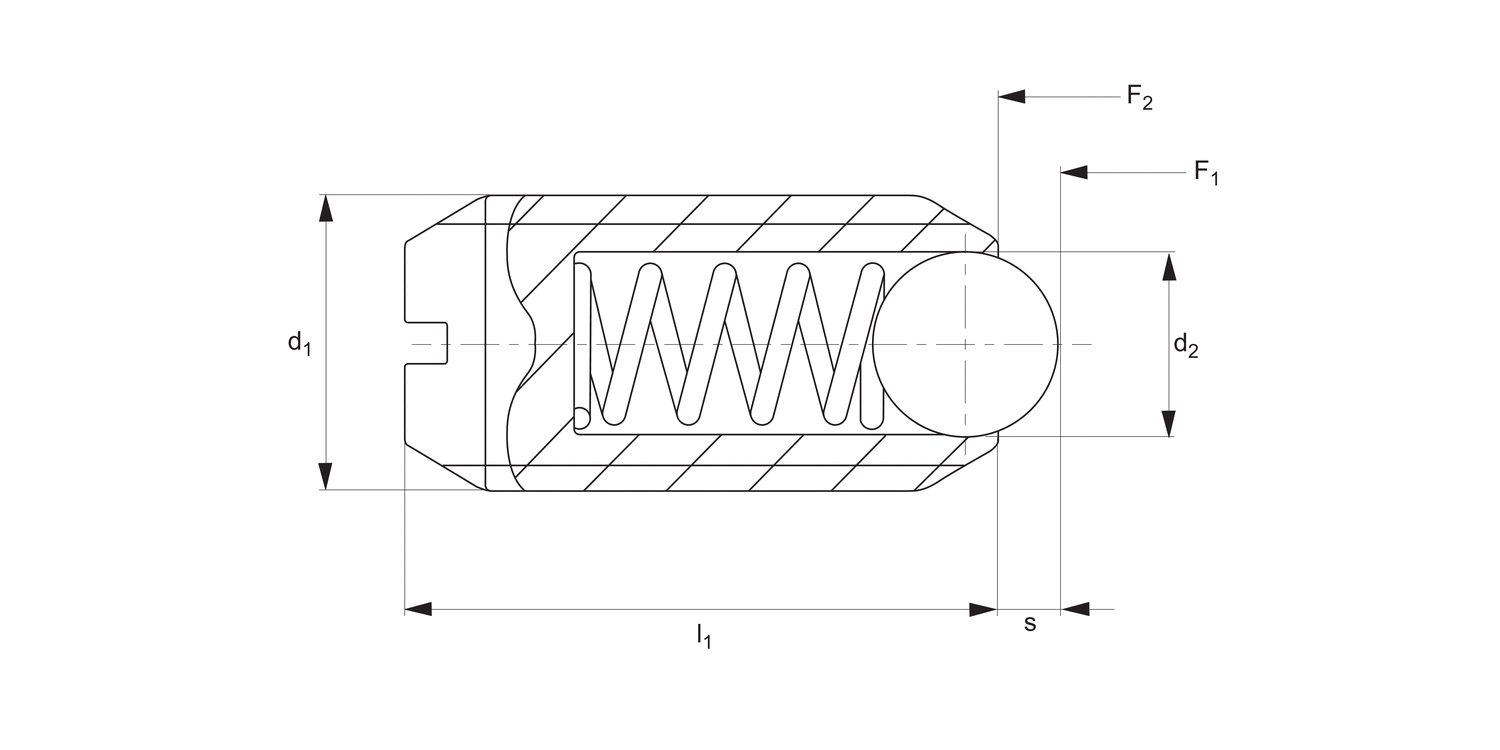

d₁ UNC/UNF

UNF 10-32

l₁ ≈

33/64

s

0.025

d₂

3/32

Spring load f₁ ≈ lb

0.9

Spring load f₂ ≈ lb

1.5

Weight oz

0.049

£ 3.49 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Steel - Light - UNC 5/16-18

3B100.W0016

Type

w/o Threadlock

Finish

Steel

Spring load

Light

d₁ UNC/UNF

UNC 5/16-18

l₁ ≈

37/64

s

0.040

d₂

5/32

Spring load f₁ ≈ lb

2.0

Spring load f₂ ≈ lb

4.6

Weight oz

0.123

£ 3.77 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Steel - Light - UNC 1/2-13

3B100.W0020

Type

w/o Threadlock

Finish

Steel

Spring load

Light

d₁ UNC/UNF

UNC 1/2-13

l₁ ≈

3/4

s

0.072

d₂

9/32

Spring load f₁ ≈ lb

3.0

Spring load f₂ ≈ lb

6.0

Weight oz

0.397

£ 4.38 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Steel - Standard - UNC 6-32

3B100.W0033

Type

w/o Threadlock

Finish

Steel

Spring load

Standard

d₁ UNC/UNF

UNC 6-32

l₁ ≈

5/16

s

0.023

d₂

5/64

Spring load f₁ ≈ lb

0.5

Spring load f₂ ≈ lb

1.0

Weight oz

0.020

£ 4.16 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Steel - Standard - UNF 10-32

3B100.W0040

Type

w/o Threadlock

Finish

Steel

Spring load

Standard

d₁ UNC/UNF

UNF 10-32

l₁ ≈

33/64

s

0.025

d₂

3/32

Spring load f₁ ≈ lb

2.0

Spring load f₂ ≈ lb

3.1

Weight oz

0.049

£ 3.17 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Steel - Heavy - UNC 1/4-20

3B100.W0072

Type

w/o Threadlock

Finish

Steel

Spring load

Heavy

d₁ UNC/UNF

UNC 1/4-20

l₁ ≈

17/32

s

0.035

d₂

1/8

Spring load f₁ ≈ lb

5.6

Spring load f₂ ≈ lb

8.6

Weight oz

0.073

£ 3.49 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Steel - Heavy - UNC 3/8-16

3B100.W0078

Type

w/o Threadlock

Finish

Steel

Spring load

Heavy

d₁ UNC/UNF

UNC 3/8-16

l₁ ≈

5/8

s

0.048

d₂

3/16

Spring load f₁ ≈ lb

7.5

Spring load f₂ ≈ lb

15.1

Weight oz

0.196

£ 3.71 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Stainless - Light - UNF 10-32

3B100.W0110

Type

w/o Threadlock

Finish

Stainless

Spring load

Light

d₁ UNC/UNF

UNF 10-32

l₁ ≈

33/64

s

0.025

d₂

3/32

Spring load f₁ ≈ lb

0.9

Spring load f₂ ≈ lb

1.5

Weight oz

0.048

£ 4.28 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Stainless - Light - UNC 1/4-20

3B100.W0112

Type

w/o Threadlock

Finish

Stainless

Spring load

Light

d₁ UNC/UNF

UNC 1/4-20

l₁ ≈

17/32

s

0.035

d₂

1/8

Spring load f₁ ≈ lb

2.1

Spring load f₂ ≈ lb

4.0

Weight oz

0.071

£ 4.63 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Stainless - Light - UNC 1/2-13

3B100.W0120

Type

w/o Threadlock

Finish

Stainless

Spring load

Light

d₁ UNC/UNF

UNC 1/2-13

l₁ ≈

3/4

s

0.072

d₂

9/32

Spring load f₁ ≈ lb

3.0

Spring load f₂ ≈ lb

6.0

Weight oz

0.397

£ 7.54 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Stainless - Standard - UNF 4-48

3B100.W0131

Type

w/o Threadlock

Finish

Stainless

Spring load

Standard

d₁ UNC/UNF

UNF 4-48

l₁ ≈

3/16

s

0.020

d₂

1/16

Spring load f₁ ≈ lb

0.1

Spring load f₂ ≈ lb

0.5

Weight oz

0.005

£ 4.16 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Stainless - Standard - UNC 5-40

3B100.W0132

Type

w/o Threadlock

Finish

Stainless

Spring load

Standard

d₁ UNC/UNF

UNC 5-40

l₁ ≈

1/4

s

0.020

d₂

1/16

Spring load f₁ ≈ lb

0.3

Spring load f₂ ≈ lb

0.8

Weight oz

0.015

£ 4.16 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Stainless - Standard - UNC 6-32

3B100.W0133

Type

w/o Threadlock

Finish

Stainless

Spring load

Standard

d₁ UNC/UNF

UNC 6-32

l₁ ≈

5/16

s

0.023

d₂

5/64

Spring load f₁ ≈ lb

0.5

Spring load f₂ ≈ lb

1.0

Weight oz

0.018

£ 4.63 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Stainless - Standard - UNF 8-36

3B100.W0138

Type

w/o Threadlock

Finish

Stainless

Spring load

Standard

d₁ UNC/UNF

UNF 8-36

l₁ ≈

11/32

s

0.025

d₂

3/32

Spring load f₁ ≈ lb

0.8

Spring load f₂ ≈ lb

1.3

Weight oz

0.026

£ 4.03 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Stainless - Standard - UNC 1/4-20

3B100.W0142

Type

w/o Threadlock

Finish

Stainless

Spring load

Standard

d₁ UNC/UNF

UNC 1/4-20

l₁ ≈

17/32

s

0.035

d₂

1/8

Spring load f₁ ≈ lb

3.8

Spring load f₂ ≈ lb

6.8

Weight oz

0.072

£ 4.03 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Stainless - Standard - UNC 3/8-16

3B100.W0148

Type

w/o Threadlock

Finish

Stainless

Spring load

Standard

d₁ UNC/UNF

UNC 3/8-16

l₁ ≈

5/8

s

0.048

d₂

3/16

Spring load f₁ ≈ lb

5.0

Spring load f₂ ≈ lb

10.3

Weight oz

0.198

£ 5.80 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Stainless - Standard - UNC 1/2-13

3B100.W0150

Type

w/o Threadlock

Finish

Stainless

Spring load

Standard

d₁ UNC/UNF

UNC 1/2-13

l₁ ≈

3/4

s

0.072

d₂

9/32

Spring load f₁ ≈ lb

6.0

Spring load f₂ ≈ lb

12.0

Weight oz

0.396

£ 7.54 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Stainless - Standard - UNC 5/8-11

3B100.W0152

Type

w/o Threadlock

Finish

Stainless

Spring load

Standard

d₁ UNC/UNF

UNC 5/8-11

l₁ ≈

63/64

s

0.096

d₂

3/8

Spring load f₁ ≈ lb

9.0

Spring load f₂ ≈ lb

18.0

Weight oz

0.813

£ 9.57 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Stainless - Heavy - UNF 10-32

3B100.W0170

Type

w/o Threadlock

Finish

Stainless

Spring load

Heavy

d₁ UNC/UNF

UNF 10-32

l₁ ≈

33/64

s

0.025

d₂

3/32

Spring load f₁ ≈ lb

3.3

Spring load f₂ ≈ lb

4.8

Weight oz

0.046

£ 4.25 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Stainless - Heavy - UNC 3/8-16

3B100.W0178

Type

w/o Threadlock

Finish

Stainless

Spring load

Heavy

d₁ UNC/UNF

UNC 3/8-16

l₁ ≈

5/8

s

0.048

d₂

3/16

Spring load f₁ ≈ lb

7.5

Spring load f₂ ≈ lb

15.1

Weight oz

0.197

£ 6.12 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Stainless - Heavy - UNC 1/2-13

3B100.W0180

Type

w/o Threadlock

Finish

Stainless

Spring load

Heavy

d₁ UNC/UNF

UNC 1/2-13

l₁ ≈

3/4

s

0.072

d₂

9/32

Spring load f₁ ≈ lb

6.0

Spring load f₂ ≈ lb

24.0

Weight oz

0.409

£ 7.54 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Stainless - Heavy - UNC 5/8-11

3B100.W0182

Type

w/o Threadlock

Finish

Stainless

Spring load

Heavy

d₁ UNC/UNF

UNC 5/8-11

l₁ ≈

63/64

s

0.096

d₂

3/8

Spring load f₁ ≈ lb

7.0

Spring load f₂ ≈ lb

40.0

Weight oz

0.825

£ 9.57 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Steel - Light - UNC 1/2-13

3B100.W0220

Type

With Threadlock

Finish

Steel

Spring load

Light

d₁ UNC/UNF

UNC 1/2-13

l₁ ≈

3/4

s

0.072

d₂

9/32

Spring load f₁ ≈ lb

3.0

Spring load f₂ ≈ lb

6.0

Weight oz

0.397

£ 5.14 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Steel - Light - UNC 5/8-11

3B100.W0222

Type

With Threadlock

Finish

Steel

Spring load

Light

d₁ UNC/UNF

UNC 5/8-11

l₁ ≈

63/64

s

0.096

d₂

3/8

Spring load f₁ ≈ lb

4.5

Spring load f₂ ≈ lb

9.0

Weight oz

0.787

£ 6.21 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Steel - Standard - UNC 5-40

3B100.W0232

Type

With Threadlock

Finish

Steel

Spring load

Standard

d₁ UNC/UNF

UNC 5-40

l₁ ≈

1/4

s

0.020

d₂

1/16

Spring load f₁ ≈ lb

0.3

Spring load f₂ ≈ lb

0.8

Weight oz

0.016

£ 4.47 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Steel - Standard - UNC 6-32

3B100.W0233

Type

With Threadlock

Finish

Steel

Spring load

Standard

d₁ UNC/UNF

UNC 6-32

l₁ ≈

5/16

s

0.023

d₂

5/64

Spring load f₁ ≈ lb

0.5

Spring load f₂ ≈ lb

1.0

Weight oz

0.020

£ 4.92 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Steel - Standard - UNF 6-40

3B100.W0235

Type

With Threadlock

Finish

Steel

Spring load

Standard

d₁ UNC/UNF

UNF 6-40

l₁ ≈

5/16

s

0.023

d₂

5/64

Spring load f₁ ≈ lb

0.5

Spring load f₂ ≈ lb

1.0

Weight oz

0.020

£ 4.47 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Steel - Standard - UNC 1/4-20

3B100.W0242

Type

With Threadlock

Finish

Steel

Spring load

Standard

d₁ UNC/UNF

UNC 1/4-20

l₁ ≈

17/32

s

0.035

d₂

1/8

Spring load f₁ ≈ lb

3.8

Spring load f₂ ≈ lb

6.8

Weight oz

0.073

£ 3.84 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Steel - Standard - UNC 5/16-18

3B100.W0246

Type

With Threadlock

Finish

Steel

Spring load

Standard

d₁ UNC/UNF

UNC 5/16-18

l₁ ≈

37/64

s

0.040

d₂

5/32

Spring load f₁ ≈ lb

4.0

Spring load f₂ ≈ lb

8.4

Weight oz

0.123

£ 4.25 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Steel - Standard - UNC 3/8-16

3B100.W0248

Type

With Threadlock

Finish

Steel

Spring load

Standard

d₁ UNC/UNF

UNC 3/8-16

l₁ ≈

5/8

s

0.048

d₂

3/16

Spring load f₁ ≈ lb

5.0

Spring load f₂ ≈ lb

10.3

Weight oz

0.198

£ 4.41 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Steel - Standard - UNC 1/2-13

3B100.W0250

Type

With Threadlock

Finish

Steel

Spring load

Standard

d₁ UNC/UNF

UNC 1/2-13

l₁ ≈

3/4

s

0.072

d₂

9/32

Spring load f₁ ≈ lb

6.0

Spring load f₂ ≈ lb

12.0

Weight oz

0.406

£ 5.14 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Steel - Standard - UNC 5/8-11

3B100.W0252

Type

With Threadlock

Finish

Steel

Spring load

Standard

d₁ UNC/UNF

UNC 5/8-11

l₁ ≈

63/64

s

0.096

d₂

3/8

Spring load f₁ ≈ lb

9.0

Spring load f₂ ≈ lb

18.0

Weight oz

0.811

£ 6.21 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Steel - Heavy - UNC 5/16-18

3B100.W0276

Type

With Threadlock

Finish

Steel

Spring load

Heavy

d₁ UNC/UNF

UNC 5/16-18

l₁ ≈

37/64

s

0.040

d₂

5/32

Spring load f₁ ≈ lb

6.0

Spring load f₂ ≈ lb

11.1

Weight oz

0.122

£ 4.47 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Steel - Heavy - UNC 3/8-16

3B100.W0278

Type

With Threadlock

Finish

Steel

Spring load

Heavy

d₁ UNC/UNF

UNC 3/8-16

l₁ ≈

5/8

s

0.048

d₂

3/16

Spring load f₁ ≈ lb

7.5

Spring load f₂ ≈ lb

15.1

Weight oz

0.196

£ 4.47 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Steel - Heavy - UNC 1/2-13

3B100.W0280

Type

With Threadlock

Finish

Steel

Spring load

Heavy

d₁ UNC/UNF

UNC 1/2-13

l₁ ≈

3/4

s

0.072

d₂

9/32

Spring load f₁ ≈ lb

6.0

Spring load f₂ ≈ lb

24.0

Weight oz

0.408

£ 5.14 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Stainless - Light - UNF 10-32

3B100.W0310

Type

With Threadlock

Finish

Stainless

Spring load

Light

d₁ UNC/UNF

UNF 10-32

l₁ ≈

33/64

s

0.025

d₂

3/32

Spring load f₁ ≈ lb

0.9

Spring load f₂ ≈ lb

1.5

Weight oz

0.048

£ 5.04 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Stainless - Light - UNC 5/8-11

3B100.W0322

Type

With Threadlock

Finish

Stainless

Spring load

Light

d₁ UNC/UNF

UNC 5/8-11

l₁ ≈

63/64

s

0.096

d₂

3/8

Spring load f₁ ≈ lb

4.5

Spring load f₂ ≈ lb

9.0

Weight oz

0.790

£ 10.36 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Stainless - Standard - UNF 8-36

3B100.W0338

Type

With Threadlock

Finish

Stainless

Spring load

Standard

d₁ UNC/UNF

UNF 8-36

l₁ ≈

11/32

s

0.025

d₂

3/32

Spring load f₁ ≈ lb

0.8

Spring load f₂ ≈ lb

1.3

Weight oz

0.026

£ 4.73 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Stainless - Standard - UNC 3/8-16

3B100.W0348

Type

With Threadlock

Finish

Stainless

Spring load

Standard

d₁ UNC/UNF

UNC 3/8-16

l₁ ≈

5/8

s

0.048

d₂

3/16

Spring load f₁ ≈ lb

5.0

Spring load f₂ ≈ lb

10.3

Weight oz

0.198

£ 6.50 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Stainless - Standard - UNC 1/2-13

3B100.W0350

Type

With Threadlock

Finish

Stainless

Spring load

Standard

d₁ UNC/UNF

UNC 1/2-13

l₁ ≈

3/4

s

0.072

d₂

9/32

Spring load f₁ ≈ lb

6.0

Spring load f₂ ≈ lb

12.0

Weight oz

0.396

£ 8.31 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Stainless - Heavy - UNF 10-32

3B100.W0370

Type

With Threadlock

Finish

Stainless

Spring load

Heavy

d₁ UNC/UNF

UNF 10-32

l₁ ≈

33/64

s

0.025

d₂

3/32

Spring load f₁ ≈ lb

3.3

Spring load f₂ ≈ lb

4.8

Weight oz

0.046

£ 4.98 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Stainless - Heavy - UNC 3/8-16

3B100.W0378

Type

With Threadlock

Finish

Stainless

Spring load

Heavy

d₁ UNC/UNF

UNC 3/8-16

l₁ ≈

5/8

s

0.048

d₂

3/16

Spring load f₁ ≈ lb

7.5

Spring load f₂ ≈ lb

15.1

Weight oz

0.197

£ 6.88 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Steel - Light - UNF 10-32

3B100.W0010

Type

w/o Threadlock

Finish

Steel

Spring load

Light

d₁ UNC/UNF

UNF 10-32

l₁ ≈

33/64

s

0.025

d₂

3/32

Spring load f₁ ≈ lb

0.9

Spring load f₂ ≈ lb

1.5

Weight oz

0.049

£ 3.49 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Steel - Light - UNC 5/16-18

3B100.W0016

Type

w/o Threadlock

Finish

Steel

Spring load

Light

d₁ UNC/UNF

UNC 5/16-18

l₁ ≈

37/64

s

0.040

d₂

5/32

Spring load f₁ ≈ lb

2.0

Spring load f₂ ≈ lb

4.6

Weight oz

0.123

£ 3.77 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Steel - Light - UNC 1/2-13

3B100.W0020

Type

w/o Threadlock

Finish

Steel

Spring load

Light

d₁ UNC/UNF

UNC 1/2-13

l₁ ≈

3/4

s

0.072

d₂

9/32

Spring load f₁ ≈ lb

3.0

Spring load f₂ ≈ lb

6.0

Weight oz

0.397

£ 4.38 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Steel - Standard - UNC 6-32

3B100.W0033

Type

w/o Threadlock

Finish

Steel

Spring load

Standard

d₁ UNC/UNF

UNC 6-32

l₁ ≈

5/16

s

0.023

d₂

5/64

Spring load f₁ ≈ lb

0.5

Spring load f₂ ≈ lb

1.0

Weight oz

0.020

£ 4.16 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Steel - Standard - UNF 10-32

3B100.W0040

Type

w/o Threadlock

Finish

Steel

Spring load

Standard

d₁ UNC/UNF

UNF 10-32

l₁ ≈

33/64

s

0.025

d₂

3/32

Spring load f₁ ≈ lb

2.0

Spring load f₂ ≈ lb

3.1

Weight oz

0.049

£ 3.17 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Steel - Heavy - UNC 1/4-20

3B100.W0072

Type

w/o Threadlock

Finish

Steel

Spring load

Heavy

d₁ UNC/UNF

UNC 1/4-20

l₁ ≈

17/32

s

0.035

d₂

1/8

Spring load f₁ ≈ lb

5.6

Spring load f₂ ≈ lb

8.6

Weight oz

0.073

£ 3.49 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Steel - Heavy - UNC 3/8-16

3B100.W0078

Type

w/o Threadlock

Finish

Steel

Spring load

Heavy

d₁ UNC/UNF

UNC 3/8-16

l₁ ≈

5/8

s

0.048

d₂

3/16

Spring load f₁ ≈ lb

7.5

Spring load f₂ ≈ lb

15.1

Weight oz

0.196

£ 3.71 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Stainless - Light - UNF 10-32

3B100.W0110

Type

w/o Threadlock

Finish

Stainless

Spring load

Light

d₁ UNC/UNF

UNF 10-32

l₁ ≈

33/64

s

0.025

d₂

3/32

Spring load f₁ ≈ lb

0.9

Spring load f₂ ≈ lb

1.5

Weight oz

0.048

£ 4.28 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Stainless - Light - UNC 1/4-20

3B100.W0112

Type

w/o Threadlock

Finish

Stainless

Spring load

Light

d₁ UNC/UNF

UNC 1/4-20

l₁ ≈

17/32

s

0.035

d₂

1/8

Spring load f₁ ≈ lb

2.1

Spring load f₂ ≈ lb

4.0

Weight oz

0.071

£ 4.63 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Stainless - Light - UNC 1/2-13

3B100.W0120

Type

w/o Threadlock

Finish

Stainless

Spring load

Light

d₁ UNC/UNF

UNC 1/2-13

l₁ ≈

3/4

s

0.072

d₂

9/32

Spring load f₁ ≈ lb

3.0

Spring load f₂ ≈ lb

6.0

Weight oz

0.397

£ 7.54 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Stainless - Standard - UNF 4-48

3B100.W0131

Type

w/o Threadlock

Finish

Stainless

Spring load

Standard

d₁ UNC/UNF

UNF 4-48

l₁ ≈

3/16

s

0.020

d₂

1/16

Spring load f₁ ≈ lb

0.1

Spring load f₂ ≈ lb

0.5

Weight oz

0.005

£ 4.16 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Stainless - Standard - UNC 5-40

3B100.W0132

Type

w/o Threadlock

Finish

Stainless

Spring load

Standard

d₁ UNC/UNF

UNC 5-40

l₁ ≈

1/4

s

0.020

d₂

1/16

Spring load f₁ ≈ lb

0.3

Spring load f₂ ≈ lb

0.8

Weight oz

0.015

£ 4.16 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Stainless - Standard - UNC 6-32

3B100.W0133

Type

w/o Threadlock

Finish

Stainless

Spring load

Standard

d₁ UNC/UNF

UNC 6-32

l₁ ≈

5/16

s

0.023

d₂

5/64

Spring load f₁ ≈ lb

0.5

Spring load f₂ ≈ lb

1.0

Weight oz

0.018

£ 4.63 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Stainless - Standard - UNF 8-36

3B100.W0138

Type

w/o Threadlock

Finish

Stainless

Spring load

Standard

d₁ UNC/UNF

UNF 8-36

l₁ ≈

11/32

s

0.025

d₂

3/32

Spring load f₁ ≈ lb

0.8

Spring load f₂ ≈ lb

1.3

Weight oz

0.026

£ 4.03 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Stainless - Standard - UNC 1/4-20

3B100.W0142

Type

w/o Threadlock

Finish

Stainless

Spring load

Standard

d₁ UNC/UNF

UNC 1/4-20

l₁ ≈

17/32

s

0.035

d₂

1/8

Spring load f₁ ≈ lb

3.8

Spring load f₂ ≈ lb

6.8

Weight oz

0.072

£ 4.03 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Stainless - Standard - UNC 3/8-16

3B100.W0148

Type

w/o Threadlock

Finish

Stainless

Spring load

Standard

d₁ UNC/UNF

UNC 3/8-16

l₁ ≈

5/8

s

0.048

d₂

3/16

Spring load f₁ ≈ lb

5.0

Spring load f₂ ≈ lb

10.3

Weight oz

0.198

£ 5.80 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Stainless - Standard - UNC 1/2-13

3B100.W0150

Type

w/o Threadlock

Finish

Stainless

Spring load

Standard

d₁ UNC/UNF

UNC 1/2-13

l₁ ≈

3/4

s

0.072

d₂

9/32

Spring load f₁ ≈ lb

6.0

Spring load f₂ ≈ lb

12.0

Weight oz

0.396

£ 7.54 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Stainless - Standard - UNC 5/8-11

3B100.W0152

Type

w/o Threadlock

Finish

Stainless

Spring load

Standard

d₁ UNC/UNF

UNC 5/8-11

l₁ ≈

63/64

s

0.096

d₂

3/8

Spring load f₁ ≈ lb

9.0

Spring load f₂ ≈ lb

18.0

Weight oz

0.813

£ 9.57 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Stainless - Heavy - UNF 10-32

3B100.W0170

Type

w/o Threadlock

Finish

Stainless

Spring load

Heavy

d₁ UNC/UNF

UNF 10-32

l₁ ≈

33/64

s

0.025

d₂

3/32

Spring load f₁ ≈ lb

3.3

Spring load f₂ ≈ lb

4.8

Weight oz

0.046

£ 4.25 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Stainless - Heavy - UNC 3/8-16

3B100.W0178

Type

w/o Threadlock

Finish

Stainless

Spring load

Heavy

d₁ UNC/UNF

UNC 3/8-16

l₁ ≈

5/8

s

0.048

d₂

3/16

Spring load f₁ ≈ lb

7.5

Spring load f₂ ≈ lb

15.1

Weight oz

0.197

£ 6.12 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Stainless - Heavy - UNC 1/2-13

3B100.W0180

Type

w/o Threadlock

Finish

Stainless

Spring load

Heavy

d₁ UNC/UNF

UNC 1/2-13

l₁ ≈

3/4

s

0.072

d₂

9/32

Spring load f₁ ≈ lb

6.0

Spring load f₂ ≈ lb

24.0

Weight oz

0.409

£ 7.54 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL w/o Threadlock - Stainless - Heavy - UNC 5/8-11

3B100.W0182

Type

w/o Threadlock

Finish

Stainless

Spring load

Heavy

d₁ UNC/UNF

UNC 5/8-11

l₁ ≈

63/64

s

0.096

d₂

3/8

Spring load f₁ ≈ lb

7.0

Spring load f₂ ≈ lb

40.0

Weight oz

0.825

£ 9.57 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Steel - Light - UNC 1/2-13

3B100.W0220

Type

With Threadlock

Finish

Steel

Spring load

Light

d₁ UNC/UNF

UNC 1/2-13

l₁ ≈

3/4

s

0.072

d₂

9/32

Spring load f₁ ≈ lb

3.0

Spring load f₂ ≈ lb

6.0

Weight oz

0.397

£ 5.14 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Steel - Light - UNC 5/8-11

3B100.W0222

Type

With Threadlock

Finish

Steel

Spring load

Light

d₁ UNC/UNF

UNC 5/8-11

l₁ ≈

63/64

s

0.096

d₂

3/8

Spring load f₁ ≈ lb

4.5

Spring load f₂ ≈ lb

9.0

Weight oz

0.787

£ 6.21 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Steel - Standard - UNC 5-40

3B100.W0232

Type

With Threadlock

Finish

Steel

Spring load

Standard

d₁ UNC/UNF

UNC 5-40

l₁ ≈

1/4

s

0.020

d₂

1/16

Spring load f₁ ≈ lb

0.3

Spring load f₂ ≈ lb

0.8

Weight oz

0.016

£ 4.47 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Steel - Standard - UNC 6-32

3B100.W0233

Type

With Threadlock

Finish

Steel

Spring load

Standard

d₁ UNC/UNF

UNC 6-32

l₁ ≈

5/16

s

0.023

d₂

5/64

Spring load f₁ ≈ lb

0.5

Spring load f₂ ≈ lb

1.0

Weight oz

0.020

£ 4.92 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Steel - Standard - UNF 6-40

3B100.W0235

Type

With Threadlock

Finish

Steel

Spring load

Standard

d₁ UNC/UNF

UNF 6-40

l₁ ≈

5/16

s

0.023

d₂

5/64

Spring load f₁ ≈ lb

0.5

Spring load f₂ ≈ lb

1.0

Weight oz

0.020

£ 4.47 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Steel - Standard - UNC 1/4-20

3B100.W0242

Type

With Threadlock

Finish

Steel

Spring load

Standard

d₁ UNC/UNF

UNC 1/4-20

l₁ ≈

17/32

s

0.035

d₂

1/8

Spring load f₁ ≈ lb

3.8

Spring load f₂ ≈ lb

6.8

Weight oz

0.073

£ 3.84 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Steel - Standard - UNC 5/16-18

3B100.W0246

Type

With Threadlock

Finish

Steel

Spring load

Standard

d₁ UNC/UNF

UNC 5/16-18

l₁ ≈

37/64

s

0.040

d₂

5/32

Spring load f₁ ≈ lb

4.0

Spring load f₂ ≈ lb

8.4

Weight oz

0.123

£ 4.25 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Steel - Standard - UNC 3/8-16

3B100.W0248

Type

With Threadlock

Finish

Steel

Spring load

Standard

d₁ UNC/UNF

UNC 3/8-16

l₁ ≈

5/8

s

0.048

d₂

3/16

Spring load f₁ ≈ lb

5.0

Spring load f₂ ≈ lb

10.3

Weight oz

0.198

£ 4.41 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Steel - Standard - UNC 1/2-13

3B100.W0250

Type

With Threadlock

Finish

Steel

Spring load

Standard

d₁ UNC/UNF

UNC 1/2-13

l₁ ≈

3/4

s

0.072

d₂

9/32

Spring load f₁ ≈ lb

6.0

Spring load f₂ ≈ lb

12.0

Weight oz

0.406

£ 5.14 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Steel - Standard - UNC 5/8-11

3B100.W0252

Type

With Threadlock

Finish

Steel

Spring load

Standard

d₁ UNC/UNF

UNC 5/8-11

l₁ ≈

63/64

s

0.096

d₂

3/8

Spring load f₁ ≈ lb

9.0

Spring load f₂ ≈ lb

18.0

Weight oz

0.811

£ 6.21 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Steel - Heavy - UNC 5/16-18

3B100.W0276

Type

With Threadlock

Finish

Steel

Spring load

Heavy

d₁ UNC/UNF

UNC 5/16-18

l₁ ≈

37/64

s

0.040

d₂

5/32

Spring load f₁ ≈ lb

6.0

Spring load f₂ ≈ lb

11.1

Weight oz

0.122

£ 4.47 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Steel - Heavy - UNC 3/8-16

3B100.W0278

Type

With Threadlock

Finish

Steel

Spring load

Heavy

d₁ UNC/UNF

UNC 3/8-16

l₁ ≈

5/8

s

0.048

d₂

3/16

Spring load f₁ ≈ lb

7.5

Spring load f₂ ≈ lb

15.1

Weight oz

0.196

£ 4.47 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Steel - Heavy - UNC 1/2-13

3B100.W0280

Type

With Threadlock

Finish

Steel

Spring load

Heavy

d₁ UNC/UNF

UNC 1/2-13

l₁ ≈

3/4

s

0.072

d₂

9/32

Spring load f₁ ≈ lb

6.0

Spring load f₂ ≈ lb

24.0

Weight oz

0.408

£ 5.14 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Stainless - Light - UNF 10-32

3B100.W0310

Type

With Threadlock

Finish

Stainless

Spring load

Light

d₁ UNC/UNF

UNF 10-32

l₁ ≈

33/64

s

0.025

d₂

3/32

Spring load f₁ ≈ lb

0.9

Spring load f₂ ≈ lb

1.5

Weight oz

0.048

£ 5.04 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Stainless - Light - UNC 5/8-11

3B100.W0322

Type

With Threadlock

Finish

Stainless

Spring load

Light

d₁ UNC/UNF

UNC 5/8-11

l₁ ≈

63/64

s

0.096

d₂

3/8

Spring load f₁ ≈ lb

4.5

Spring load f₂ ≈ lb

9.0

Weight oz

0.790

£ 10.36 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Stainless - Standard - UNF 8-36

3B100.W0338

Type

With Threadlock

Finish

Stainless

Spring load

Standard

d₁ UNC/UNF

UNF 8-36

l₁ ≈

11/32

s

0.025

d₂

3/32

Spring load f₁ ≈ lb

0.8

Spring load f₂ ≈ lb

1.3

Weight oz

0.026

£ 4.73 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Stainless - Standard - UNC 3/8-16

3B100.W0348

Type

With Threadlock

Finish

Stainless

Spring load

Standard

d₁ UNC/UNF

UNC 3/8-16

l₁ ≈

5/8

s

0.048

d₂

3/16

Spring load f₁ ≈ lb

5.0

Spring load f₂ ≈ lb

10.3

Weight oz

0.198

£ 6.50 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Stainless - Standard - UNC 1/2-13

3B100.W0350

Type

With Threadlock

Finish

Stainless

Spring load

Standard

d₁ UNC/UNF

UNC 1/2-13

l₁ ≈

3/4

s

0.072

d₂

9/32

Spring load f₁ ≈ lb

6.0

Spring load f₂ ≈ lb

12.0

Weight oz

0.396

£ 8.31 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Stainless - Heavy - UNF 10-32

3B100.W0370

Type

With Threadlock

Finish

Stainless

Spring load

Heavy

d₁ UNC/UNF

UNF 10-32

l₁ ≈

33/64

s

0.025

d₂

3/32

Spring load f₁ ≈ lb

3.3

Spring load f₂ ≈ lb

4.8

Weight oz

0.046

£ 4.98 per unit (click for quantity discounts)

Spring Plungers - IMPERIAL With Threadlock - Stainless - Heavy - UNC 3/8-16

3B100.W0378

Type

With Threadlock

Finish

Stainless

Spring load

Heavy

d₁ UNC/UNF

UNC 3/8-16

l₁ ≈

5/8

s

0.048

d₂

3/16

Spring load f₁ ≈ lb

7.5

Spring load f₂ ≈ lb

15.1

Weight oz

0.197

£ 6.88 per unit (click for quantity discounts)



Select all

Type

Finish

Spring load

d₁ UNC/UNF

l₁ ≈

s

d₂

Spring load f₁ ≈ lb

Spring load f₂ ≈ lb

Weight oz

Price & Availability	Article	Type	Finish	Spring load	d1 UNC/UNF	l1 ≈	s	d2	Spring load f1 ≈ lb	Spring load f2 ≈ lb	Weight oz
	3B100.W0010	w/o Threadlock	Steel	Light	UNF 10-32	33/64	0.025	3/32	0.9	1.5	0.049
£ 3.49 per unit (click for quantity discounts) Ready to despatch 9 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 3.49 0% 10-19 £ 3.14 10% 20-49 £ 2.97 15% 50-99 £ 2.79 20% 100+ £ 2.62 25% Type w/o Threadlock Finish Steel Spring load Light d1 UNC/UNF UNF 10-32 l1 ≈ 33/64 s 0.025 d2 3/32 Spring load f1 ≈ lb 0.9 Spring load f2 ≈ lb 1.5 Weight oz 0.049 more info »
	3B100.W0016	w/o Threadlock	Steel	Light	UNC 5/16-18	37/64	0.040	5/32	2.0	4.6	0.123
£ 3.77 per unit (click for quantity discounts) Ready to despatch 8 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 3.77 0% 10-19 £ 3.39 10% 20-49 £ 3.20 15% 50-99 £ 3.02 20% 100+ £ 2.83 25% Type w/o Threadlock Finish Steel Spring load Light d1 UNC/UNF UNC 5/16-18 l1 ≈ 37/64 s 0.040 d2 5/32 Spring load f1 ≈ lb 2.0 Spring load f2 ≈ lb 4.6 Weight oz 0.123 more info »
	3B100.W0020	w/o Threadlock	Steel	Light	UNC 1/2-13	3/4	0.072	9/32	3.0	6.0	0.397
£ 4.38 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 4.38 0% 10-19 £ 3.94 10% 20-49 £ 3.72 15% 50-99 £ 3.50 20% 100+ £ 3.29 25% Type w/o Threadlock Finish Steel Spring load Light d1 UNC/UNF UNC 1/2-13 l1 ≈ 3/4 s 0.072 d2 9/32 Spring load f1 ≈ lb 3.0 Spring load f2 ≈ lb 6.0 Weight oz 0.397 more info »
	3B100.W0033	w/o Threadlock	Steel	Standard	UNC 6-32	5/16	0.023	5/64	0.5	1.0	0.020
£ 4.16 per unit (click for quantity discounts) Ready to despatch 8 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 4.16 0% 10-19 £ 3.74 10% 20-49 £ 3.54 15% 50-99 £ 3.33 20% 100+ £ 3.12 25% Type w/o Threadlock Finish Steel Spring load Standard d1 UNC/UNF UNC 6-32 l1 ≈ 5/16 s 0.023 d2 5/64 Spring load f1 ≈ lb 0.5 Spring load f2 ≈ lb 1.0 Weight oz 0.020 more info »
	3B100.W0040	w/o Threadlock	Steel	Standard	UNF 10-32	33/64	0.025	3/32	2.0	3.1	0.049
£ 3.17 per unit (click for quantity discounts) Ready to despatch 8 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 3.17 0% 10-19 £ 2.85 10% 20-49 £ 2.69 15% 50-99 £ 2.54 20% 100+ £ 2.38 25% Type w/o Threadlock Finish Steel Spring load Standard d1 UNC/UNF UNF 10-32 l1 ≈ 33/64 s 0.025 d2 3/32 Spring load f1 ≈ lb 2.0 Spring load f2 ≈ lb 3.1 Weight oz 0.049 more info »
	3B100.W0072	w/o Threadlock	Steel	Heavy	UNC 1/4-20	17/32	0.035	1/8	5.6	8.6	0.073
£ 3.49 per unit (click for quantity discounts) Ready to despatch 75 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 3.49 0% 10-19 £ 3.14 10% 20-49 £ 2.97 15% 50-99 £ 2.79 20% 100+ £ 2.62 25% Type w/o Threadlock Finish Steel Spring load Heavy d1 UNC/UNF UNC 1/4-20 l1 ≈ 17/32 s 0.035 d2 1/8 Spring load f1 ≈ lb 5.6 Spring load f2 ≈ lb 8.6 Weight oz 0.073 more info »
	3B100.W0078	w/o Threadlock	Steel	Heavy	UNC 3/8-16	5/8	0.048	3/16	7.5	15.1	0.196
£ 3.71 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 3.71 0% 10-19 £ 3.34 10% 20-49 £ 3.15 15% 50-99 £ 2.97 20% 100+ £ 2.78 25% Type w/o Threadlock Finish Steel Spring load Heavy d1 UNC/UNF UNC 3/8-16 l1 ≈ 5/8 s 0.048 d2 3/16 Spring load f1 ≈ lb 7.5 Spring load f2 ≈ lb 15.1 Weight oz 0.196 more info »
	3B100.W0110	w/o Threadlock	Stainless	Light	UNF 10-32	33/64	0.025	3/32	0.9	1.5	0.048
£ 4.28 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 4.28 0% 10-19 £ 3.85 10% 20-49 £ 3.64 15% 50-99 £ 3.42 20% 100+ £ 3.21 25% Type w/o Threadlock Finish Stainless Spring load Light d1 UNC/UNF UNF 10-32 l1 ≈ 33/64 s 0.025 d2 3/32 Spring load f1 ≈ lb 0.9 Spring load f2 ≈ lb 1.5 Weight oz 0.048 more info »
	3B100.W0112	w/o Threadlock	Stainless	Light	UNC 1/4-20	17/32	0.035	1/8	2.1	4.0	0.071
£ 4.63 per unit (click for quantity discounts) Ready to despatch 108 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 4.63 0% 10-19 £ 4.17 10% 20-49 £ 3.94 15% 50-99 £ 3.70 20% 100+ £ 3.47 25% Type w/o Threadlock Finish Stainless Spring load Light d1 UNC/UNF UNC 1/4-20 l1 ≈ 17/32 s 0.035 d2 1/8 Spring load f1 ≈ lb 2.1 Spring load f2 ≈ lb 4.0 Weight oz 0.071 more info »
	3B100.W0120	w/o Threadlock	Stainless	Light	UNC 1/2-13	3/4	0.072	9/32	3.0	6.0	0.397
£ 7.54 per unit (click for quantity discounts) Ready to despatch 9 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 7.54 0% 10-19 £ 6.79 10% 20-49 £ 6.41 15% 50-99 £ 6.03 20% 100+ £ 5.66 25% Type w/o Threadlock Finish Stainless Spring load Light d1 UNC/UNF UNC 1/2-13 l1 ≈ 3/4 s 0.072 d2 9/32 Spring load f1 ≈ lb 3.0 Spring load f2 ≈ lb 6.0 Weight oz 0.397 more info »
	3B100.W0131	w/o Threadlock	Stainless	Standard	UNF 4-48	3/16	0.020	1/16	0.1	0.5	0.005
£ 4.16 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 4.16 0% 10-19 £ 3.74 10% 20-49 £ 3.54 15% 50-99 £ 3.33 20% 100+ £ 3.12 25% Type w/o Threadlock Finish Stainless Spring load Standard d1 UNC/UNF UNF 4-48 l1 ≈ 3/16 s 0.020 d2 1/16 Spring load f1 ≈ lb 0.1 Spring load f2 ≈ lb 0.5 Weight oz 0.005 more info »
	3B100.W0132	w/o Threadlock	Stainless	Standard	UNC 5-40	1/4	0.020	1/16	0.3	0.8	0.015
£ 4.16 per unit (click for quantity discounts) Ready to despatch 16 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 4.16 0% 10-19 £ 3.74 10% 20-49 £ 3.54 15% 50-99 £ 3.33 20% 100+ £ 3.12 25% Type w/o Threadlock Finish Stainless Spring load Standard d1 UNC/UNF UNC 5-40 l1 ≈ 1/4 s 0.020 d2 1/16 Spring load f1 ≈ lb 0.3 Spring load f2 ≈ lb 0.8 Weight oz 0.015 more info »
	3B100.W0133	w/o Threadlock	Stainless	Standard	UNC 6-32	5/16	0.023	5/64	0.5	1.0	0.018
£ 4.63 per unit (click for quantity discounts) Ready to despatch 49 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 4.63 0% 10-19 £ 4.17 10% 20-49 £ 3.94 15% 50-99 £ 3.70 20% 100+ £ 3.47 25% Type w/o Threadlock Finish Stainless Spring load Standard d1 UNC/UNF UNC 6-32 l1 ≈ 5/16 s 0.023 d2 5/64 Spring load f1 ≈ lb 0.5 Spring load f2 ≈ lb 1.0 Weight oz 0.018 more info »
	3B100.W0138	w/o Threadlock	Stainless	Standard	UNF 8-36	11/32	0.025	3/32	0.8	1.3	0.026
£ 4.03 per unit (click for quantity discounts) Ready to despatch 30 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 4.03 0% 10-19 £ 3.63 10% 20-49 £ 3.43 15% 50-99 £ 3.22 20% 100+ £ 3.02 25% Type w/o Threadlock Finish Stainless Spring load Standard d1 UNC/UNF UNF 8-36 l1 ≈ 11/32 s 0.025 d2 3/32 Spring load f1 ≈ lb 0.8 Spring load f2 ≈ lb 1.3 Weight oz 0.026 more info »
	3B100.W0142	w/o Threadlock	Stainless	Standard	UNC 1/4-20	17/32	0.035	1/8	3.8	6.8	0.072
£ 4.03 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 4.03 0% 10-19 £ 3.63 10% 20-49 £ 3.43 15% 50-99 £ 3.22 20% 100+ £ 3.02 25% Type w/o Threadlock Finish Stainless Spring load Standard d1 UNC/UNF UNC 1/4-20 l1 ≈ 17/32 s 0.035 d2 1/8 Spring load f1 ≈ lb 3.8 Spring load f2 ≈ lb 6.8 Weight oz 0.072 more info »
	3B100.W0148	w/o Threadlock	Stainless	Standard	UNC 3/8-16	5/8	0.048	3/16	5.0	10.3	0.198
£ 5.80 per unit (click for quantity discounts) Ready to despatch 9 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 5.80 0% 10-19 £ 5.22 10% 20-49 £ 4.93 15% 50-99 £ 4.64 20% 100+ £ 4.35 25% Type w/o Threadlock Finish Stainless Spring load Standard d1 UNC/UNF UNC 3/8-16 l1 ≈ 5/8 s 0.048 d2 3/16 Spring load f1 ≈ lb 5.0 Spring load f2 ≈ lb 10.3 Weight oz 0.198 more info »
	3B100.W0150	w/o Threadlock	Stainless	Standard	UNC 1/2-13	3/4	0.072	9/32	6.0	12.0	0.396
£ 7.54 per unit (click for quantity discounts) Ready to despatch 7 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 7.54 0% 10-19 £ 6.79 10% 20-49 £ 6.41 15% 50-99 £ 6.03 20% 100+ £ 5.66 25% Type w/o Threadlock Finish Stainless Spring load Standard d1 UNC/UNF UNC 1/2-13 l1 ≈ 3/4 s 0.072 d2 9/32 Spring load f1 ≈ lb 6.0 Spring load f2 ≈ lb 12.0 Weight oz 0.396 more info »
	3B100.W0152	w/o Threadlock	Stainless	Standard	UNC 5/8-11	63/64	0.096	3/8	9.0	18.0	0.813
£ 9.57 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 9.57 0% 10-19 £ 8.61 10% 20-49 £ 8.13 15% 50-99 £ 7.66 20% 100+ £ 7.18 25% Type w/o Threadlock Finish Stainless Spring load Standard d1 UNC/UNF UNC 5/8-11 l1 ≈ 63/64 s 0.096 d2 3/8 Spring load f1 ≈ lb 9.0 Spring load f2 ≈ lb 18.0 Weight oz 0.813 more info »
	3B100.W0170	w/o Threadlock	Stainless	Heavy	UNF 10-32	33/64	0.025	3/32	3.3	4.8	0.046
£ 4.25 per unit (click for quantity discounts) Ready to despatch 6 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 4.25 0% 10-19 £ 3.83 10% 20-49 £ 3.61 15% 50-99 £ 3.40 20% 100+ £ 3.19 25% Type w/o Threadlock Finish Stainless Spring load Heavy d1 UNC/UNF UNF 10-32 l1 ≈ 33/64 s 0.025 d2 3/32 Spring load f1 ≈ lb 3.3 Spring load f2 ≈ lb 4.8 Weight oz 0.046 more info »
	3B100.W0178	w/o Threadlock	Stainless	Heavy	UNC 3/8-16	5/8	0.048	3/16	7.5	15.1	0.197
£ 6.12 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 6.12 0% 10-19 £ 5.51 10% 20-49 £ 5.20 15% 50-99 £ 4.90 20% 100+ £ 4.59 25% Type w/o Threadlock Finish Stainless Spring load Heavy d1 UNC/UNF UNC 3/8-16 l1 ≈ 5/8 s 0.048 d2 3/16 Spring load f1 ≈ lb 7.5 Spring load f2 ≈ lb 15.1 Weight oz 0.197 more info »
	3B100.W0180	w/o Threadlock	Stainless	Heavy	UNC 1/2-13	3/4	0.072	9/32	6.0	24.0	0.409
£ 7.54 per unit (click for quantity discounts) Ready to despatch 7 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 7.54 0% 10-19 £ 6.79 10% 20-49 £ 6.41 15% 50-99 £ 6.03 20% 100+ £ 5.66 25% Type w/o Threadlock Finish Stainless Spring load Heavy d1 UNC/UNF UNC 1/2-13 l1 ≈ 3/4 s 0.072 d2 9/32 Spring load f1 ≈ lb 6.0 Spring load f2 ≈ lb 24.0 Weight oz 0.409 more info »
	3B100.W0182	w/o Threadlock	Stainless	Heavy	UNC 5/8-11	63/64	0.096	3/8	7.0	40.0	0.825
£ 9.57 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 9.57 0% 10-19 £ 8.61 10% 20-49 £ 8.13 15% 50-99 £ 7.66 20% 100+ £ 7.18 25% Type w/o Threadlock Finish Stainless Spring load Heavy d1 UNC/UNF UNC 5/8-11 l1 ≈ 63/64 s 0.096 d2 3/8 Spring load f1 ≈ lb 7.0 Spring load f2 ≈ lb 40.0 Weight oz 0.825 more info »
	3B100.W0220	With Threadlock	Steel	Light	UNC 1/2-13	3/4	0.072	9/32	3.0	6.0	0.397
£ 5.14 per unit (click for quantity discounts) Ready to despatch 6 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 5.14 0% 10-19 £ 4.63 10% 20-49 £ 4.37 15% 50-99 £ 4.11 20% 100+ £ 3.86 25% Type With Threadlock Finish Steel Spring load Light d1 UNC/UNF UNC 1/2-13 l1 ≈ 3/4 s 0.072 d2 9/32 Spring load f1 ≈ lb 3.0 Spring load f2 ≈ lb 6.0 Weight oz 0.397 more info »
	3B100.W0222	With Threadlock	Steel	Light	UNC 5/8-11	63/64	0.096	3/8	4.5	9.0	0.787
£ 6.21 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 6.21 0% 10-19 £ 5.59 10% 20-49 £ 5.28 15% 50-99 £ 4.97 20% 100+ £ 4.66 25% Type With Threadlock Finish Steel Spring load Light d1 UNC/UNF UNC 5/8-11 l1 ≈ 63/64 s 0.096 d2 3/8 Spring load f1 ≈ lb 4.5 Spring load f2 ≈ lb 9.0 Weight oz 0.787 more info »
	3B100.W0232	With Threadlock	Steel	Standard	UNC 5-40	1/4	0.020	1/16	0.3	0.8	0.016
£ 4.47 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 4.47 0% 10-19 £ 4.02 10% 20-49 £ 3.80 15% 50-99 £ 3.58 20% 100+ £ 3.35 25% Type With Threadlock Finish Steel Spring load Standard d1 UNC/UNF UNC 5-40 l1 ≈ 1/4 s 0.020 d2 1/16 Spring load f1 ≈ lb 0.3 Spring load f2 ≈ lb 0.8 Weight oz 0.016 more info »
	3B100.W0233	With Threadlock	Steel	Standard	UNC 6-32	5/16	0.023	5/64	0.5	1.0	0.020
£ 4.92 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 4.92 0% 10-19 £ 4.43 10% 20-49 £ 4.18 15% 50-99 £ 3.94 20% 100+ £ 3.69 25% Type With Threadlock Finish Steel Spring load Standard d1 UNC/UNF UNC 6-32 l1 ≈ 5/16 s 0.023 d2 5/64 Spring load f1 ≈ lb 0.5 Spring load f2 ≈ lb 1.0 Weight oz 0.020 more info »
	3B100.W0235	With Threadlock	Steel	Standard	UNF 6-40	5/16	0.023	5/64	0.5	1.0	0.020
£ 4.47 per unit (click for quantity discounts) Ready to despatch 18 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 4.47 0% 10-19 £ 4.02 10% 20-49 £ 3.80 15% 50-99 £ 3.58 20% 100+ £ 3.35 25% Type With Threadlock Finish Steel Spring load Standard d1 UNC/UNF UNF 6-40 l1 ≈ 5/16 s 0.023 d2 5/64 Spring load f1 ≈ lb 0.5 Spring load f2 ≈ lb 1.0 Weight oz 0.020 more info »
	3B100.W0242	With Threadlock	Steel	Standard	UNC 1/4-20	17/32	0.035	1/8	3.8	6.8	0.073
£ 3.84 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 3.84 0% 10-19 £ 3.46 10% 20-49 £ 3.26 15% 50-99 £ 3.07 20% 100+ £ 2.88 25% Type With Threadlock Finish Steel Spring load Standard d1 UNC/UNF UNC 1/4-20 l1 ≈ 17/32 s 0.035 d2 1/8 Spring load f1 ≈ lb 3.8 Spring load f2 ≈ lb 6.8 Weight oz 0.073 more info »
	3B100.W0246	With Threadlock	Steel	Standard	UNC 5/16-18	37/64	0.040	5/32	4.0	8.4	0.123
£ 4.25 per unit (click for quantity discounts) Ready to despatch 13 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 4.25 0% 10-19 £ 3.83 10% 20-49 £ 3.61 15% 50-99 £ 3.40 20% 100+ £ 3.19 25% Type With Threadlock Finish Steel Spring load Standard d1 UNC/UNF UNC 5/16-18 l1 ≈ 37/64 s 0.040 d2 5/32 Spring load f1 ≈ lb 4.0 Spring load f2 ≈ lb 8.4 Weight oz 0.123 more info »
	3B100.W0248	With Threadlock	Steel	Standard	UNC 3/8-16	5/8	0.048	3/16	5.0	10.3	0.198
£ 4.41 per unit (click for quantity discounts) Ready to despatch 70 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 4.41 0% 10-19 £ 3.97 10% 20-49 £ 3.75 15% 50-99 £ 3.53 20% 100+ £ 3.31 25% Type With Threadlock Finish Steel Spring load Standard d1 UNC/UNF UNC 3/8-16 l1 ≈ 5/8 s 0.048 d2 3/16 Spring load f1 ≈ lb 5.0 Spring load f2 ≈ lb 10.3 Weight oz 0.198 more info »
	3B100.W0250	With Threadlock	Steel	Standard	UNC 1/2-13	3/4	0.072	9/32	6.0	12.0	0.406
£ 5.14 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 5.14 0% 10-19 £ 4.63 10% 20-49 £ 4.37 15% 50-99 £ 4.11 20% 100+ £ 3.86 25% Type With Threadlock Finish Steel Spring load Standard d1 UNC/UNF UNC 1/2-13 l1 ≈ 3/4 s 0.072 d2 9/32 Spring load f1 ≈ lb 6.0 Spring load f2 ≈ lb 12.0 Weight oz 0.406 more info »
	3B100.W0252	With Threadlock	Steel	Standard	UNC 5/8-11	63/64	0.096	3/8	9.0	18.0	0.811
£ 6.21 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 6.21 0% 10-19 £ 5.59 10% 20-49 £ 5.28 15% 50-99 £ 4.97 20% 100+ £ 4.66 25% Type With Threadlock Finish Steel Spring load Standard d1 UNC/UNF UNC 5/8-11 l1 ≈ 63/64 s 0.096 d2 3/8 Spring load f1 ≈ lb 9.0 Spring load f2 ≈ lb 18.0 Weight oz 0.811 more info »
	3B100.W0276	With Threadlock	Steel	Heavy	UNC 5/16-18	37/64	0.040	5/32	6.0	11.1	0.122
£ 4.47 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 4.47 0% 10-19 £ 4.02 10% 20-49 £ 3.80 15% 50-99 £ 3.58 20% 100+ £ 3.35 25% Type With Threadlock Finish Steel Spring load Heavy d1 UNC/UNF UNC 5/16-18 l1 ≈ 37/64 s 0.040 d2 5/32 Spring load f1 ≈ lb 6.0 Spring load f2 ≈ lb 11.1 Weight oz 0.122 more info »
	3B100.W0278	With Threadlock	Steel	Heavy	UNC 3/8-16	5/8	0.048	3/16	7.5	15.1	0.196
£ 4.47 per unit (click for quantity discounts) Ready to despatch 6 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 4.47 0% 10-19 £ 4.02 10% 20-49 £ 3.80 15% 50-99 £ 3.58 20% 100+ £ 3.35 25% Type With Threadlock Finish Steel Spring load Heavy d1 UNC/UNF UNC 3/8-16 l1 ≈ 5/8 s 0.048 d2 3/16 Spring load f1 ≈ lb 7.5 Spring load f2 ≈ lb 15.1 Weight oz 0.196 more info »
	3B100.W0280	With Threadlock	Steel	Heavy	UNC 1/2-13	3/4	0.072	9/32	6.0	24.0	0.408
£ 5.14 per unit (click for quantity discounts) Ready to despatch 57 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 5.14 0% 10-19 £ 4.63 10% 20-49 £ 4.37 15% 50-99 £ 4.11 20% 100+ £ 3.86 25% Type With Threadlock Finish Steel Spring load Heavy d1 UNC/UNF UNC 1/2-13 l1 ≈ 3/4 s 0.072 d2 9/32 Spring load f1 ≈ lb 6.0 Spring load f2 ≈ lb 24.0 Weight oz 0.408 more info »
	3B100.W0310	With Threadlock	Stainless	Light	UNF 10-32	33/64	0.025	3/32	0.9	1.5	0.048
£ 5.04 per unit (click for quantity discounts) Ready to despatch 8 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 5.04 0% 10-19 £ 4.54 10% 20-49 £ 4.28 15% 50-99 £ 4.03 20% 100+ £ 3.78 25% Type With Threadlock Finish Stainless Spring load Light d1 UNC/UNF UNF 10-32 l1 ≈ 33/64 s 0.025 d2 3/32 Spring load f1 ≈ lb 0.9 Spring load f2 ≈ lb 1.5 Weight oz 0.048 more info »
	3B100.W0322	With Threadlock	Stainless	Light	UNC 5/8-11	63/64	0.096	3/8	4.5	9.0	0.790
£ 10.36 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 10.36 0% 10-19 £ 9.32 10% 20-49 £ 8.81 15% 50-99 £ 8.29 20% 100+ £ 7.77 25% Type With Threadlock Finish Stainless Spring load Light d1 UNC/UNF UNC 5/8-11 l1 ≈ 63/64 s 0.096 d2 3/8 Spring load f1 ≈ lb 4.5 Spring load f2 ≈ lb 9.0 Weight oz 0.790 more info »
	3B100.W0338	With Threadlock	Stainless	Standard	UNF 8-36	11/32	0.025	3/32	0.8	1.3	0.026
£ 4.73 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 4.73 0% 10-19 £ 4.26 10% 20-49 £ 4.02 15% 50-99 £ 3.78 20% 100+ £ 3.55 25% Type With Threadlock Finish Stainless Spring load Standard d1 UNC/UNF UNF 8-36 l1 ≈ 11/32 s 0.025 d2 3/32 Spring load f1 ≈ lb 0.8 Spring load f2 ≈ lb 1.3 Weight oz 0.026 more info »
	3B100.W0348	With Threadlock	Stainless	Standard	UNC 3/8-16	5/8	0.048	3/16	5.0	10.3	0.198
£ 6.50 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 6.50 0% 10-19 £ 5.85 10% 20-49 £ 5.53 15% 50-99 £ 5.20 20% 100+ £ 4.88 25% Type With Threadlock Finish Stainless Spring load Standard d1 UNC/UNF UNC 3/8-16 l1 ≈ 5/8 s 0.048 d2 3/16 Spring load f1 ≈ lb 5.0 Spring load f2 ≈ lb 10.3 Weight oz 0.198 more info »
	3B100.W0350	With Threadlock	Stainless	Standard	UNC 1/2-13	3/4	0.072	9/32	6.0	12.0	0.396
£ 8.31 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 8.31 0% 10-19 £ 7.48 10% 20-49 £ 7.06 15% 50-99 £ 6.65 20% 100+ £ 6.23 25% Type With Threadlock Finish Stainless Spring load Standard d1 UNC/UNF UNC 1/2-13 l1 ≈ 3/4 s 0.072 d2 9/32 Spring load f1 ≈ lb 6.0 Spring load f2 ≈ lb 12.0 Weight oz 0.396 more info »
	3B100.W0370	With Threadlock	Stainless	Heavy	UNF 10-32	33/64	0.025	3/32	3.3	4.8	0.046
£ 4.98 per unit (click for quantity discounts) Ready to despatch 6 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 4.98 0% 10-19 £ 4.48 10% 20-49 £ 4.23 15% 50-99 £ 3.98 20% 100+ £ 3.74 25% Type With Threadlock Finish Stainless Spring load Heavy d1 UNC/UNF UNF 10-32 l1 ≈ 33/64 s 0.025 d2 3/32 Spring load f1 ≈ lb 3.3 Spring load f2 ≈ lb 4.8 Weight oz 0.046 more info »
	3B100.W0378	With Threadlock	Stainless	Heavy	UNC 3/8-16	5/8	0.048	3/16	7.5	15.1	0.197
£ 6.88 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 6.88 0% 10-19 £ 6.19 10% 20-49 £ 5.85 15% 50-99 £ 5.50 20% 100+ £ 5.16 25% Type With Threadlock Finish Stainless Spring load Heavy d1 UNC/UNF UNC 3/8-16 l1 ≈ 5/8 s 0.048 d2 3/16 Spring load f1 ≈ lb 7.5 Spring load f2 ≈ lb 15.1 Weight oz 0.197 more info »
