T-Nuts
stainless steel

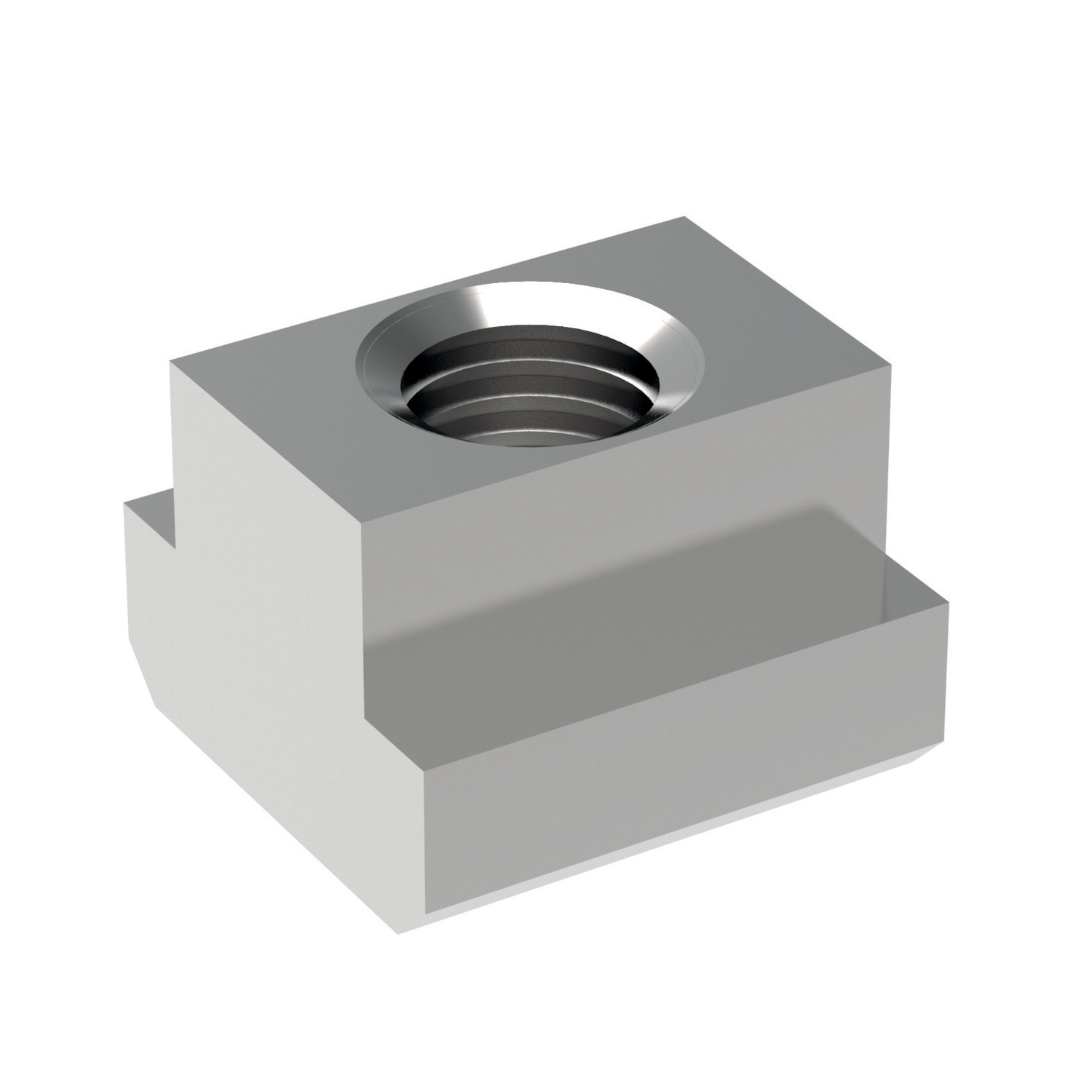

24020 T-Nuts
stainless steel, material: Stainless steel
Order No.
24020.W0121
d1 x T-Slot
M10 x 12
w1
11.6
w2
18
h1
14
h2
7
Weight
g
20
£ 7.40 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 7.40 | 0% |
| 10-19 | £ 6.66 | 10% |
| 20-49 | £ 6.29 | 15% |
| 50-99 | £ 5.92 | 20% |
| 100+ | £ 5.55 | 25% |
Technical & Application
Material
Stainless steel (AISI 304, 1.4301).
Technical Notes
T-nuts to DIN 508.

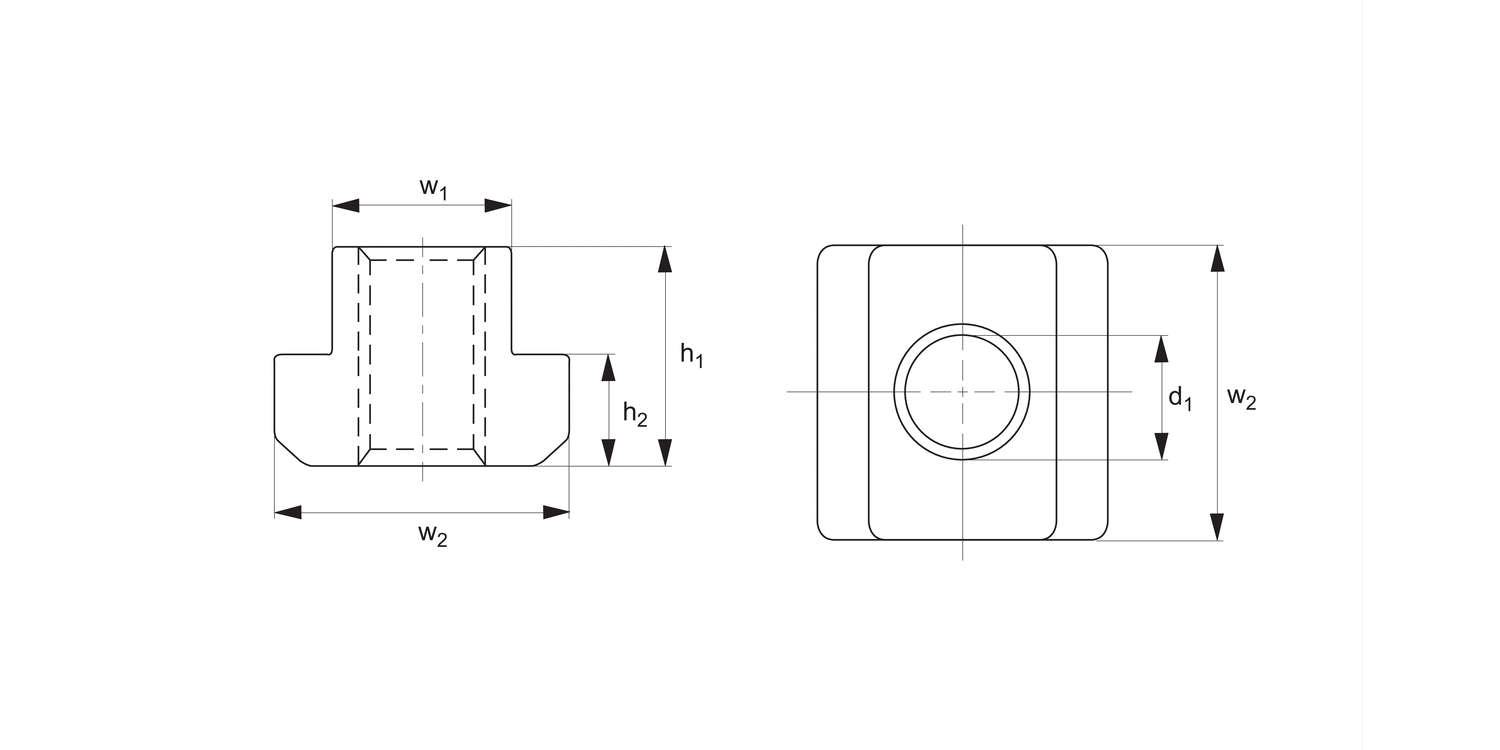

Please note T-nuts are square, length and width are both equal to dimension w2.
