Steel Eye bolts
Steel

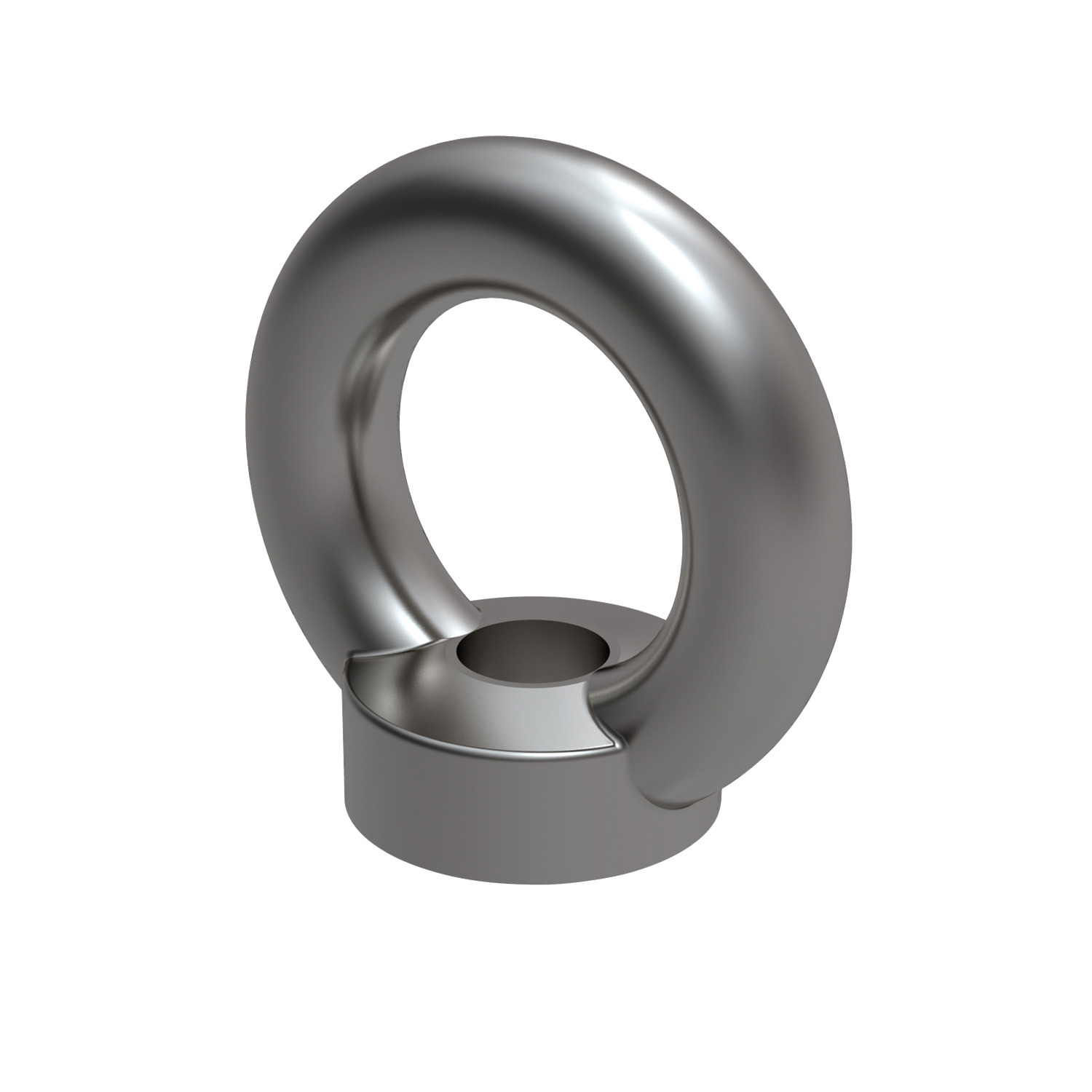

18843 Steel Female Lifting Eye Bolts
metric sizes, material: Steel
Alternative products you may wish to consider
Thread
Coarse
d1
M48
d2
100
w1
166
h1
168
w2
90
w3
38
F1
max.
kg
8600
F2
max.
kg
6100
Weight
kg
5.02
£ 143.71 per unit (click for quantity discounts)
Thread
Coarse
d1
M56
d2
110
w1
184
h1
187
w2
100
w3
42
F1
max.
kg
11500
F2
max.
kg
8200
Weight
kg
6.70
£ 273.91 per unit (click for quantity discounts)
Thread
Coarse
d1
M64
d2
120
w1
206
h1
208
w2
110
w3
48
F1
max.
kg
16000
F2
max.
kg
11000
Weight
kg
9.30
Thread
Coarse
d1
M72x6
d2
150
w1
260
h1
260
w2
140
w3
60
F1
max.
kg
20000
F2
max.
kg
14000
Weight
kg
18.5
Thread
Coarse
d1
M80x6
d2
170
w1
296
h1
298
w2
160
w3
68
F1
max.
kg
28000
F2
max.
kg
20000
Weight
kg
27.3
Thread
Coarse
d1
M100x6
d2
190
w1
330
h1
330
w2
180
w3
75
F1
max.
kg
40000
F2
max.
kg
29000
Weight
kg
26.4
Thread
Fine
d1
M20 x 2,0
d2
40
w1
72
h1
71
w2
40
w3
16
F1
max.
kg
1200
F2
max.
kg
830
Weight
kg
0.36
£ 31.47 per unit (click for quantity discounts)
Thread
Fine
d1
M42 x 3,0
d2
85
w1
144
h1
147
w2
80
w3
32
F1
max.
kg
7000
F2
max.
kg
5000
Weight
kg
3.11
Thread
Fine
d1
M48 x 3,0
d2
100
w1
166
h1
168
w2
90
w3
38
F1
max.
kg
8600
F2
max.
kg
6100
Weight
kg
5.02
Thread
Fine
d1
M56 x 4,0
d2
110
w1
184
h1
187
w2
100
w3
42
F1
max.
kg
11500
F2
max.
kg
8300
Weight
kg
6.69
Thread
d1
d2
w1
h1
w2
w3
F1
max.
kg
F2
max.
kg
Weight
kg
| Price & Availability | Article | Thread | d1 | d2 | w1 | h1 | w2 | w3 | F1 max. kg | F2 max. kg | Weight kg | |||||||||||||||||||||
| 18843.W0048 | Coarse | M48 | 100 | 166 | 168 | 90 | 38 | 8600 | 6100 | 5.02 | ||||||||||||||||||||||
£ 143.71 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Thread Coarse d1 M48 d2 100 w1 166 h1 168 w2 90 w3 38 F1
max.
kg 8600 F2
max.
kg 6100 Weight
kg 5.02 | ||||||||||||||||||||||||||||||||
| 18843.W0056 | Coarse | M56 | 110 | 184 | 187 | 100 | 42 | 11500 | 8200 | 6.70 | ||||||||||||||||||||||
£ 273.91 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Thread Coarse d1 M56 d2 110 w1 184 h1 187 w2 100 w3 42 F1
max.
kg 11500 F2
max.
kg 8200 Weight
kg 6.70 | ||||||||||||||||||||||||||||||||
| 18843.W0064 | Coarse | M64 | 120 | 206 | 208 | 110 | 48 | 16000 | 11000 | 9.30 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Thread Coarse d1 M64 d2 120 w1 206 h1 208 w2 110 w3 48 F1
max.
kg 16000 F2
max.
kg 11000 Weight
kg 9.30 | ||||||||||||||||||||||||||||||||
| 18843.W0072 | Coarse | M72x6 | 150 | 260 | 260 | 140 | 60 | 20000 | 14000 | 18.5 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Thread Coarse d1 M72x6 d2 150 w1 260 h1 260 w2 140 w3 60 F1
max.
kg 20000 F2
max.
kg 14000 Weight
kg 18.5 | ||||||||||||||||||||||||||||||||
| 18843.W0080 | Coarse | M80x6 | 170 | 296 | 298 | 160 | 68 | 28000 | 20000 | 27.3 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Thread Coarse d1 M80x6 d2 170 w1 296 h1 298 w2 160 w3 68 F1
max.
kg 28000 F2
max.
kg 20000 Weight
kg 27.3 | ||||||||||||||||||||||||||||||||
| 18843.W0100 | Coarse | M100x6 | 190 | 330 | 330 | 180 | 75 | 40000 | 29000 | 26.4 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Thread Coarse d1 M100x6 d2 190 w1 330 h1 330 w2 180 w3 75 F1
max.
kg 40000 F2
max.
kg 29000 Weight
kg 26.4 | ||||||||||||||||||||||||||||||||
| 18843.W5020 | Fine | M20 x 2,0 | 40 | 72 | 71 | 40 | 16 | 1200 | 830 | 0.36 | ||||||||||||||||||||||
£ 31.47 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Thread Fine d1 M20 x 2,0 d2 40 w1 72 h1 71 w2 40 w3 16 F1
max.
kg 1200 F2
max.
kg 830 Weight
kg 0.36 | ||||||||||||||||||||||||||||||||
| 18843.W5042 | Fine | M42 x 3,0 | 85 | 144 | 147 | 80 | 32 | 7000 | 5000 | 3.11 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Thread Fine d1 M42 x 3,0 d2 85 w1 144 h1 147 w2 80 w3 32 F1
max.
kg 7000 F2
max.
kg 5000 Weight
kg 3.11 | ||||||||||||||||||||||||||||||||
| 18843.W5048 | Fine | M48 x 3,0 | 100 | 166 | 168 | 90 | 38 | 8600 | 6100 | 5.02 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Thread Fine d1 M48 x 3,0 d2 100 w1 166 h1 168 w2 90 w3 38 F1
max.
kg 8600 F2
max.
kg 6100 Weight
kg 5.02 | ||||||||||||||||||||||||||||||||
| 18843.W5056 | Fine | M56 x 4,0 | 110 | 184 | 187 | 100 | 42 | 11500 | 8300 | 6.69 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Thread Fine d1 M56 x 4,0 d2 110 w1 184 h1 187 w2 100 w3 42 F1
max.
kg 11500 F2
max.
kg 8300 Weight
kg 6.69 | ||||||||||||||||||||||||||||||||

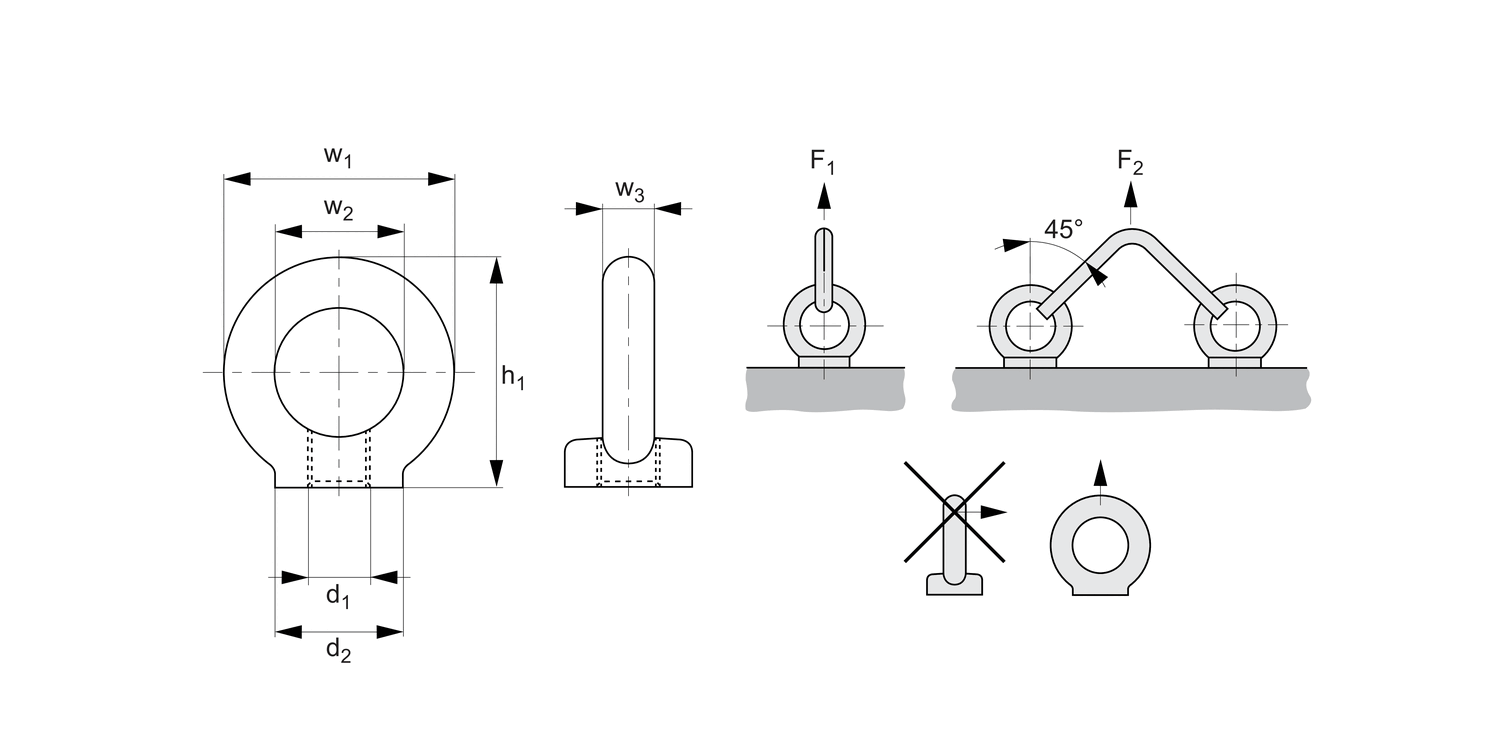

Technical & Application
Material
Forged steel (C15E) annealed and zinc plated. Contact face machined.
CE marked.
Hot dipped galvanised versions (for more demanding applications and limited outside use) also available on request, suffix changes to -GV.
Technical Notes
To DIN 582.
When using lifting eye bolts it is critical to ensure that the face is in firm contact with the mating surface.
These lifting bolts are generally installed and remain on a piece of equipment for the purpose of transporting them. They are not for repeated lifting use - if this is required our swivelling lifting bolt range should be used.
Tips
Maximum load values are only applicable when the thread and the material, it is being used in is as least as strong as the that of the bolt.
Temperature range -20°C to +200°C.
F1 and F2 values given are for steel and cast iron components.
Important Notes
Not to be used at lift angles of greater than 45° or with swivelling loads.
Supplied with certificate and operating instructions.
