Swing Clamps
12562.1 Swing Clamps
material: Steel
Order No.
12562.W0031
Clamping direction
Anti Clockwise
Clamping height finished surface
min.
22,8 (22,3~23,3)
Clamping height finished surface
max.
24,8 (24,3~25,3)
Clamping height rough surface
min.
22,4 (21,9~22,9)
Clamping height rough surface
max.
24,4 (23,9~24,9)

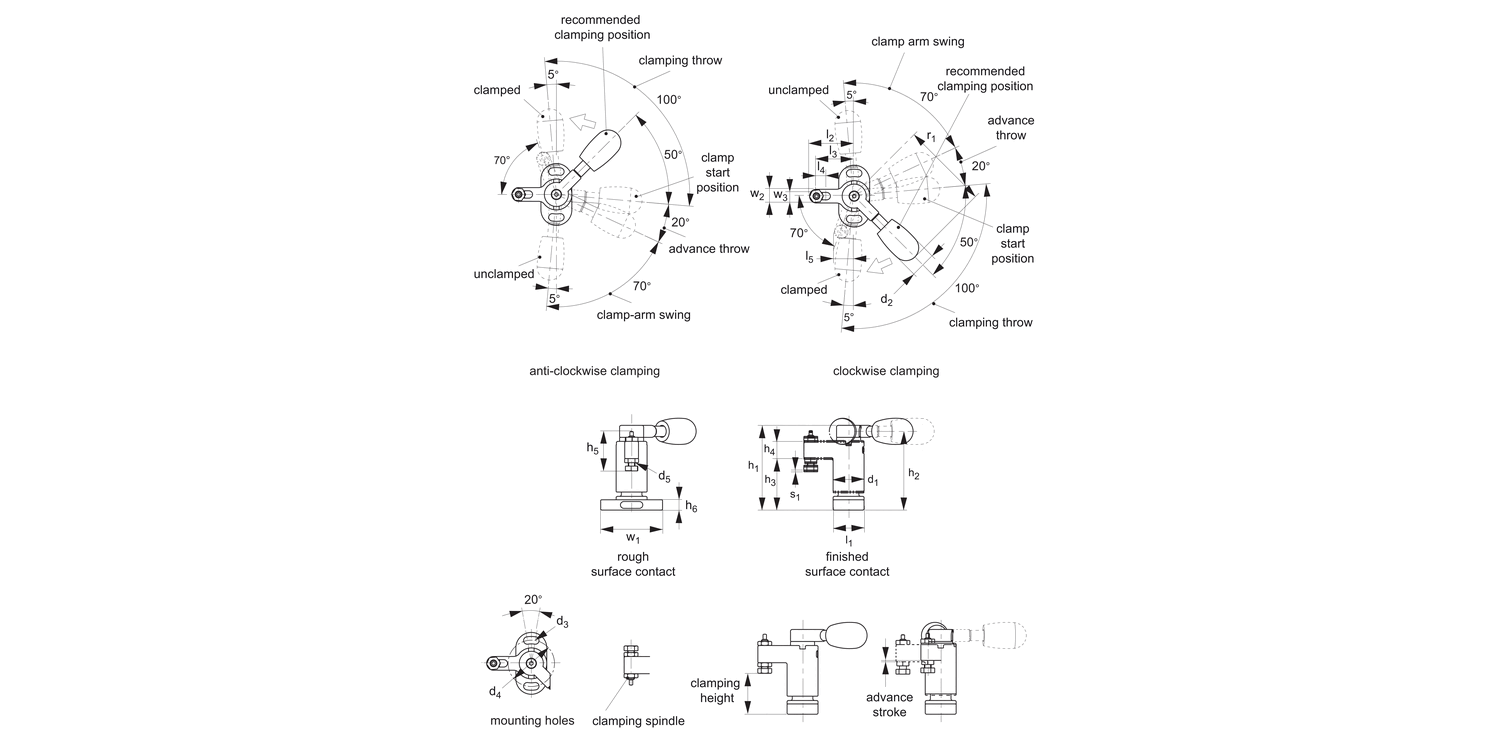

h1
49
h2
45.8
h3
30
h4
10
h5
22.8
h6
6
l1
18
l2
26
Weight
g
112
l3
22
l4
6
l5
11.5
d1
18
d2
15
d3
4.3
d4
27
d5
M 4x0,70
r1
50
w1
36
w2
8
w3
4.3
Clamping force
kN
1.1
Clamping mechanism
Spiral Cam, 5°
Clamping stroke s1
1.0
Advance stroke s2
0.8
Operating load
max.
N
100
£ 165.78 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 165.78 | 0% |
| 10-19 | £ 149.20 | 10% |
| 20-49 | £ 140.91 | 15% |
| 50-99 | £ 132.62 | 20% |
| 100+ | £ 116.05 | 30% |
Technical & Application
Material
Body, handle, clamping spindle: steel (C45), tempered and black oxide finish.
Arm, cam shaft: steel (42CrMo4), tempered and black oxide finish.
Knob: phenolic plastic, black.
Tips
Rough surface contact. Can be supplied with nickel-plated finish on request. Clamping height can be adjusted. Values in brackets shows clamping height range.
Product Datasheets

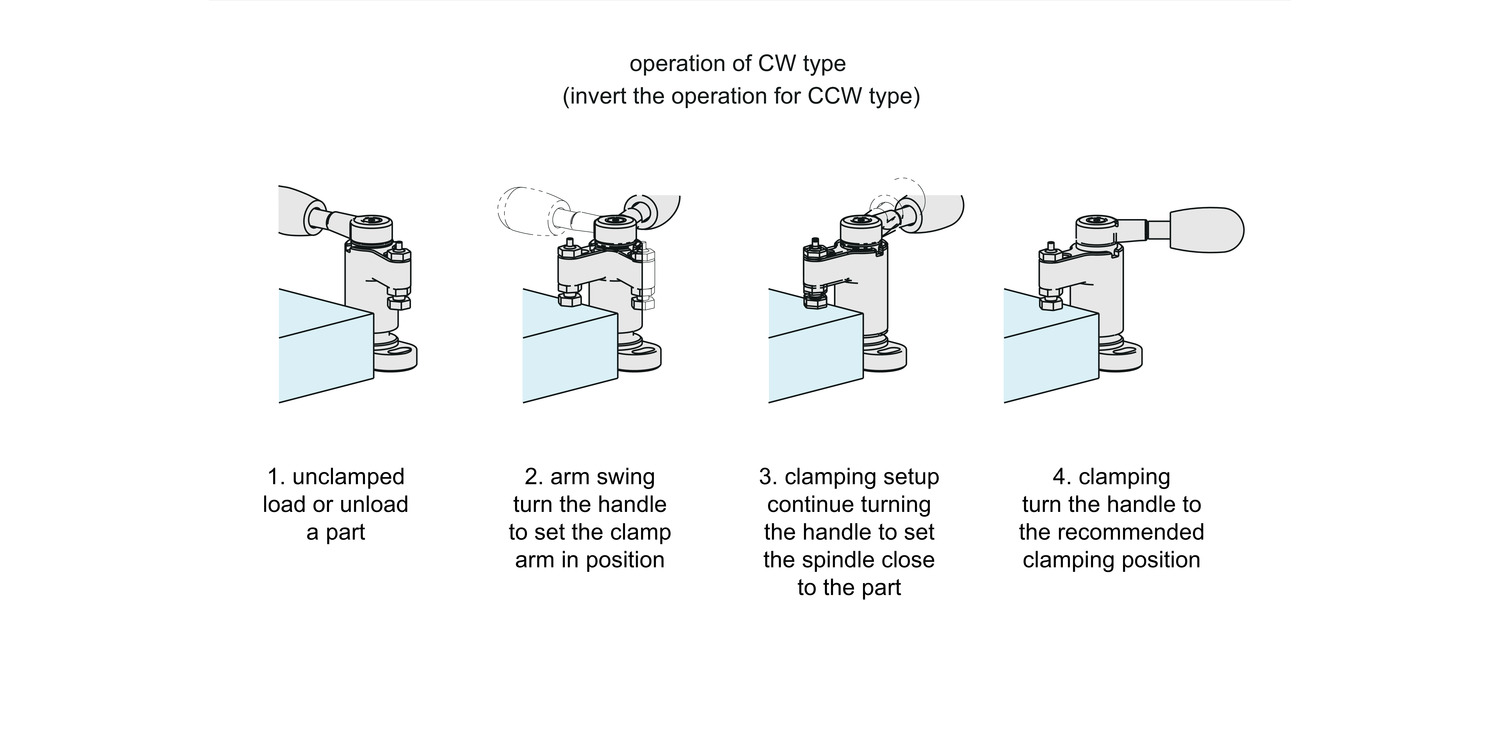

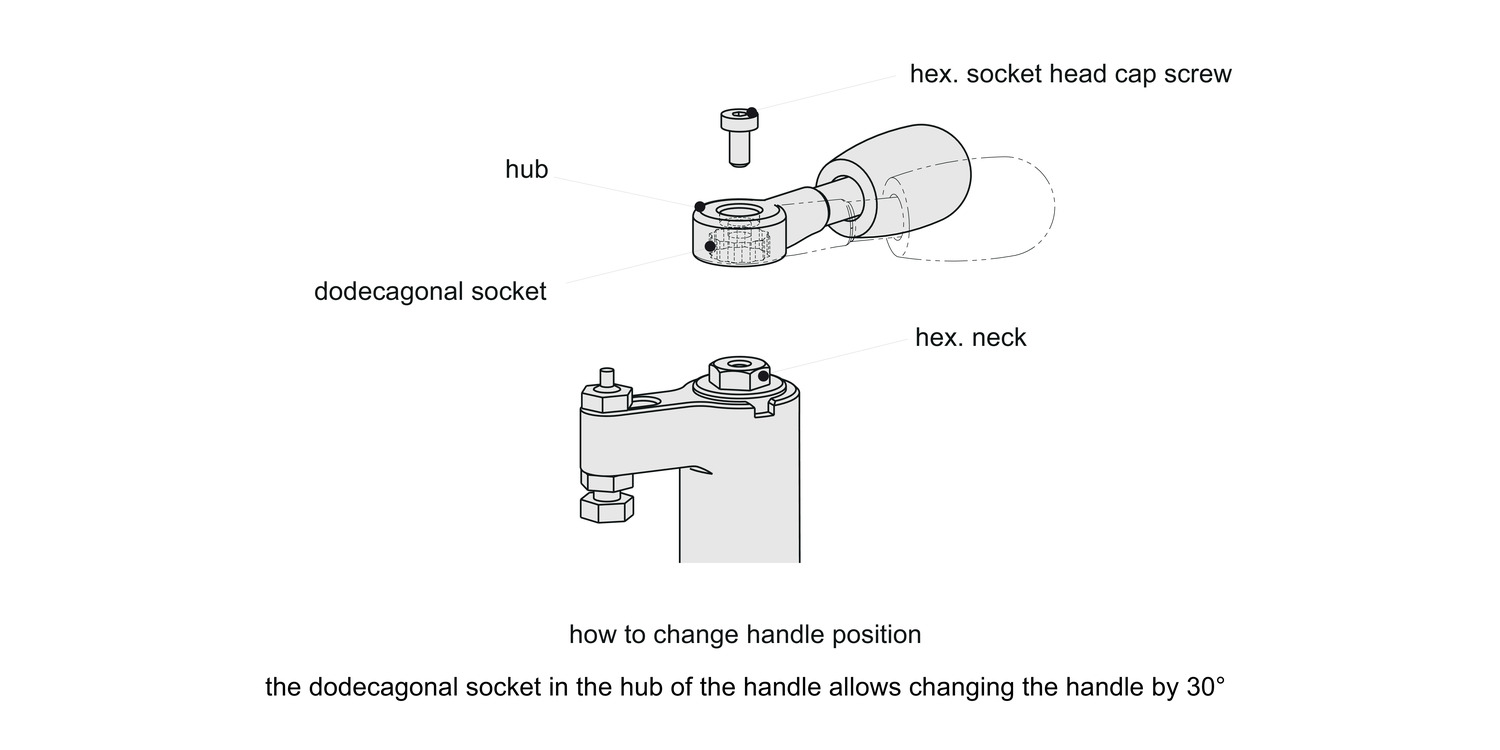

Application images
