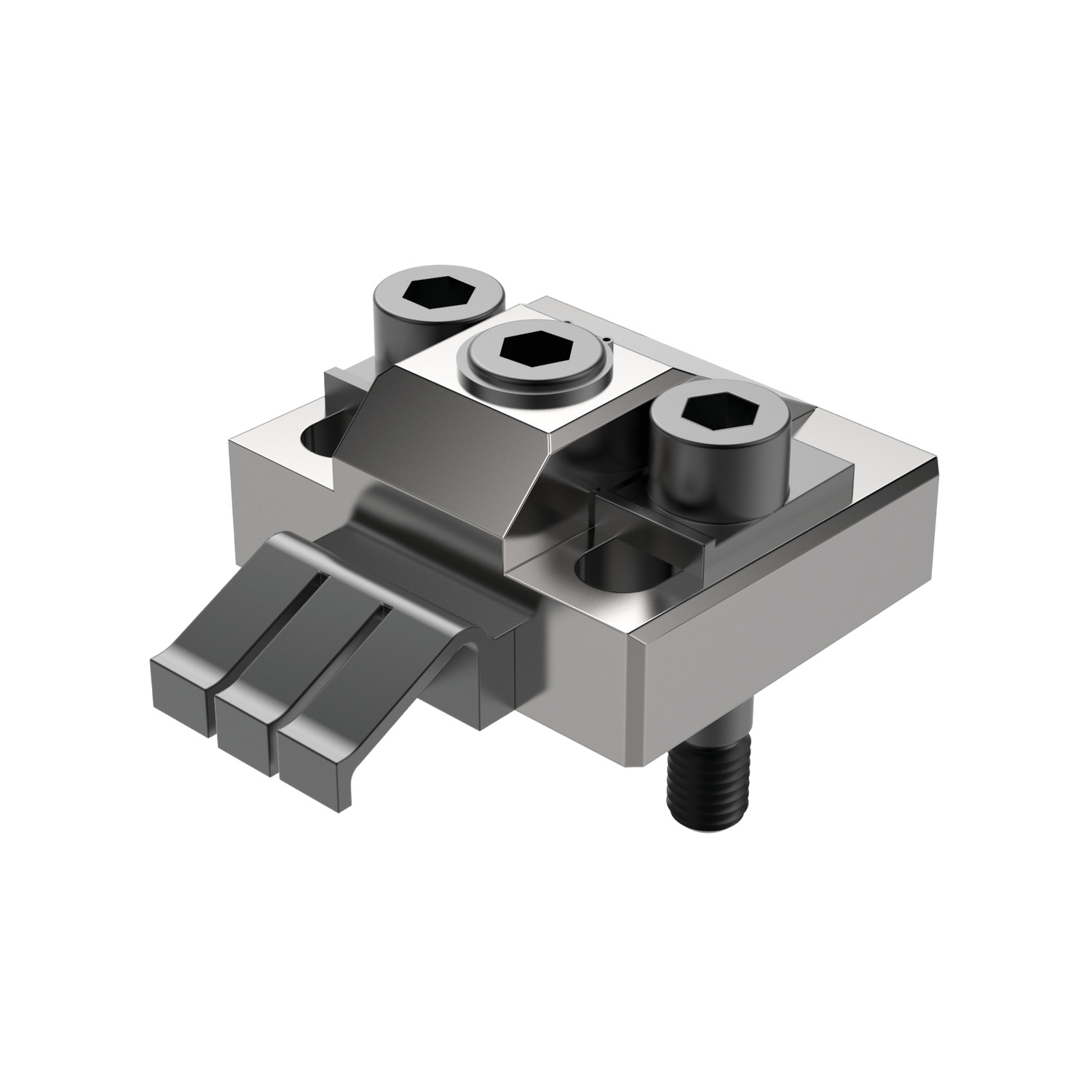

1.2 Ton Finger Clamps
11070 1.2 Ton Finger Clamps
material: Hardened steel
Alternative products you may wish to consider

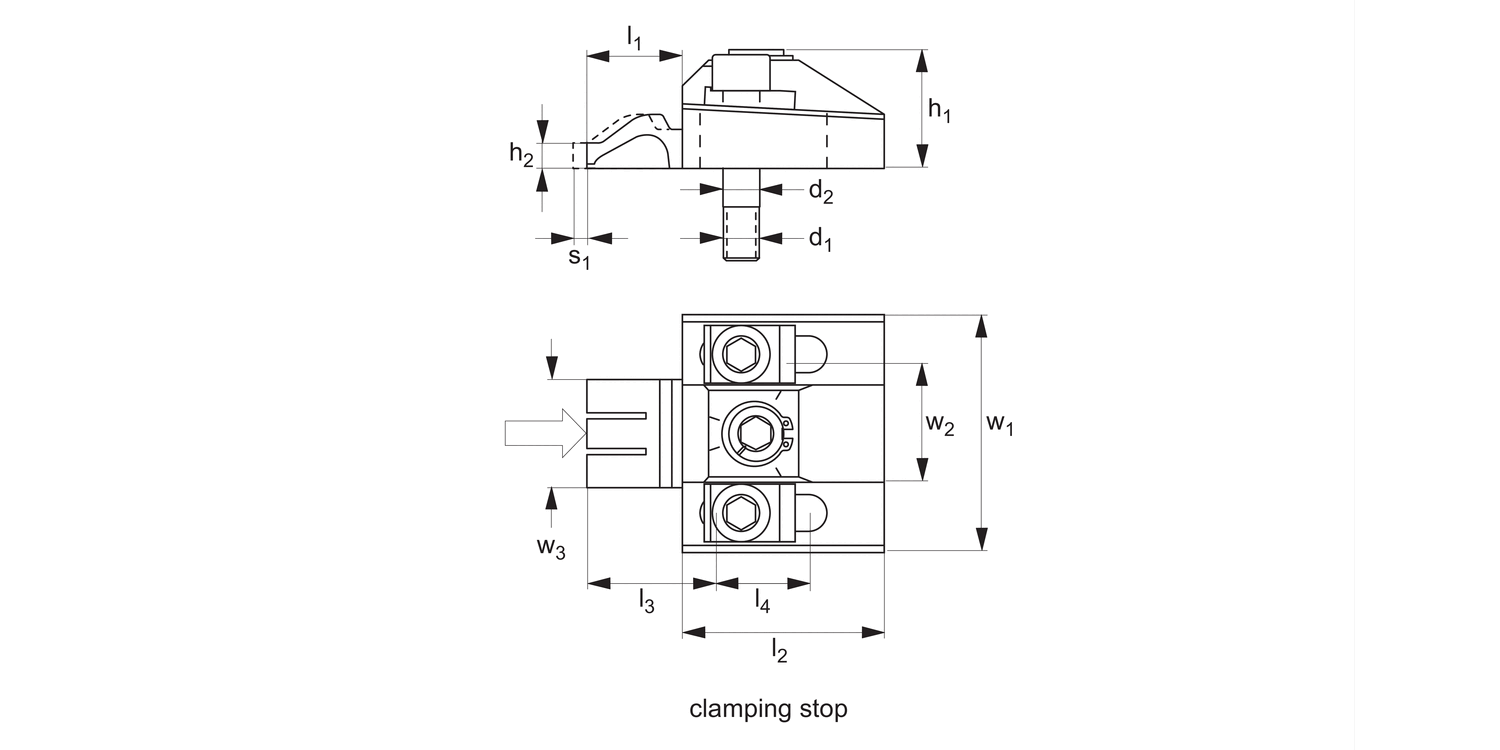

Clamping adjustment l3
25
Clamping height h2
7
Clamping stroke s1
1.6
d1
M10
d2
tol. h6
10.2
h1
33
l1
26.5
l2
56
l4
36.5
w1
66
w2
44
w3
30
Torque to
max.
Nm
70
Clamping force
max.
kN
12
£ 527.12 per unit (click for quantity discounts)
Clamping adjustment l3
Clamping height h2
Clamping stroke s1
d1
d2
tol. h6
h1
l1
l2
l4
w1
w2
w3
Torque to
max.
Nm
Clamping force
max.
kN
| Price & Availability | Article | Clamping adjustment l3 | Clamping height h2 | Clamping stroke s1 | d1 | d2 tol. h6 | h1 | l1 | l2 | l4 | w1 | w2 | w3 | Torque to max. Nm | Clamping force max. kN | |||||||||||||||
| 11070.W0020 | 25 | 7 | 1.6 | M10 | 10.2 | 33 | 26.5 | 56 | 36.5 | 66 | 44 | 30 | 70 | 12 | ||||||||||||||||
£ 527.12 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Clamping adjustment l3 25 Clamping height h2 7 Clamping stroke s1 1.6 d1 M10 d2
tol. h6 10.2 h1 33 l1 26.5 l2 56 l4 36.5 w1 66 w2 44 w3 30 Torque to
max.
Nm 70 Clamping force
max.
kN 12 | ||||||||||||||||||||||||||||||
Technical & Application
Material
Hardened steel, with spring steel clamping element.
Technical Notes
A low height, very powerful compact clamp.
These clamps have a unique sideways and downwards clamping action.
Tips
Provided with specially ground location bolts Ø10,2 - M10, screws, washers and clamping key. For mounting there are 2 tapped holes at 44,00 ±0,005mm centres, M10 with depth of 28mm, counterbore 10,2 (H6) with depth of 14mm.
Product Datasheets

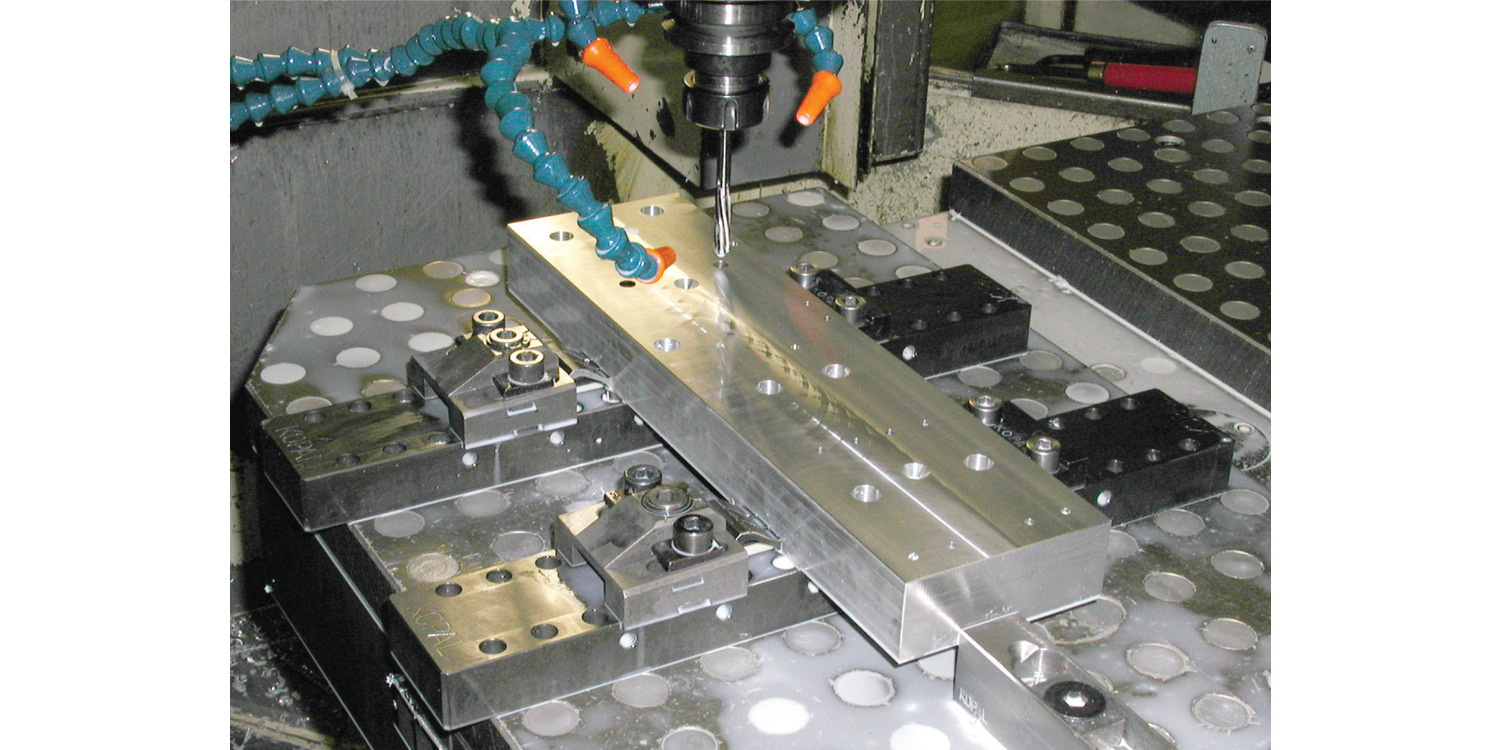

Application images
