Uniforce Clamps
12131 Uniforce Clamps
long length, material: Aluminium, steel
Order No.
12131.W0006
Part
Channel

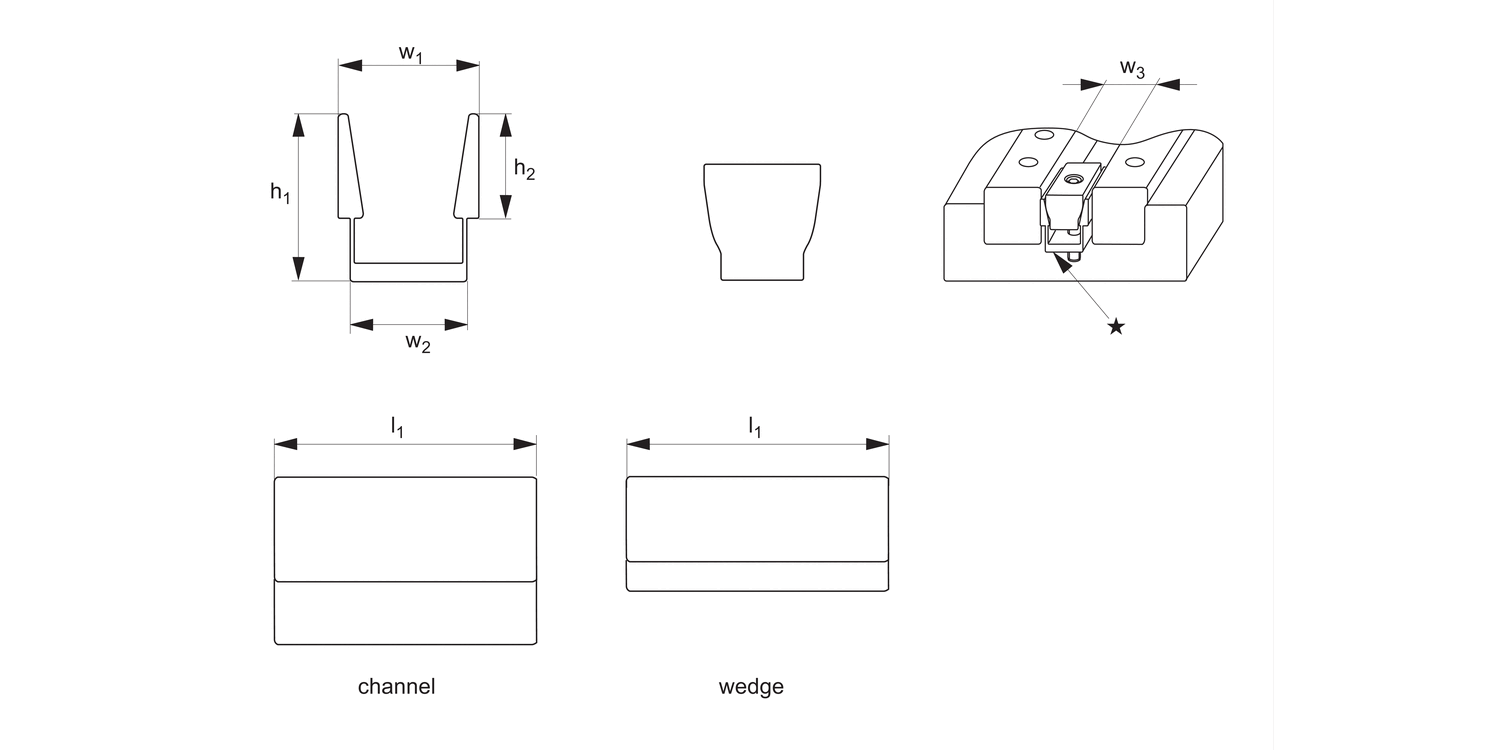

h1
19.1
h2
9.5
l1
508
w1
18.6
w2
16.1
w3
19.0
Spread
max.
20.3
£ 67.72 per unit (click for quantity discounts)
Ready to despatch 5
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 67.72 | 0% |
| 20-49 | £ 60.95 | 10% |
| 50-99 | £ 57.56 | 15% |
| 100-499 | £ 50.79 | 25% |
| 500+ | £ 44.02 | 35% |
Technical & Application
Material
Channel: aluminium (7075-T6).
Wedge: steel.
Technical Notes
Standard length of 508mm supplied, to allow machining to your own requirements.
No drilled holes.
Important Notes
Dimension "w3" is distance needed between workpieces for clamp clearance. Drill and tap mounting hole on centre of this dimension.
"*" a milled slot wider than w2 will ensure clamp remains in line with workpiece. Clamp sides should not come into contact with slot wall during expansion.
Channel and wedge supplied seperately. If both parts are required please order them seperately.
