Toggle Clamps
horizontal
41062.2 Horizontal Acting Toggle Clamps
black - open arm - vertical base, material: Steel matt black
Alternative products you may wish to consider

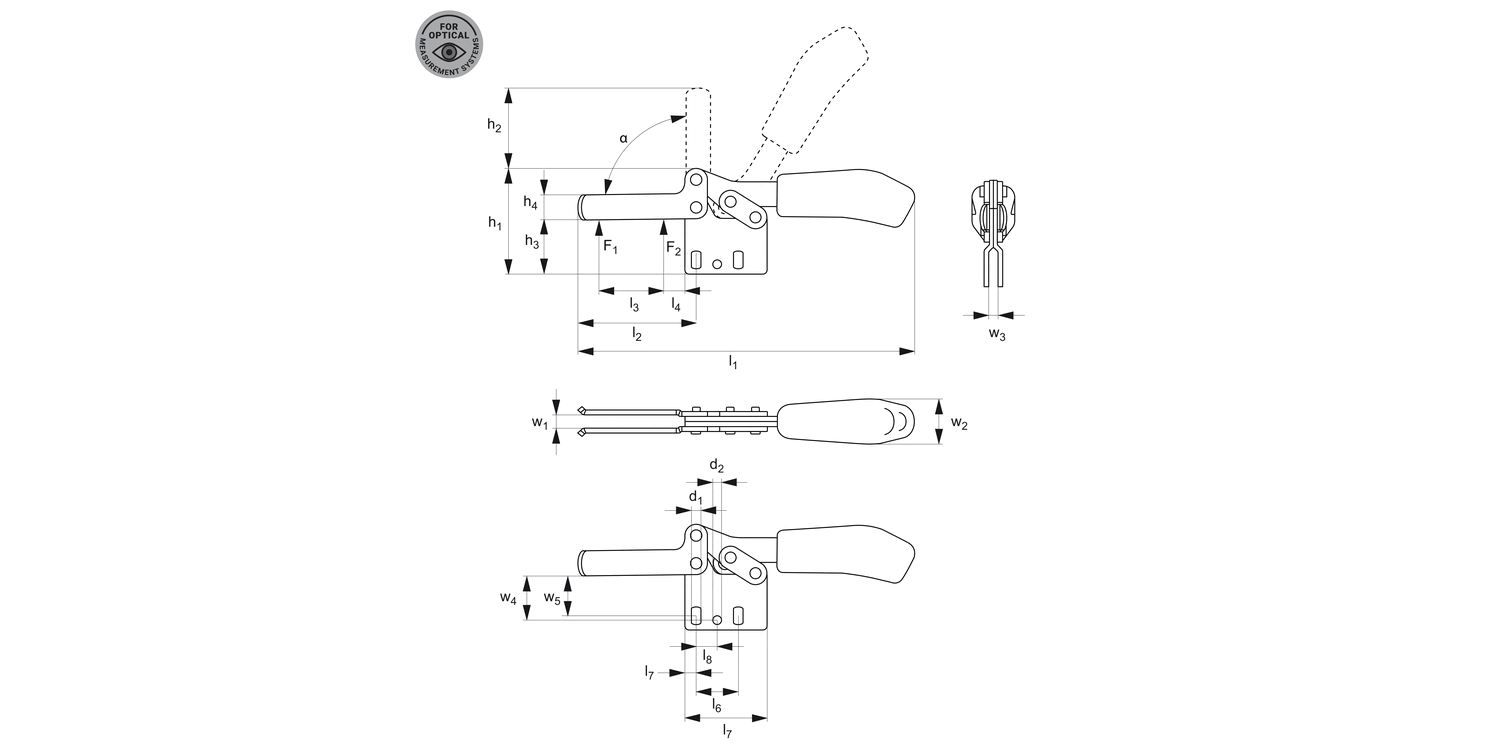

Size
F1
kN
F2
kN
h1
h2
h3
h4
l1
l2
l3
l4
l5
| Price & Availability | Article | Size | F1 kN | F2 kN | h1 | h2 | h3 | h4 | l1 | l2 | l3 | l4 | l5 | ||||||||||||||||||
| 41062.W0110 | 3 | 1.8 | 2.5 | 65 | 86 | 34 | 15 | 206 | 73 | 34.5 | 16.5 | 50 | |||||||||||||||||||
£ 65.84 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 3 F1
kN 1.8 F2
kN 2.5 h1 65 h2 86 h3 34 h4 15 l1 206 l2 73 l3 34.5 l4 16.5 l5 50 | |||||||||||||||||||||||||||||||
Weight
g
l6
l7
l8
w1
w2
w3
w4
w5
d1
d2
α
| Price & Availability | Article | Weight g | l6 | l7 | l8 | w1 | w2 | w3 | w4 | w5 | d1 | d2 | α | ||||||||||||||||||
| 41062.W0110 | 320 | 25.7 | 7 | 13 | 8 | 27 | 6 | 27 | 22,5-27,5 | 6.5 | 5.1 | 90° | |||||||||||||||||||
£ 65.84 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 320 l6 25.7 l7 7 l8 13 w1 8 w2 27 w3 6 w4 27 w5 22,5-27,5 d1 6.5 d2 5.1 α 90° | |||||||||||||||||||||||||||||||
Technical & Application
Material
Body: steel, matt black.
Bushes: case hardened and pre-lubricated.
Ergonomic soft feel, oil-resistant handle with large grip area.
Supplied complete with clamping screw (with rubber pad).
Technical Notes
For optical analysis applications.
Tips
Designed specifically for clamping of parts during photometric measurement. Uniform matt black surface prevents reflection, enabling easy "knocking-out" of the clamp during optical analysis of a component.
