Index Plunger
w/o thread, weldable

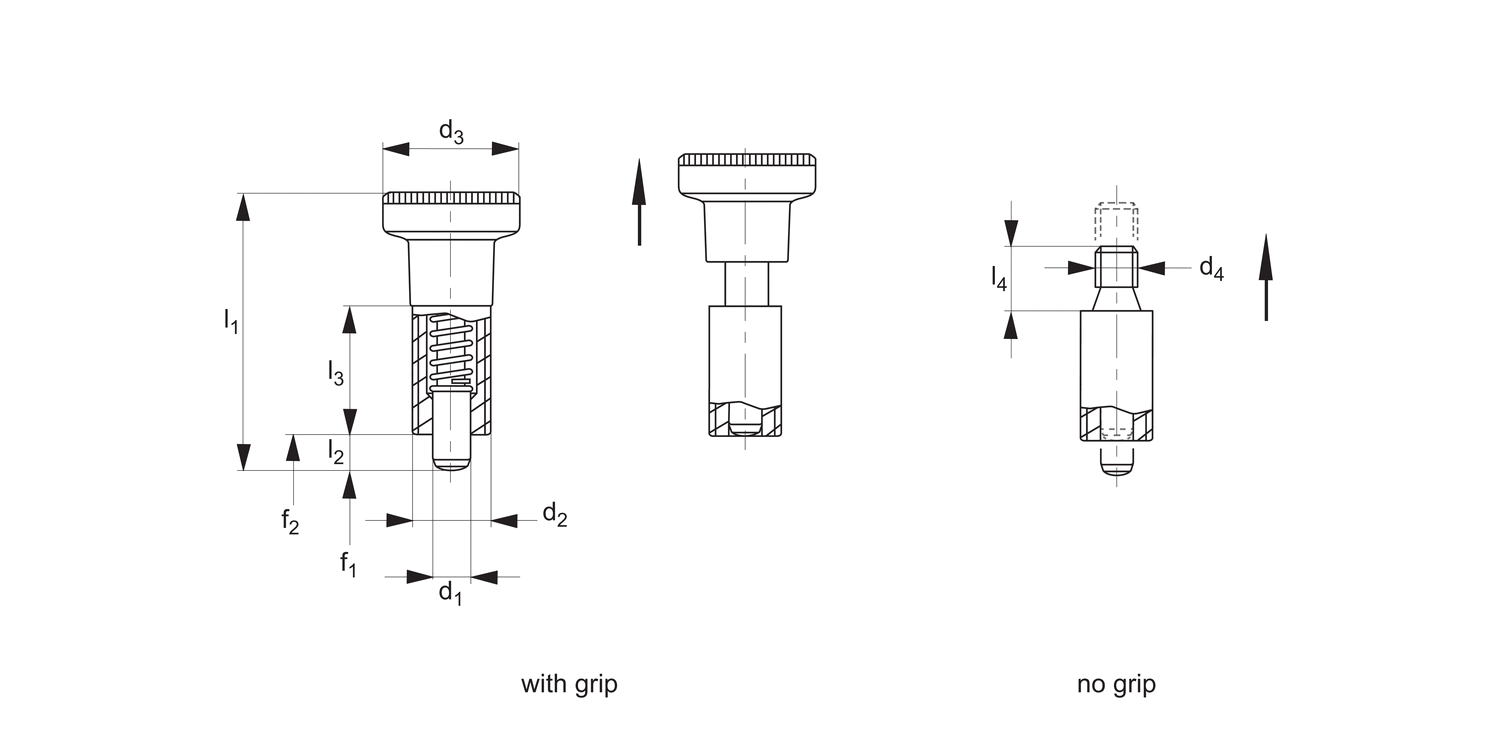

32720 Index Plunger - Pull Grip
weldable - non-locking, material: Steel
Alternative products you may wish to consider
Type
With Grip
d1
-0.02|-0.04
5
l1
≈
45.0
d2
tol. h9
12
d3
21
d4
-
l2
min.
5
l3
22
l4
-
Spring load F1
≈
N
7.0
Spring load F2
≈
N
16
Weight
g
25
£ 11.19 per unit (click for quantity discounts)
Type
With Grip
d1
-0.02|-0.04
6
l1
≈
54.5
d2
tol. h9
14
d3
25
d4
-
l2
min.
6
l3
26
l4
-
Spring load F1
≈
N
6.5
Spring load F2
≈
N
15
Weight
g
40
£ 12.52 per unit (click for quantity discounts)
Type
With Grip
d1
-0.02|-0.04
8
l1
≈
69.0
d2
tol. h9
18
d3
31
d4
-
l2
min.
8
l3
34
l4
-
Spring load F1
≈
N
12.0
Spring load F2
≈
N
31
Weight
g
84
£ 16.79 per unit (click for quantity discounts)
Type
No Grip
d1
-0.02|-0.04
5
l1
≈
-
d2
tol. h9
12
d3
-
d4
M 5
l2
min.
5
l3
22
l4
6
Spring load F1
≈
N
7.0
Spring load F2
≈
N
16
Weight
g
19
£ 11.01 per unit (click for quantity discounts)
Type
No Grip
d1
-0.02|-0.04
6
l1
≈
-
d2
tol. h9
14
d3
-
d4
M 6
l2
min.
6
l3
26
l4
10
Spring load F1
≈
N
6.5
Spring load F2
≈
N
15
Weight
g
32
£ 12.25 per unit (click for quantity discounts)
Type
No Grip
d1
-0.02|-0.04
8
l1
≈
-
d2
tol. h9
18
d3
-
d4
M 8
l2
min.
8
l3
34
l4
12
Spring load F1
≈
N
12.0
Spring load F2
≈
N
31
Weight
g
67
£ 15.76 per unit (click for quantity discounts)
Type
d1
-0.02|-0.04
l1
≈
d2
tol. h9
d3
d4
l2
min.
l3
l4
Spring load F1
≈
N
Spring load F2
≈
N
Weight
g
| Price & Availability | Article | Type | d1 -0.02|-0.04 | l1 ≈ | d2 tol. h9 | d3 | d4 | l2 min. | l3 | l4 | Spring load F1 ≈ N | Spring load F2 ≈ N | Weight g | ||||||||||||||||||
| 32720.W0805 | With Grip | 5 | 45.0 | 12 | 21 | - | 5 | 22 | - | 7.0 | 16 | 25 | |||||||||||||||||||
£ 11.19 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type With Grip d1
-0.02|-0.04 5 l1
≈ 45.0 d2
tol. h9 12 d3 21 d4 - l2
min. 5 l3 22 l4 - Spring load F1
≈
N 7.0 Spring load F2
≈
N 16 Weight
g 25 | |||||||||||||||||||||||||||||||
| 32720.W0806 | With Grip | 6 | 54.5 | 14 | 25 | - | 6 | 26 | - | 6.5 | 15 | 40 | |||||||||||||||||||
£ 12.52 per unit (click for quantity discounts) Ready to despatch 6 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type With Grip d1
-0.02|-0.04 6 l1
≈ 54.5 d2
tol. h9 14 d3 25 d4 - l2
min. 6 l3 26 l4 - Spring load F1
≈
N 6.5 Spring load F2
≈
N 15 Weight
g 40 | |||||||||||||||||||||||||||||||
| 32720.W0808 | With Grip | 8 | 69.0 | 18 | 31 | - | 8 | 34 | - | 12.0 | 31 | 84 | |||||||||||||||||||
£ 16.79 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type With Grip d1
-0.02|-0.04 8 l1
≈ 69.0 d2
tol. h9 18 d3 31 d4 - l2
min. 8 l3 34 l4 - Spring load F1
≈
N 12.0 Spring load F2
≈
N 31 Weight
g 84 | |||||||||||||||||||||||||||||||
| 32720.W0825 | No Grip | 5 | - | 12 | - | M 5 | 5 | 22 | 6 | 7.0 | 16 | 19 | |||||||||||||||||||
£ 11.01 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type No Grip d1
-0.02|-0.04 5 l1
≈ - d2
tol. h9 12 d3 - d4 M 5 l2
min. 5 l3 22 l4 6 Spring load F1
≈
N 7.0 Spring load F2
≈
N 16 Weight
g 19 | |||||||||||||||||||||||||||||||
| 32720.W0826 | No Grip | 6 | - | 14 | - | M 6 | 6 | 26 | 10 | 6.5 | 15 | 32 | |||||||||||||||||||
£ 12.25 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type No Grip d1
-0.02|-0.04 6 l1
≈ - d2
tol. h9 14 d3 - d4 M 6 l2
min. 6 l3 26 l4 10 Spring load F1
≈
N 6.5 Spring load F2
≈
N 15 Weight
g 32 | |||||||||||||||||||||||||||||||
| 32720.W0828 | No Grip | 8 | - | 18 | - | M 8 | 8 | 34 | 12 | 12.0 | 31 | 67 | |||||||||||||||||||
£ 15.76 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type No Grip d1
-0.02|-0.04 8 l1
≈ - d2
tol. h9 18 d3 - d4 M 8 l2
min. 8 l3 34 l4 12 Spring load F1
≈
N 12.0 Spring load F2
≈
N 31 Weight
g 67 | |||||||||||||||||||||||||||||||
Technical & Application
Material
Body: free cutting steel, blackened, weldable.
Pin: hardened steel.
Grip: plastic (PA 6), black, non-removable.
Technical Notes
"Non Locking" type- pin simply springs back when pull ring released.
Designed specifically for installation via welding or use of glues. Plungers without grip enable your own adaptation with actuation grip/lever to your own design.
Without grip temperature resistance up to 250°C .
Tips
Grip non-removable.
Spring loads * = statistical average.
