Step Adjustable Clamps
10603 Crocodile Adjustable Clamp
with support heel, material: Tempered steel
Order No.
10603.W0016
T-bolt
M16x16x160
For T-slot
16
h1
36
h2
21
h3
min.|max.
0-70
h4
20
h5
17
l2
35
l3
36

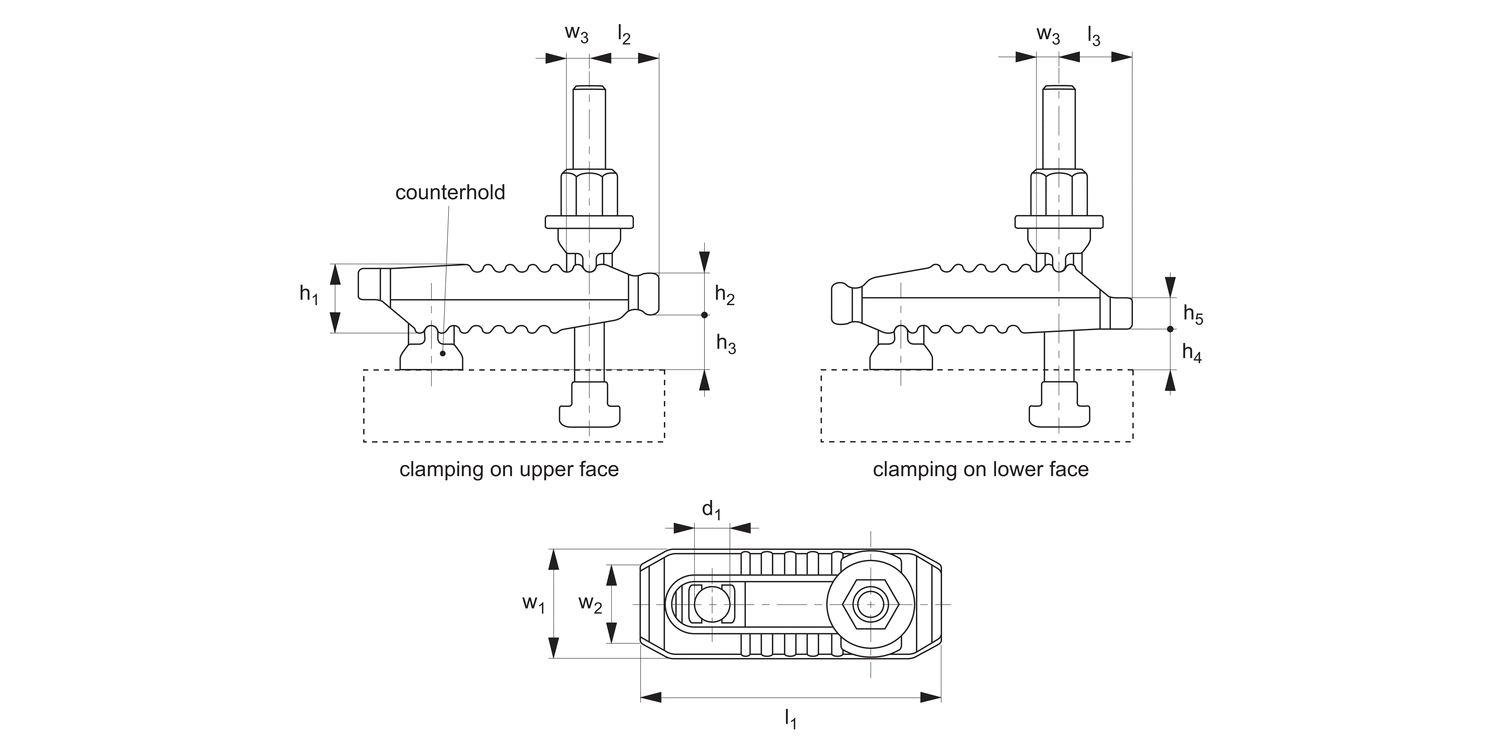

w1 x l1
55x150
w2
41
w3
12
d1
17
Clamping force
max.
kN
40
Weight
g
1798
£ 146.45 per unit (click for quantity discounts)
Ready to despatch 1
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-2 | £ 146.45 | 0% |
| 3-4 | £ 139.13 | 5% |
| 5-9 | £ 131.81 | 10% |
| 10+ | £ 124.48 | 15% |
Technical & Application
Material
Clamp: steel, tempered and galvanised.
T-bolt: steel, forged (strength class 8.8). See part 21000 for details.
Washer: steel, hardened. See part 25000 for details.
Nut: steel, heat-treated to strength class 10. See part 24300 for details.
Technical Notes
Ideal for clamping components of varying heights - requires no additional support or packing pieces.
Continuously adjustable clamp over range of heights (see dimension h1 in table), with high clamping force.
Support heel and stud counterhold are non-detachable, making for a single piece clamp which is quick and easy to use.
Supplied complete with T-bolt, washer and T-nut (see data table).
Ideal for use on press tools and injection mould tools. Height can be increased by using Support Extensions 10604.
Tips
*Clamping forces based on using stud and nut of strength class 8.8 or better, optimal positioning of the clamp and good condition of the thread.
