Step Adjustable Clamps

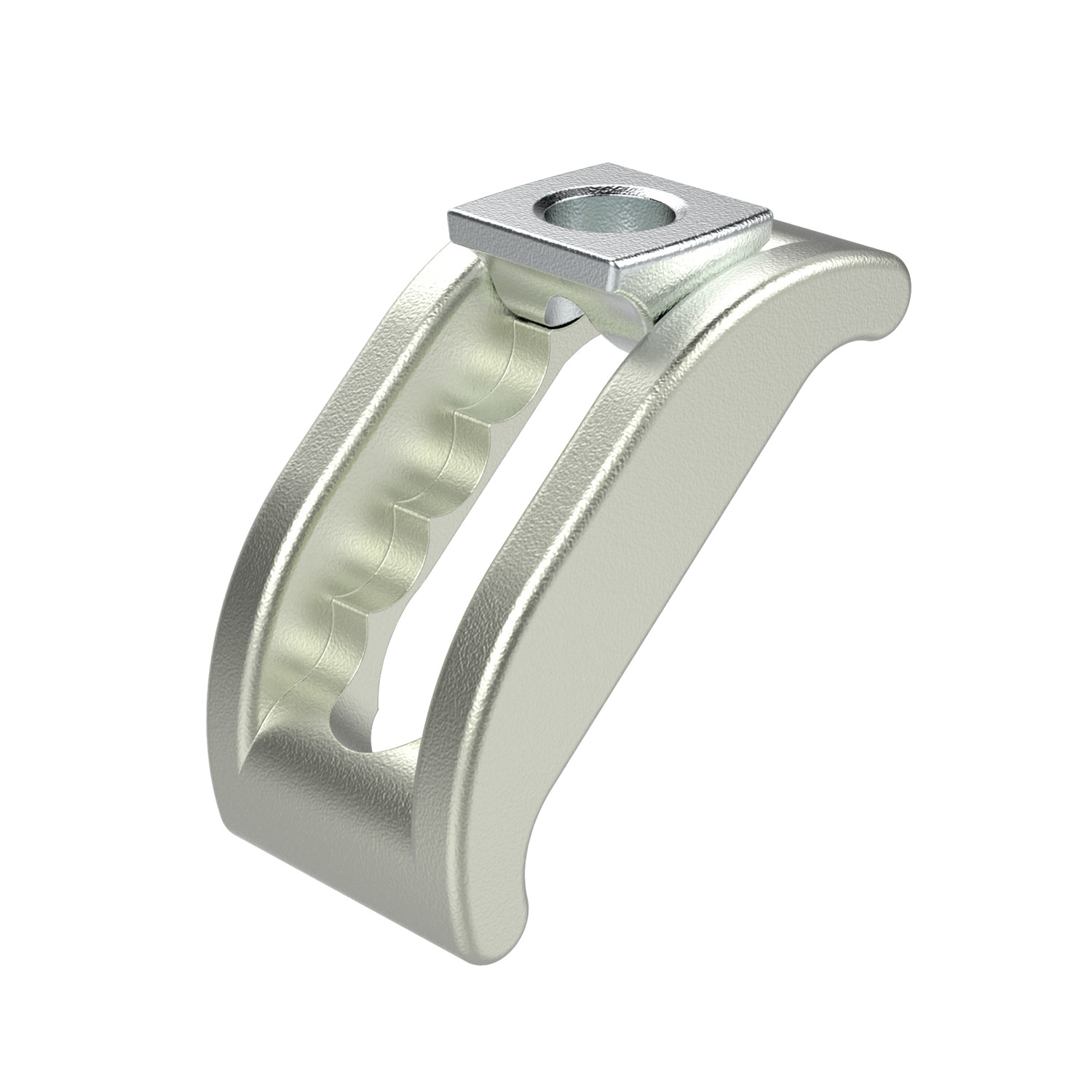

10620 Stepless Adjustable Clamps
material: Hardened steel
Order No.
10620.W0012
Clamping height h1
min.|max.
0-35
For T-slot
12 & 14
For bolt
M12
h2
min.|max.
30-55
l2
48
l3
28
l4
23
l5
14
w1 x l1
38x88
d1
13
Weight
g
260
£ 49.46 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-2 | £ 49.46 | 0% |
| 3-4 | £ 46.99 | 5% |
| 5-9 | £ 44.51 | 10% |
| 10+ | £ 42.04 | 15% |
Technical & Application
Material
Steel, tempered and galvanised.
Technical Notes
Ideal for press tool clamping. The clamp body has a long slot for easy positioning.
Tips
Supplied without T-bolt or nut - for these parts see nos. 21000 and 24400.
Product Datasheets
Application images
