Step Adjustable Clamps
10620 Stepless Adjustable Clamps
material: Hardened steel
Order No.
10620.W0032

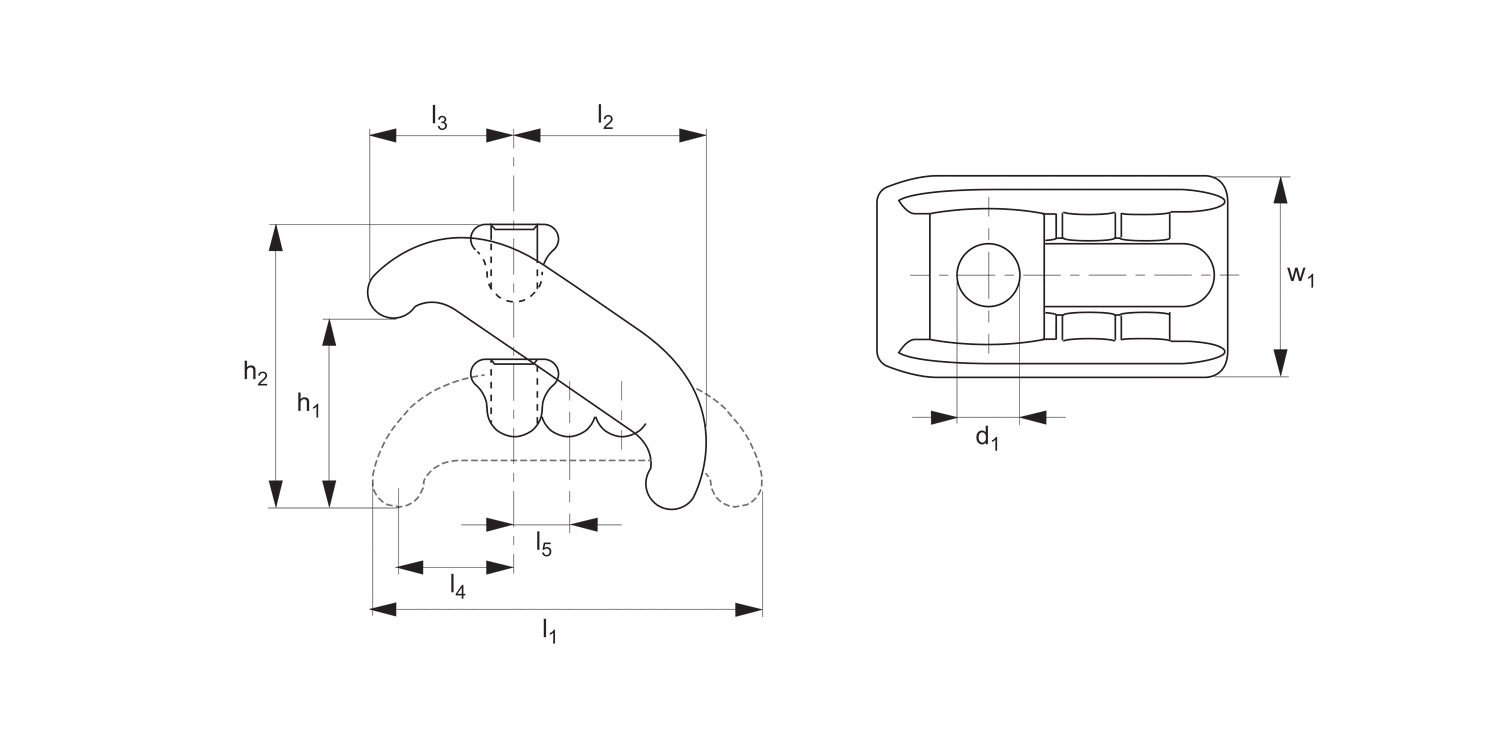

Clamping height h1
min.|max.
0-80
For T-slot
36
For bolt
M30
h2
min.|max.
62-125
l2
110
l3
61
l4
44
l5
28
w1 x l1
90x200
d1
32
Weight
g
2785
£ 220.41 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-2 | £ 220.41 | 0% |
| 3-4 | £ 209.39 | 5% |
| 5-9 | £ 198.37 | 10% |
| 10+ | £ 187.35 | 15% |
Technical & Application
Material
Steel, tempered and galvanised.
Technical Notes
Ideal for press tool clamping. The clamp body has a long slot for easy positioning.
Tips
Supplied without T-bolt or nut - for these parts see nos. 21000 and 24400.
Product Datasheets

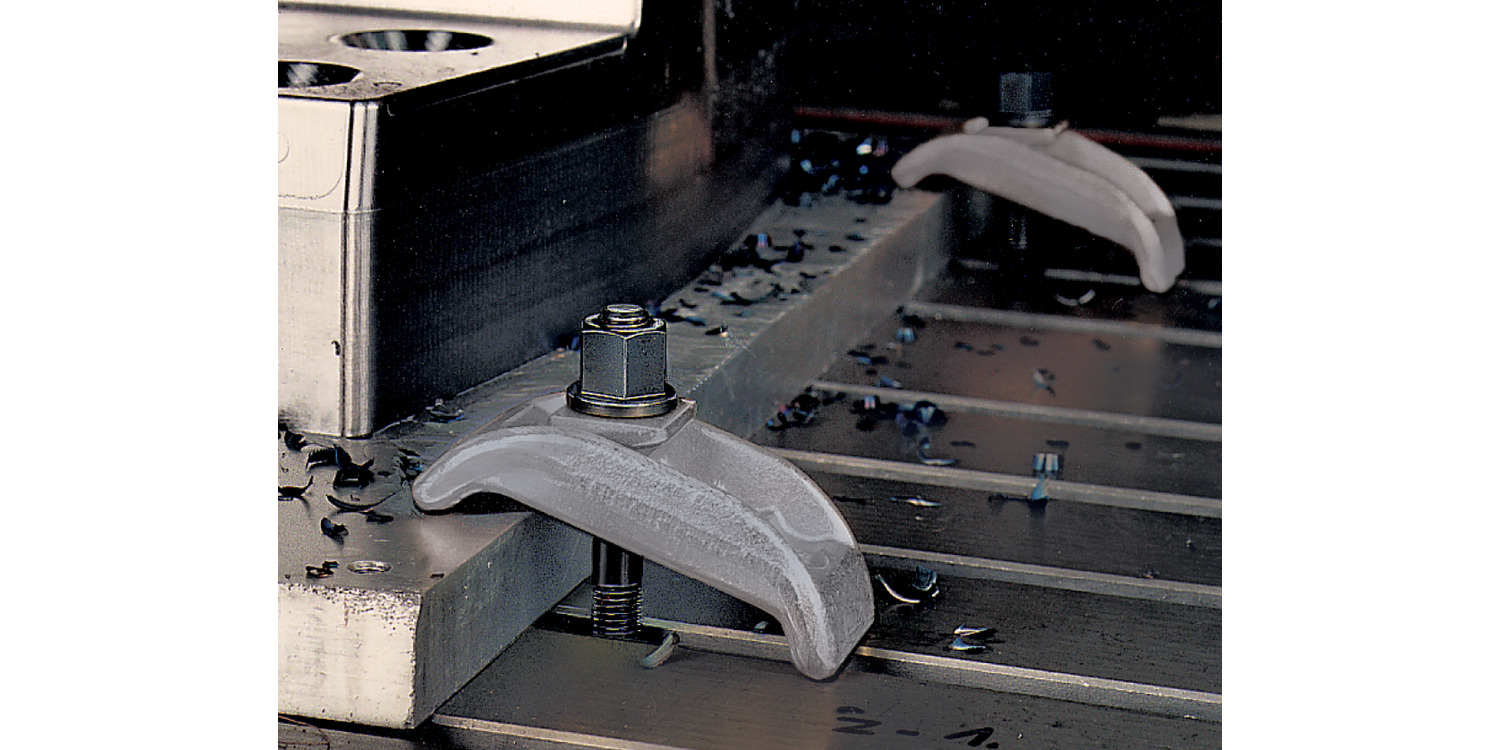

Application images
