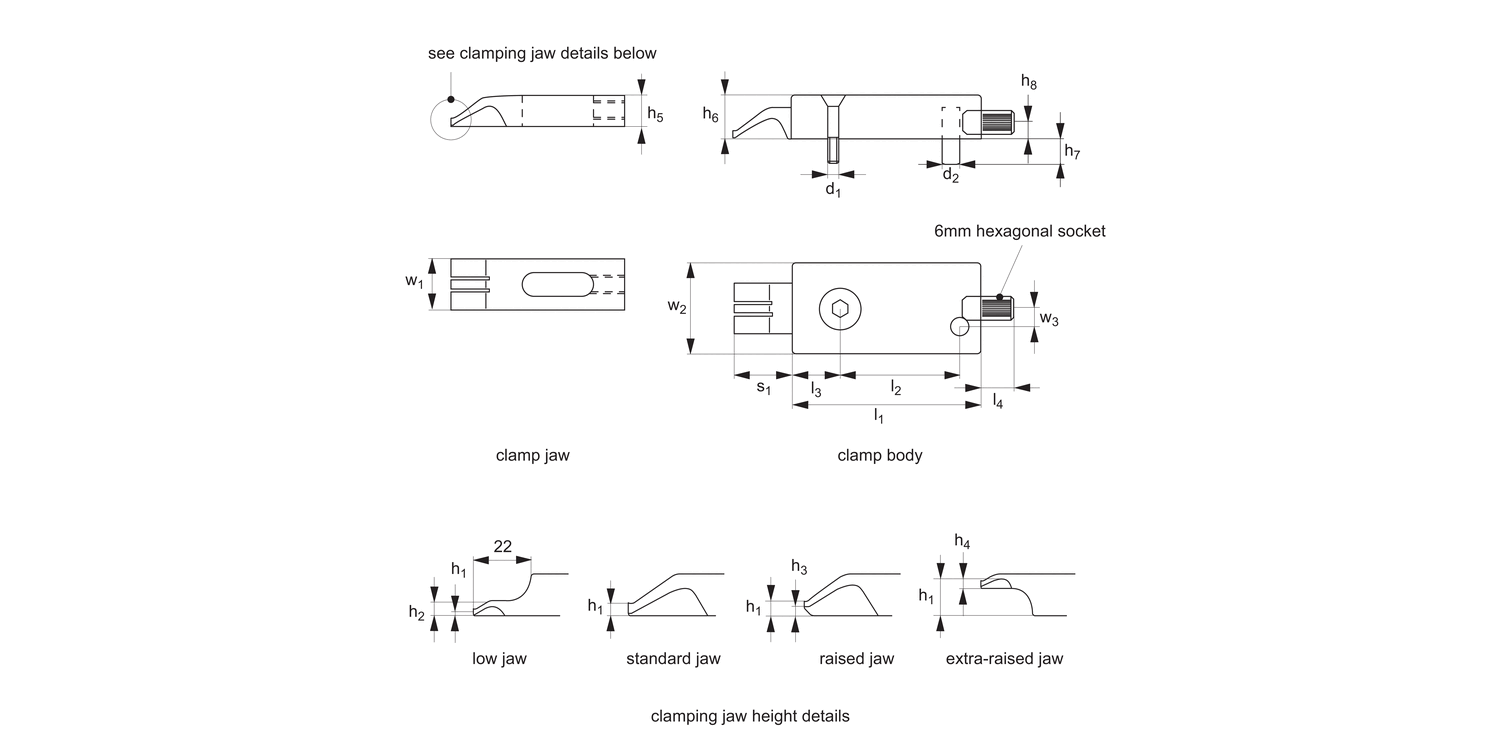

1.0 Ton Finger Clamps
for fixtures
11081 1.0 Ton Finger Clamps
for T-slots, material: Spring steel
Order No.
11081.W0610
Type
Standard Jaw
Clamp stroke
-
s1
-
w1
28
d1
-
d2
-
h1
2.5
h2
-
h3
-
l1
-
l2
-
h4
-
l3
-
h5
17
l4
-
h6
-
h7
-
h8
-
w2
-
w3
-
Clamping torque
Nm
-
Clamping force
kN
-
£ 131.75 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 131.75 | 0% |
| 5-9 | £ 125.16 | 5% |
| 10-19 | £ 118.58 | 10% |
| 20+ | £ 111.99 | 15% |
Technical & Application
Material
Jaw: spring steel.
Body: aluminium.
Technical Notes
These clamps have a unique sideways and downwards action.
Please see part no. 11082 for fixed stops.
Tips
Provided location bolts - M10, M12.
Clamp and body supplied separately. To order please select clamp body (part nos. 11081.W0065 or .W0068) then the clamping jaw most suitable for your application (11081.W0610 to .W0625).
Product Datasheets

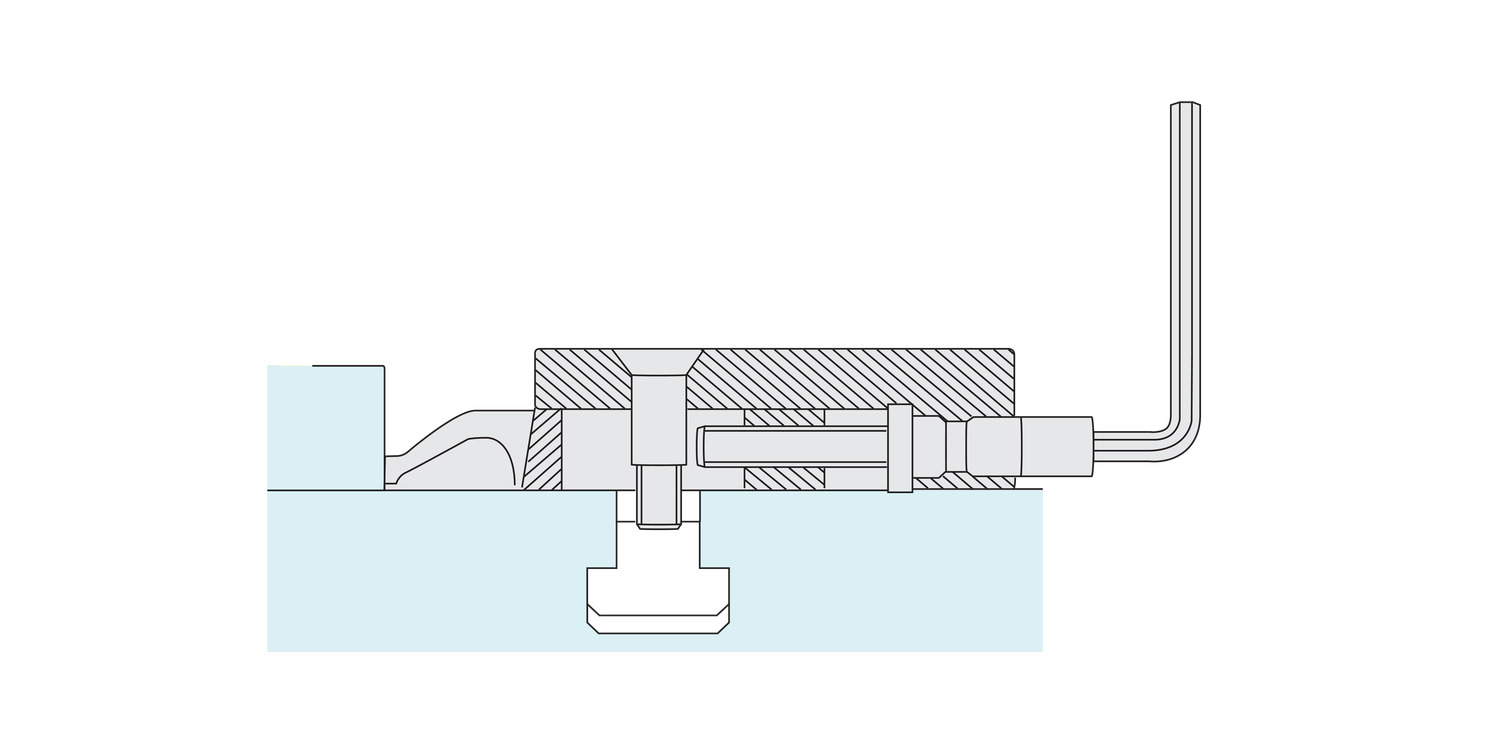

Application images
