1.0 Ton Finger Clamps
for fixtures

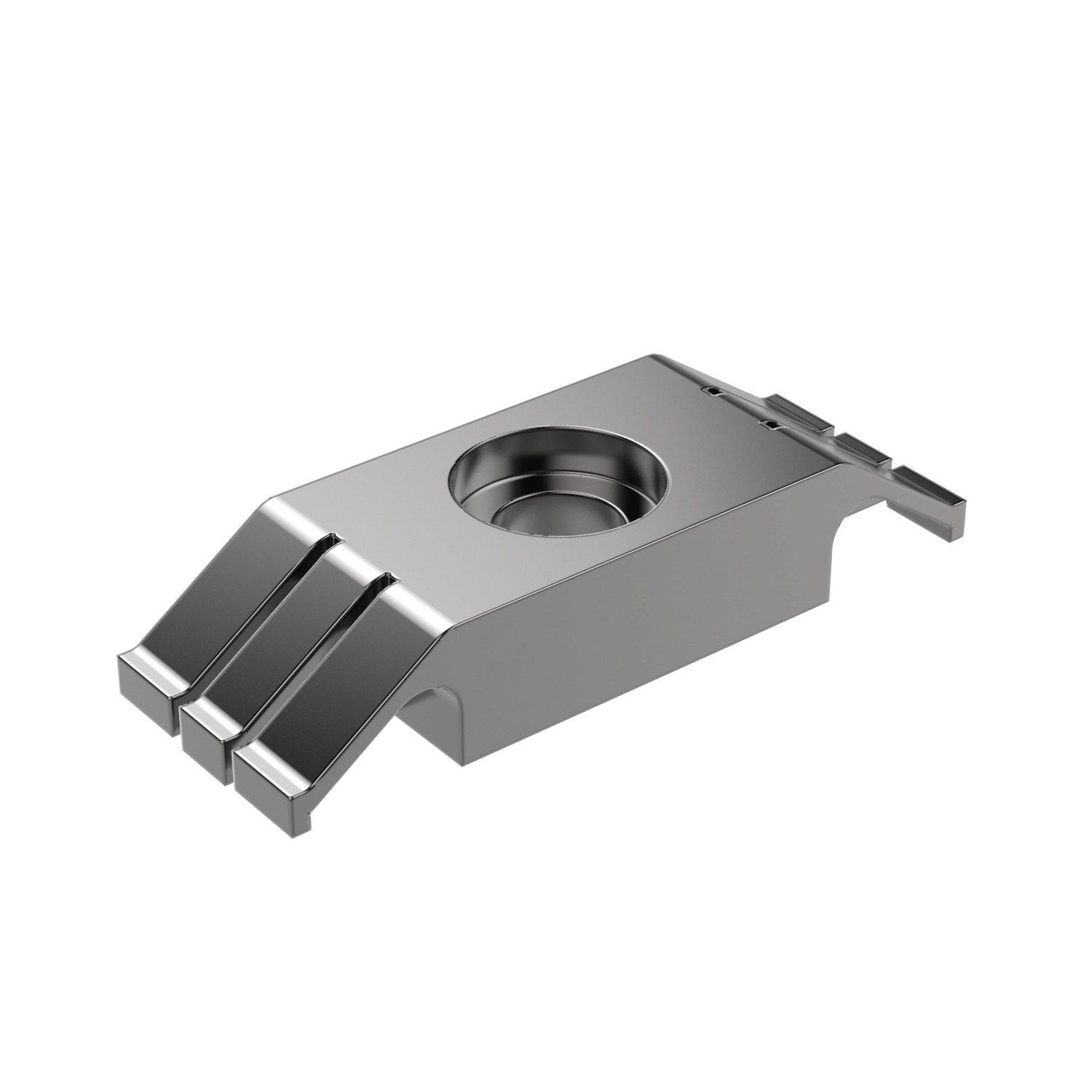

11082 1.0 Ton Fixed Stops
for 1 ton finger clamps, material: Hardened steel
Order No.
11082.W0140
Type
Single

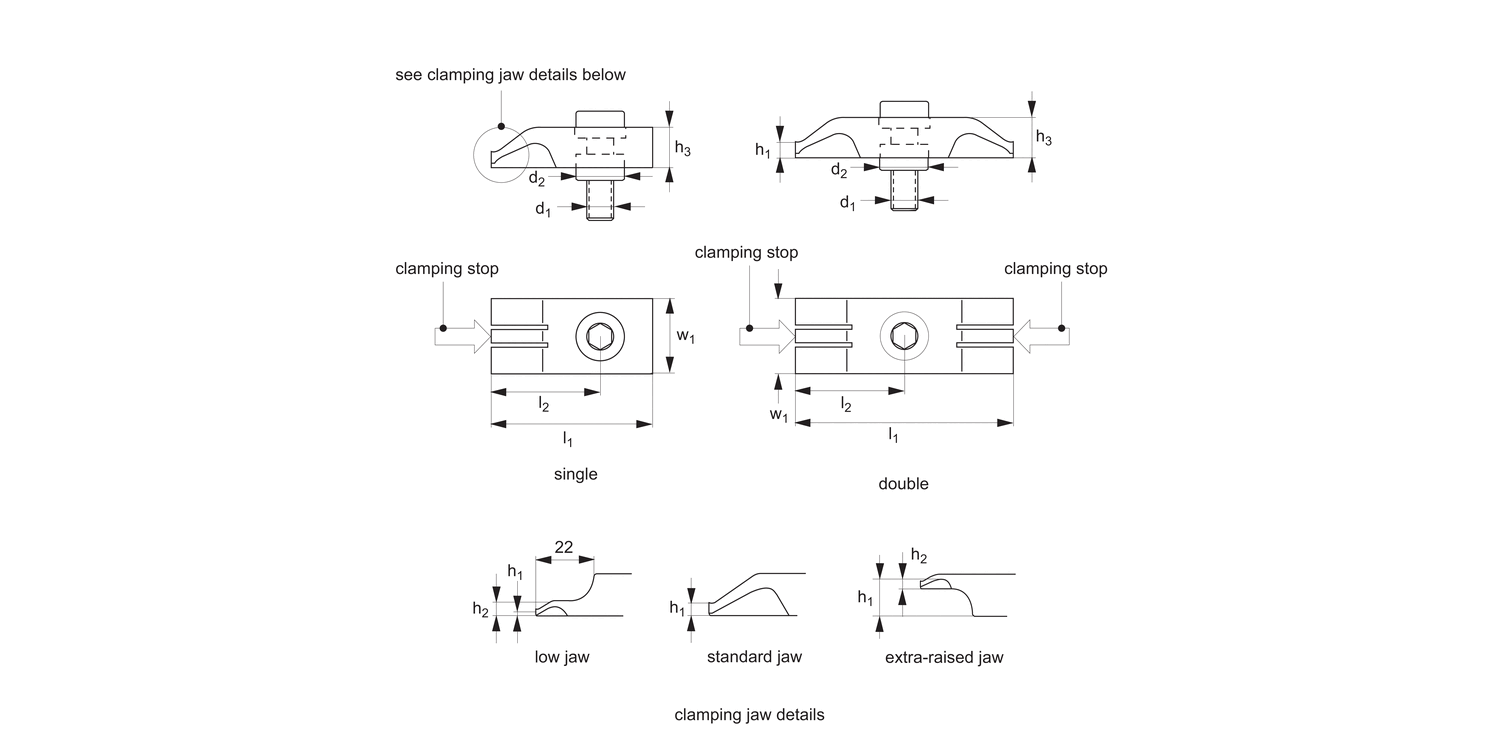

Jaw height h1
4.7
Jaw type
Standard
w1
28
d1
M10
d2
18
h2
-
h3
15
l1
60
l2
40
£ 166.32 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 166.32 | 0% |
| 5-9 | £ 158.00 | 5% |
| 10-19 | £ 149.69 | 10% |
| 20+ | £ 141.37 | 15% |
Technical & Application
Material
Hardened steel, with spring steel clamping element.
Technical Notes
A low height, very powerful compact clamp stop.
Tips
Supplied with clamping screw and Ø18 centering bush. When used longitudinally along a T-slot it is advisable to use anti-slip T-nuts or additional stops to resist the force exerted by the clamping element.
For use with part nos. 11080 and 11081.
Fitting instruction:
Tap M10/M12 counterbore 18,00 (H7) with depth 5mm.
Product Datasheets

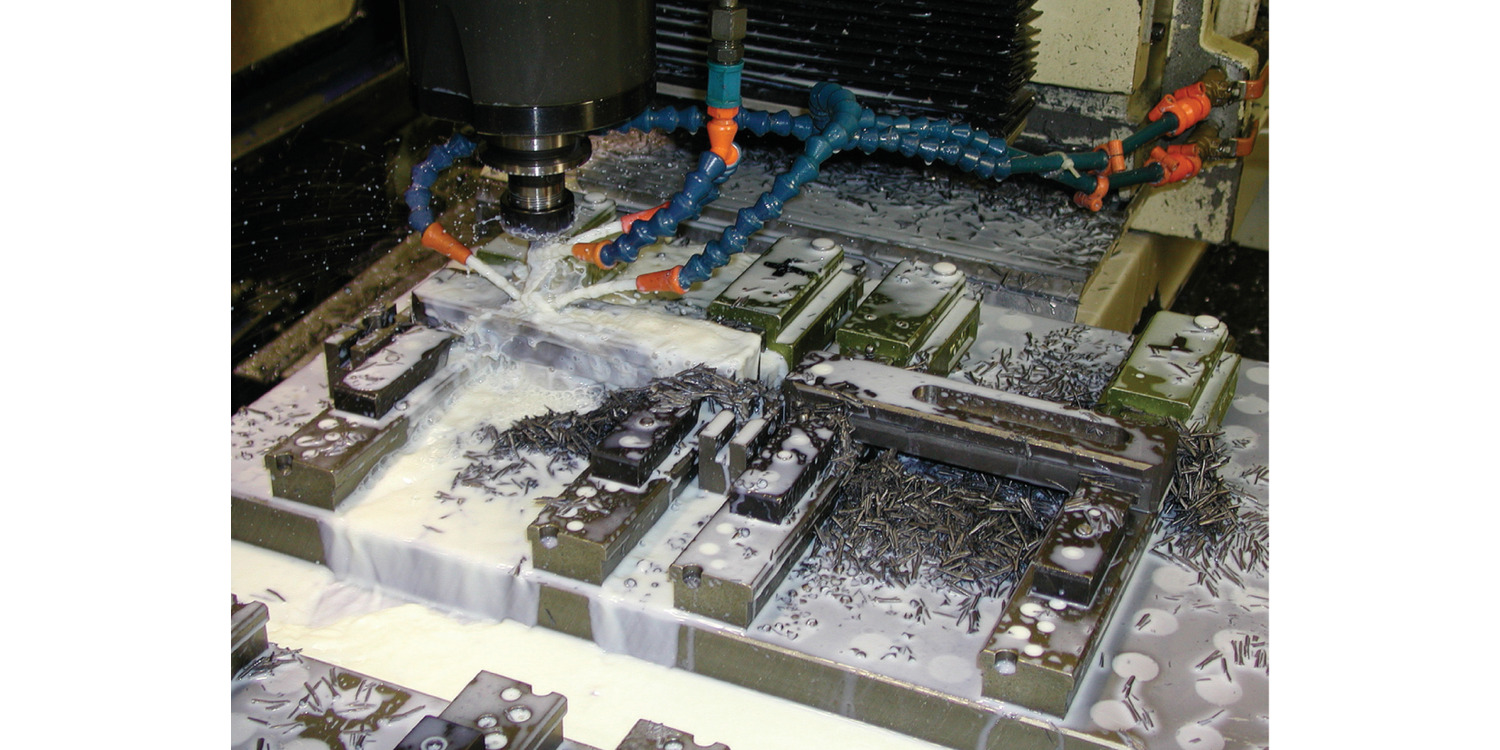

Application images
