Swing Clamps

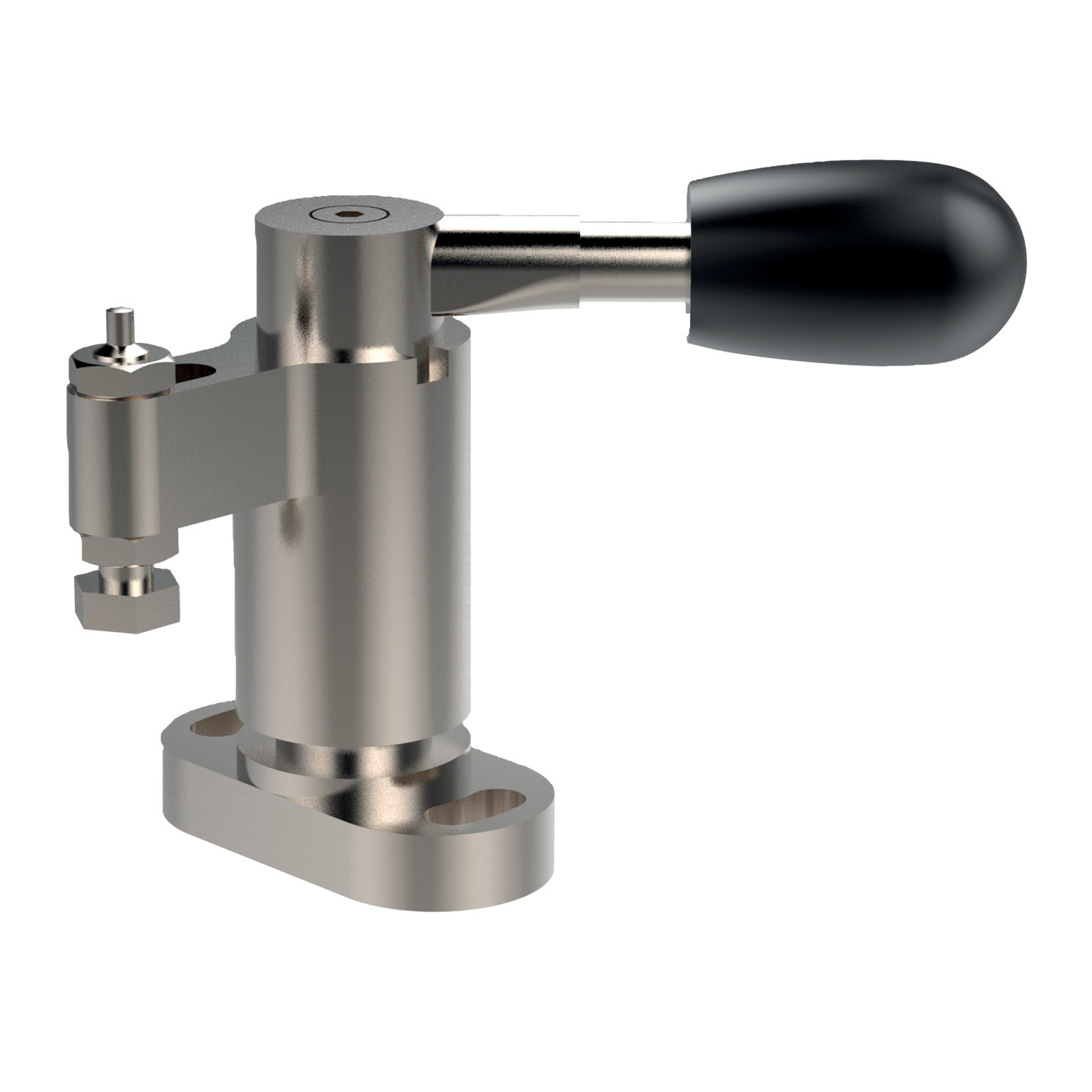

12562.2 Swing Clamps
material: Steel
Order No.
12562.W0351
Clamping direction
Counter Clockwise
Clamping height finished surface
min.
32,5 (31,7~33,2)
Clamping height finished surface
max.
39,0 (38,2~39,7)
Clamping height rough surface
min.
33,5 (32,7~34,2)
Clamping height rough surface
max.
40,0 (39,2~40,7)

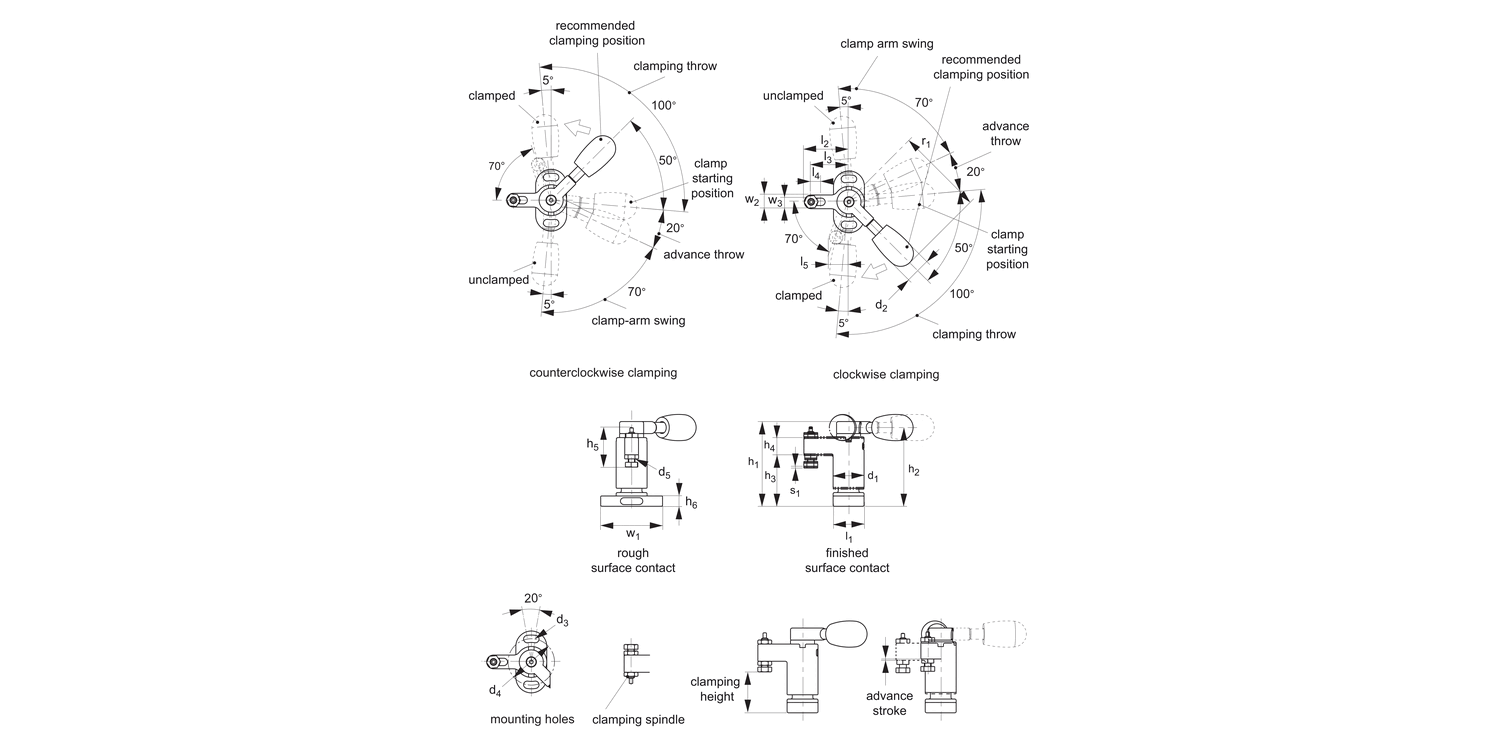

h1
82
h2
76.5
h3
50
h4
18
h5
45.5
h6
12
l1
30
l2
45
Weight
g
570
l3
37
l4
8
l5
20.7
d1
30
d2
26
d3
8.4
d4
48
d5
M 8x1,25
r1
80
w1
65
w2
16
w3
8.4
Clamping force
max.
kN
2.2
Clamping mechanism
Spiral Cam, Cam Angle 4°
Clamping stroke s1
1.5
Advance stroke s2
1.4
Operating load
max.
N
200
£ 306.95 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 306.95 | 0% |
| 10-19 | £ 276.26 | 10% |
| 20-49 | £ 260.91 | 15% |
| 50-99 | £ 245.56 | 20% |
| 100+ | £ 214.87 | 30% |
Technical & Application
Material
Body, handle, clamping spindle: steel (C45), quenched and tempered, electroless nickel plated.
Arm, cam shaft: steel (42CrMo4), quenched and tempered, electroless nickel plated.
Knob: phenolic plastic, black.
Tips
Clamping height can be adjusted. The parenthesised values denote clamping height range.
