Swing Clamps

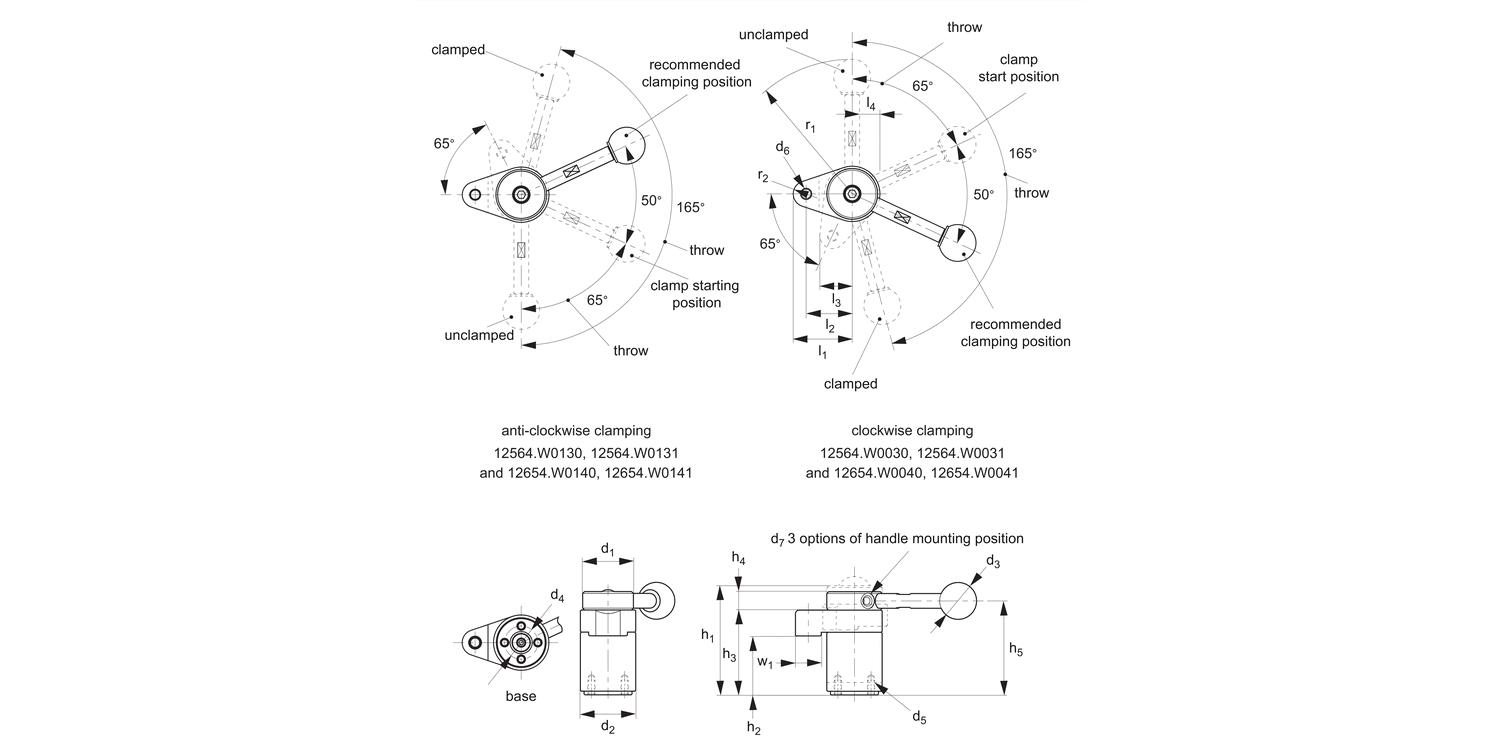

12564.1 Swing Clamps
material: Steel
Order No.
12564.W0041
Clamping direction
Clockwise
Type
Without handle
h1
78.1
h2
45 (44,1~45,9)
h3
63
h4
13
h5
69.5
l1
40
l2
32
l3
21.5
Weight
g
660
l4
20
d1
40
d2
38
d3
25
d4
25
d5
M 6x1,0 Depth 12
d6
M 8x1,25
d7
M 6x1,0
r1
107
r2
8
w1
16
Clamping force
max.
kN
1.2
Clamping mechanism
Spiral Cam, 4°
Handle load
max.
N
200
£ 404.89 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 404.89 | 0% |
| 10-19 | £ 364.40 | 10% |
| 20-49 | £ 344.16 | 15% |
| 50-99 | £ 323.91 | 20% |
| 100+ | £ 283.42 | 30% |
Technical & Application
Material
Body, shaft: steel (42CrMo), tempered and black oxide finish.
Clamp arm, adaptor head: steel (C45), tempered and black oxide finish.
Handle: steel (C45), black oxide finish.
Ball knob: ABS resin, black.
Technical Notes
When installing a pad on the clamp arm, lock the clamp arm using a wrench to prevent the clamp from receiving any torque.
Clamping height can be adjusted. The values in brackets shows clamping height range.
Tips
For parts 12564.W0031, 12564.W0131, 12564.W0041 and 12564.W0141 the handle must be ordered separately.
Product Datasheets
Application images
