Swing Clamps

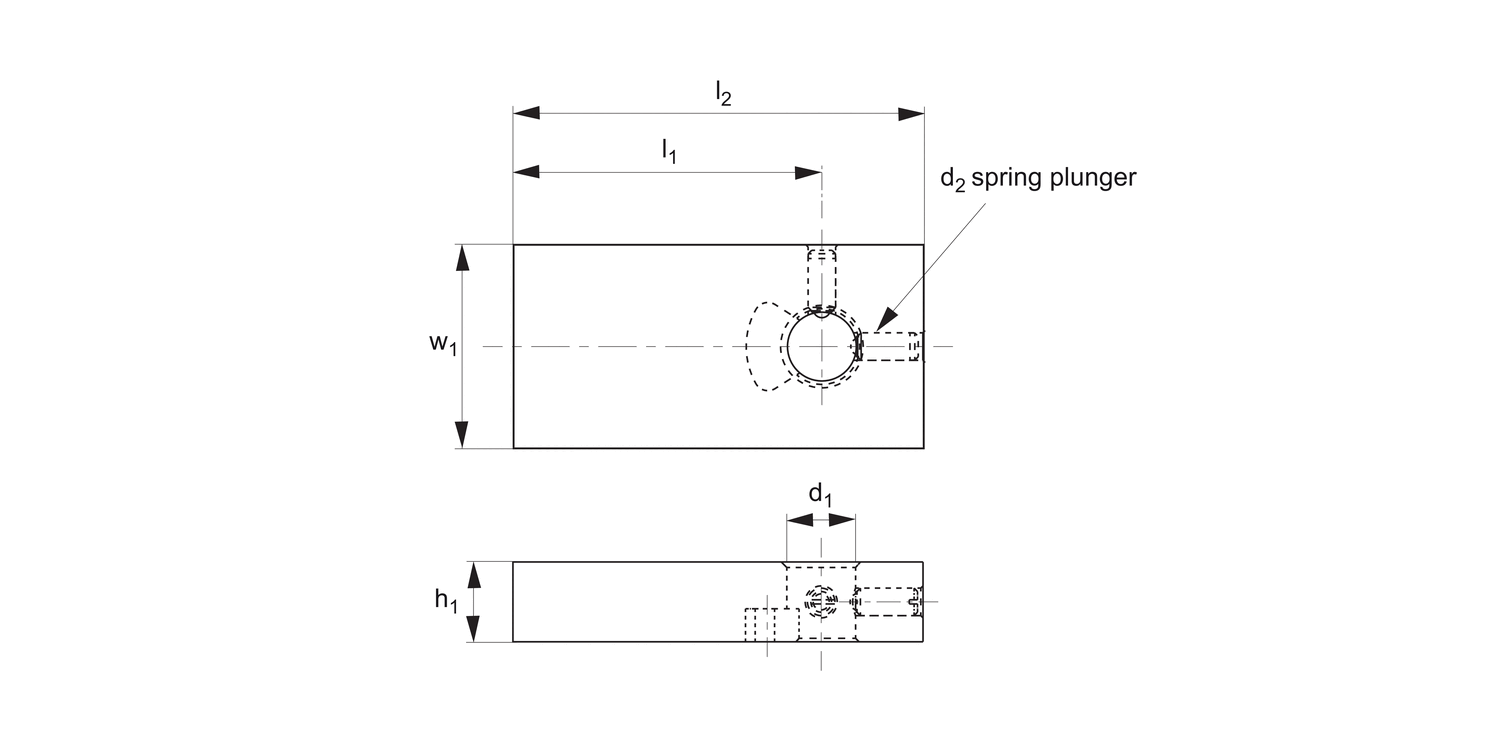

12564.2 Machineable Clamp Arms
for use with 12564.W0030 - .W0141, material: Steel
Order No.
12564.W0440
h1
16
l1
55
l2
75
d1
16
d2
M 5
w1
40
To suit clamp 12564
.W004x and .W014x
Weight of clamping prd.
max.
g
100
Weight
g
330
£ 111.04 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 111.04 | 0% |
| 10-19 | £ 99.94 | 10% |
| 20-49 | £ 94.38 | 15% |
| 50-99 | £ 88.83 | 20% |
| 100+ | £ 77.73 | 30% |
Technical & Application
Material
Steel (C45), black oxide finish.
Technical Notes

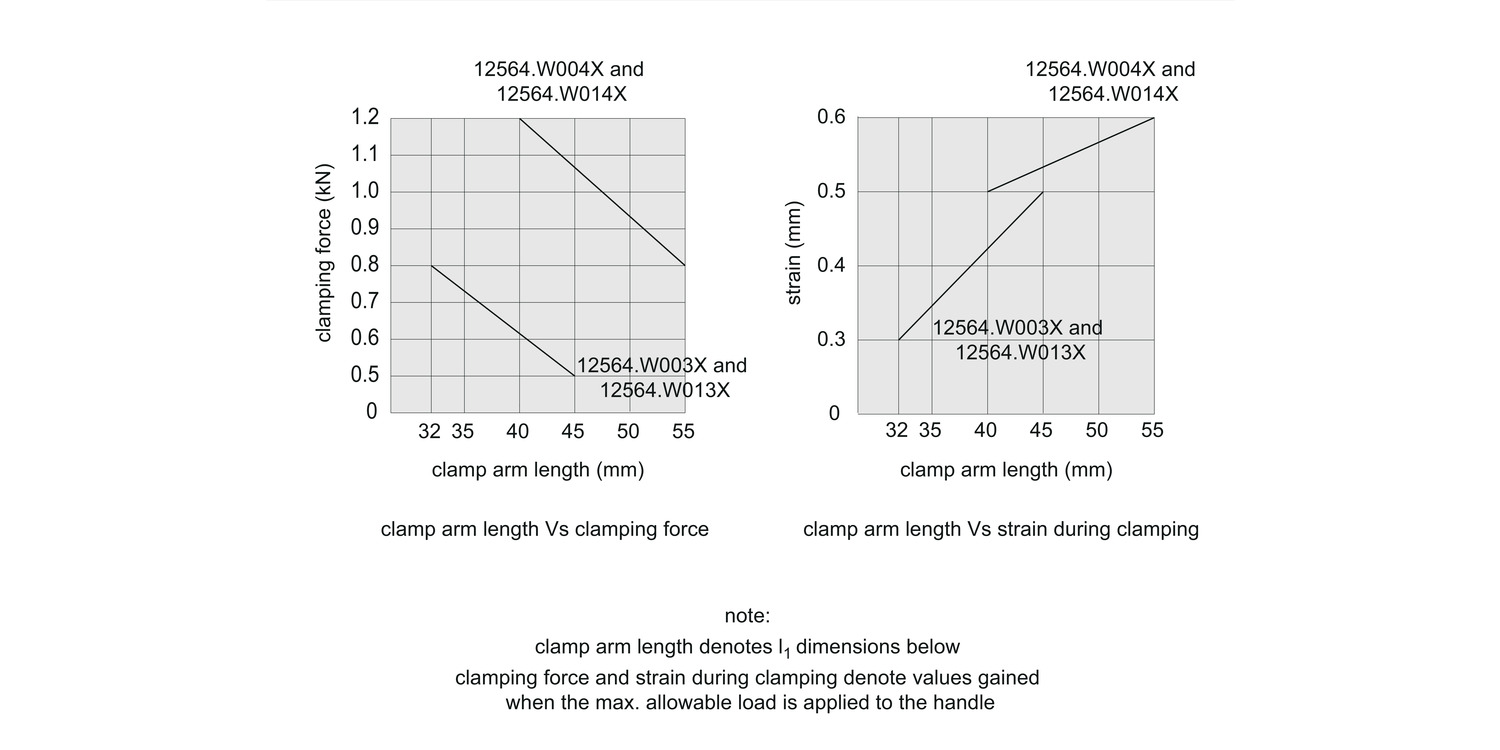

Clamp arm length denotes l1 dimensions.
Clamping force and strain during clamping denote values gained when the maximum allowable load is applied to the handle.
Product Datasheets
Application images
