Thrust Clamps
vertical acting

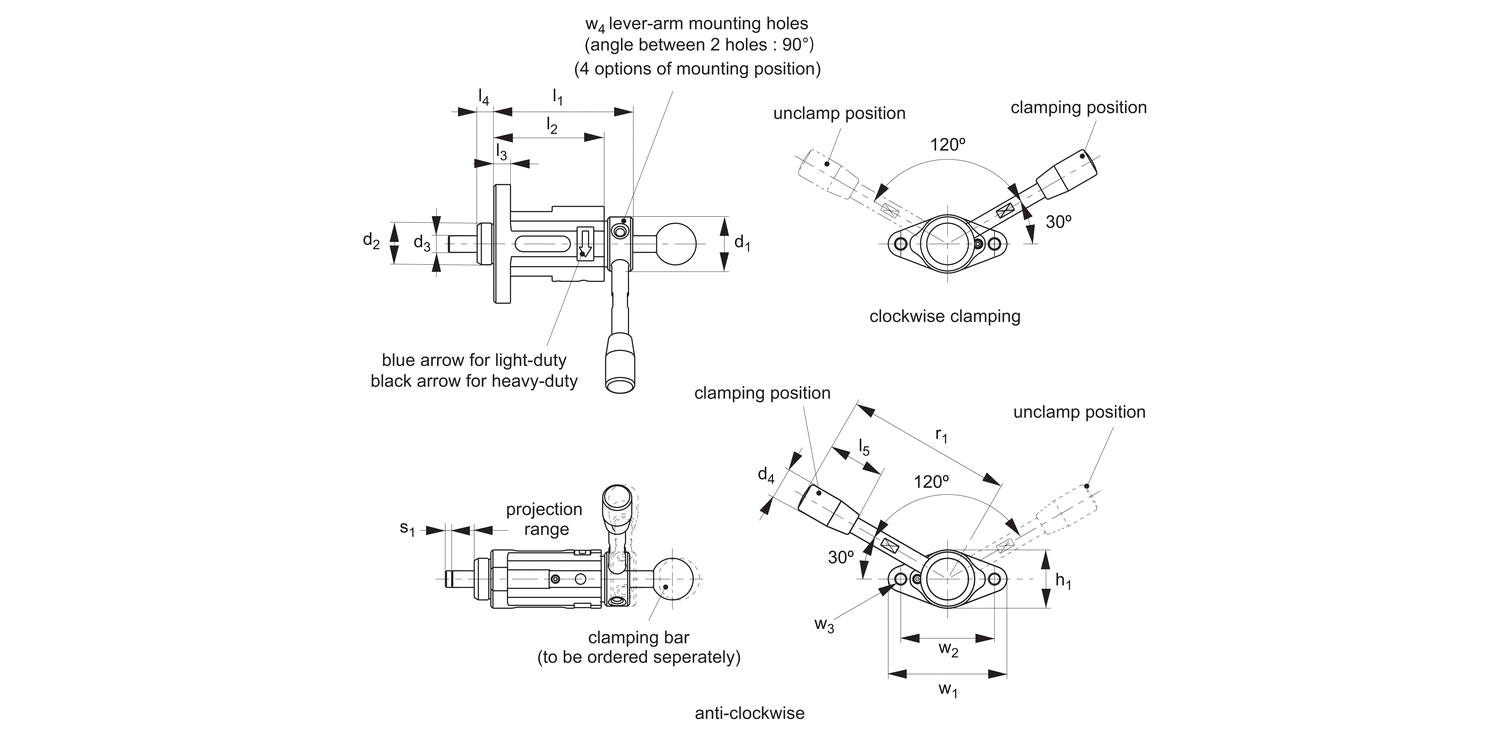

12615 Vertical Acting Thrust Clamps
material: Steel
Order No.
12615.W0112
Type
Heavy Duty
Clamping direction
Anti Clockwise
d1
36
d2
30
d3
12
d4
21
h1
40
l1
90.7
l2
72
l3
12
Weight
g
930
l4
12
l5
50
r1
132
w1
85
w2
65
w3
M10x1,5 (Pre-drill 8,5)
w4
M 6x1
Clamping stroke s1
2.3
Handle load
max.
N
100
Clamping force
max.
kN
0.5
Clamping releasing force
kN
F<0,7
£ 329.14 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 329.14 | 0% |
| 10-19 | £ 296.23 | 10% |
| 20-49 | £ 279.77 | 15% |
| 50-99 | £ 263.31 | 20% |
| 100+ | £ 230.40 | 30% |
Technical & Application
Material
Body/lever arm: steel (C45), black oxide finish.
Cam: steel (C45), carburized-hardened, black oxide finish.
Handle: phenolic plastic, black matt. Clamping handle is not included.
Technical Notes
Can be used in both vertical and horizontal clamping applications.
Spring-loaded clamp that provides constant clamping force.
Long clamping-bar projection range allows clamping of a recessed part.
When using your own clamping bar, ensure that the diameter is finished to a H9 or better tolerance.
Tips

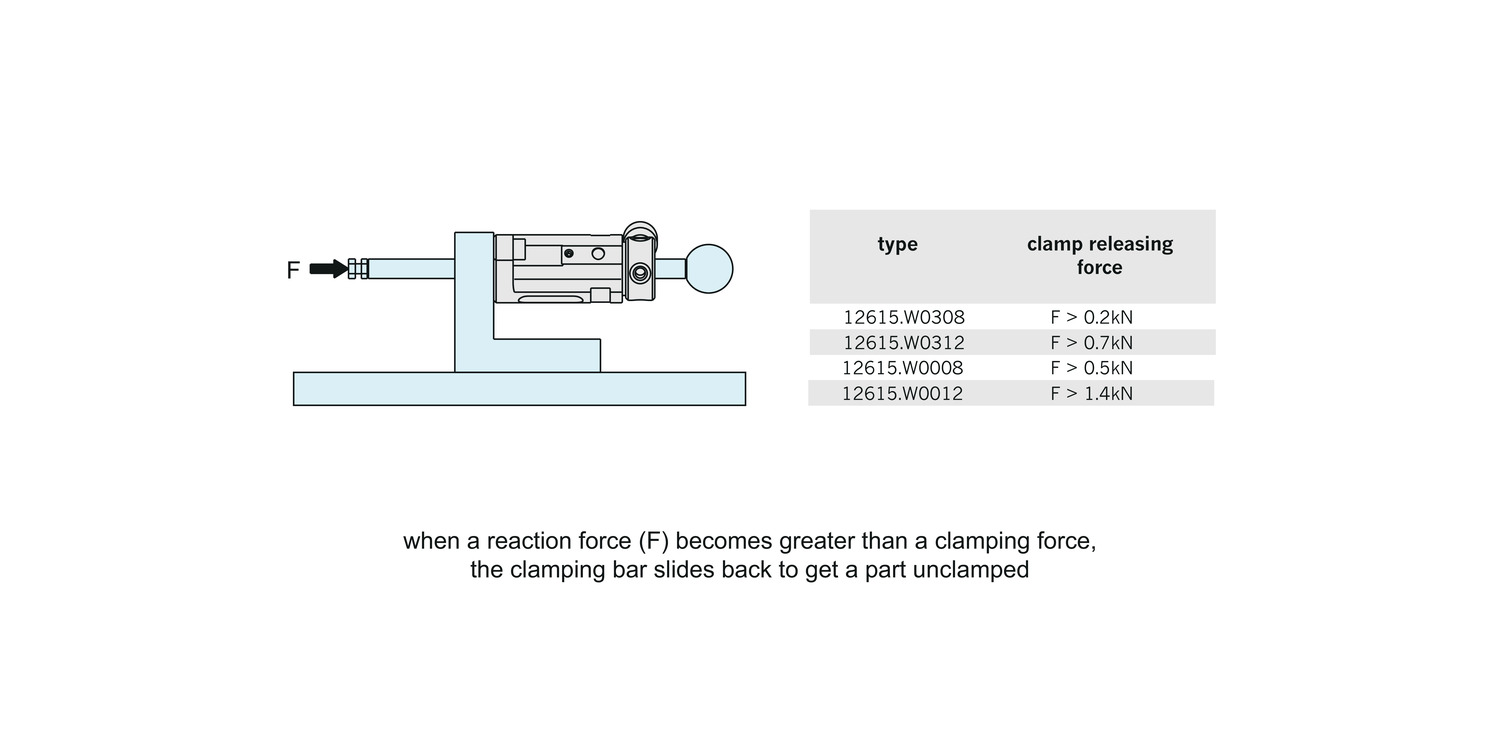

When a reaction force (F) becomes greater than clamping force, the clamping bar slides back, unclamping the part.
Product Datasheets
Application images
