Pull Clamps

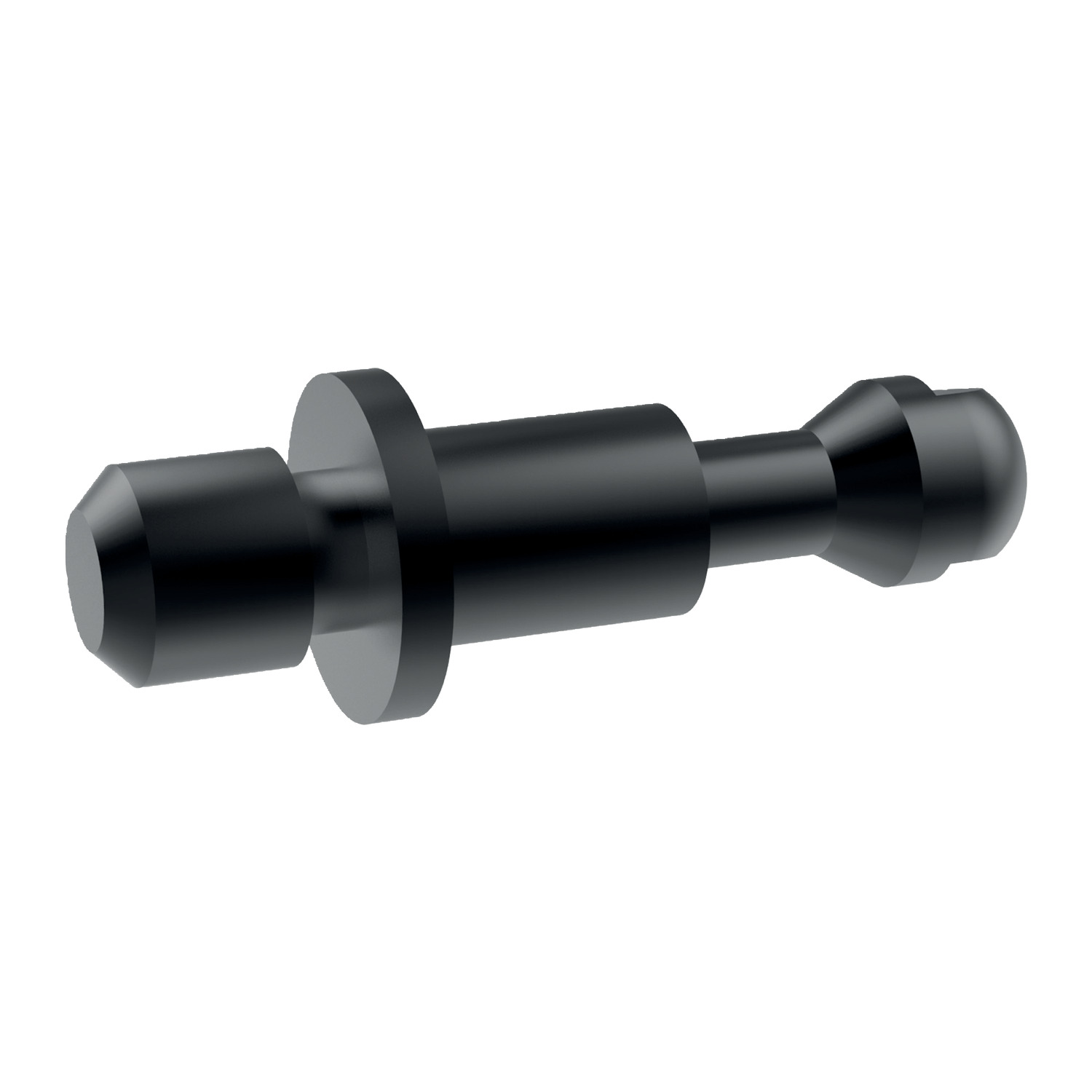

12620.2 Clamping Screws
for pull clamps, material: Steel
Order No.
12620.W0382

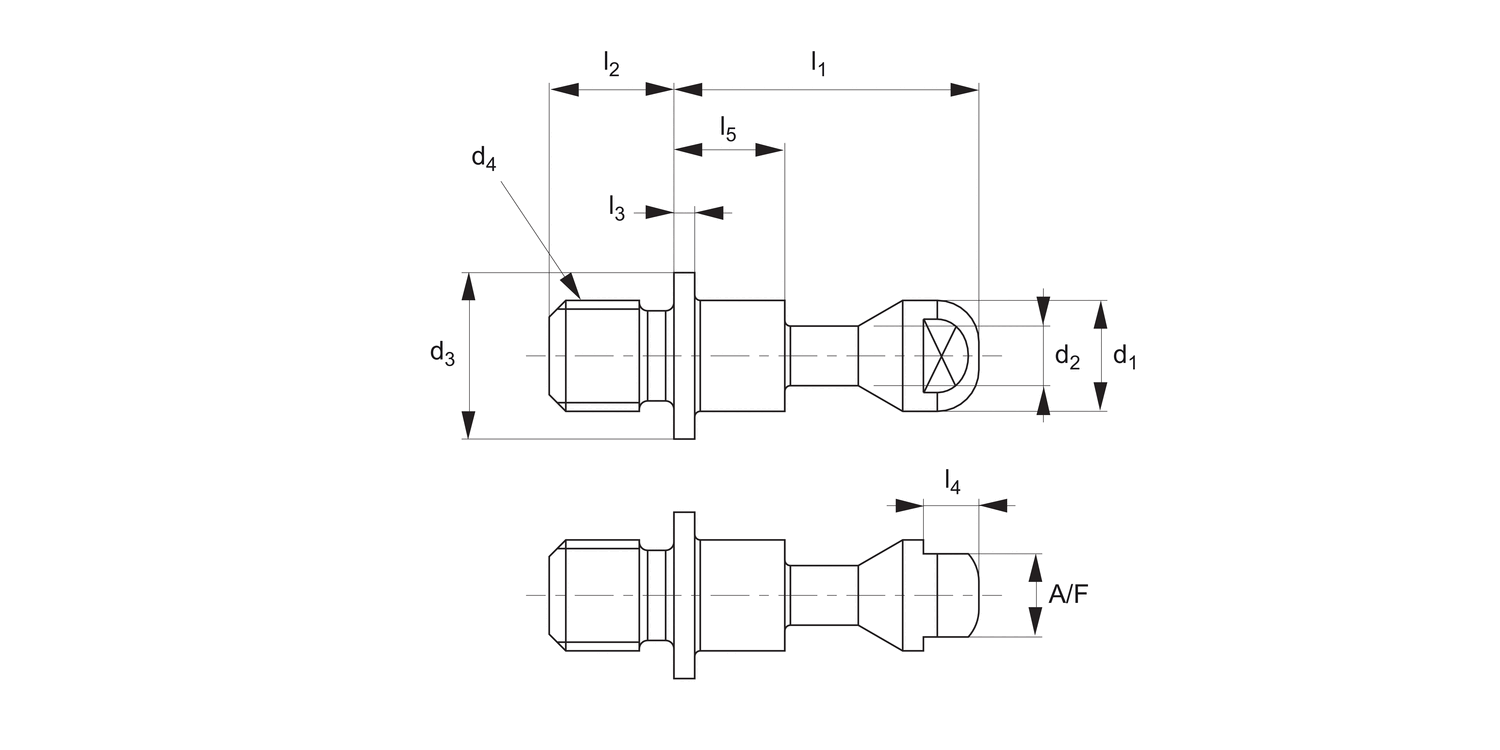

d1
8
d2
4.3
d3
12
d4
M10x1,5
l1
22
l2
11
l3
1.5
l4
4.0
A/F
6
Weight
g
13
£ 36.44 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 36.44 | 0% |
| 10-19 | £ 32.80 | 10% |
| 20-49 | £ 30.97 | 15% |
| 50-99 | £ 29.15 | 20% |
| 100+ | £ 25.51 | 30% |
Technical & Application
Material
Steel (35CrMo), tempered and black oxide finish.
Technical Notes
Used with Pull clamp 12620.W0005- .W0108.
Recommended spacing tolerance between clamping screws ±0,2.
