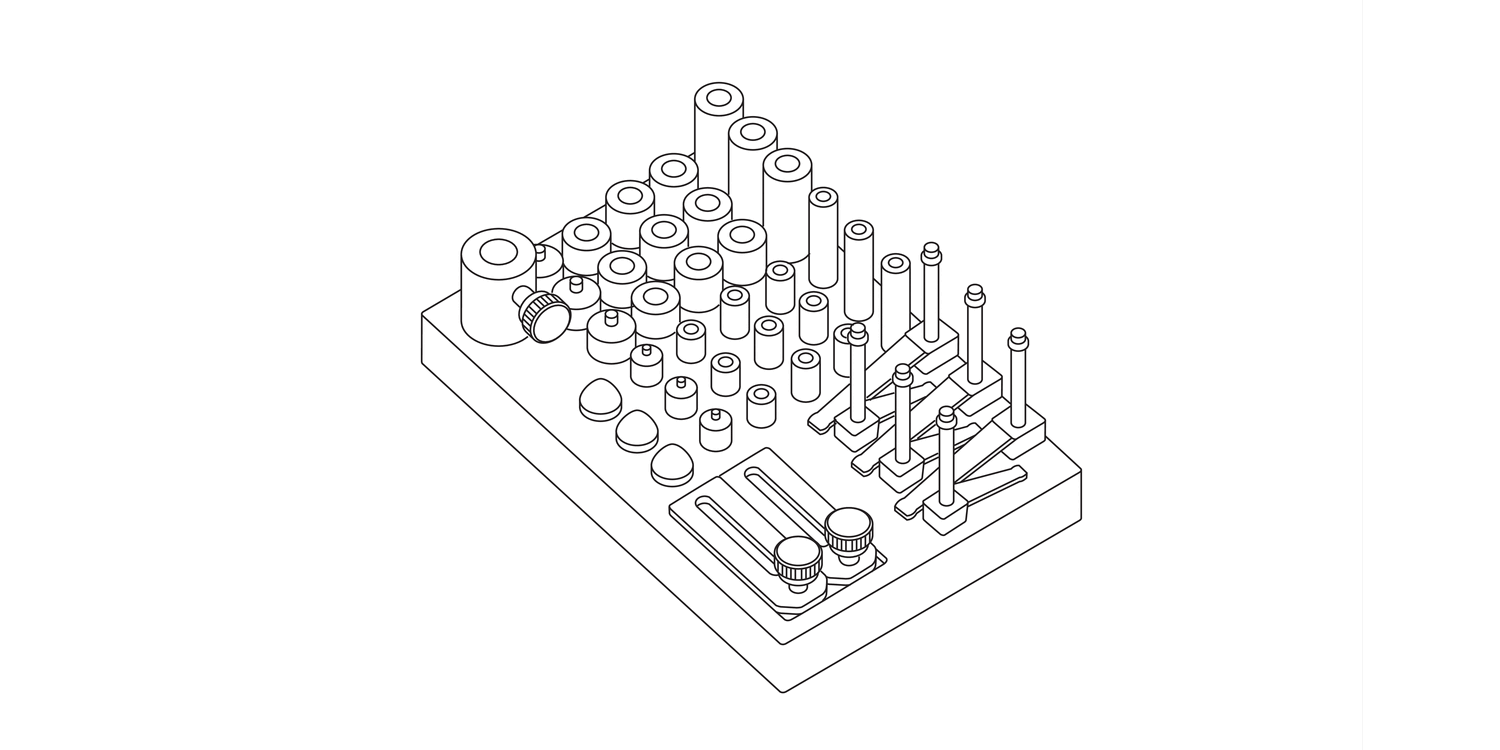

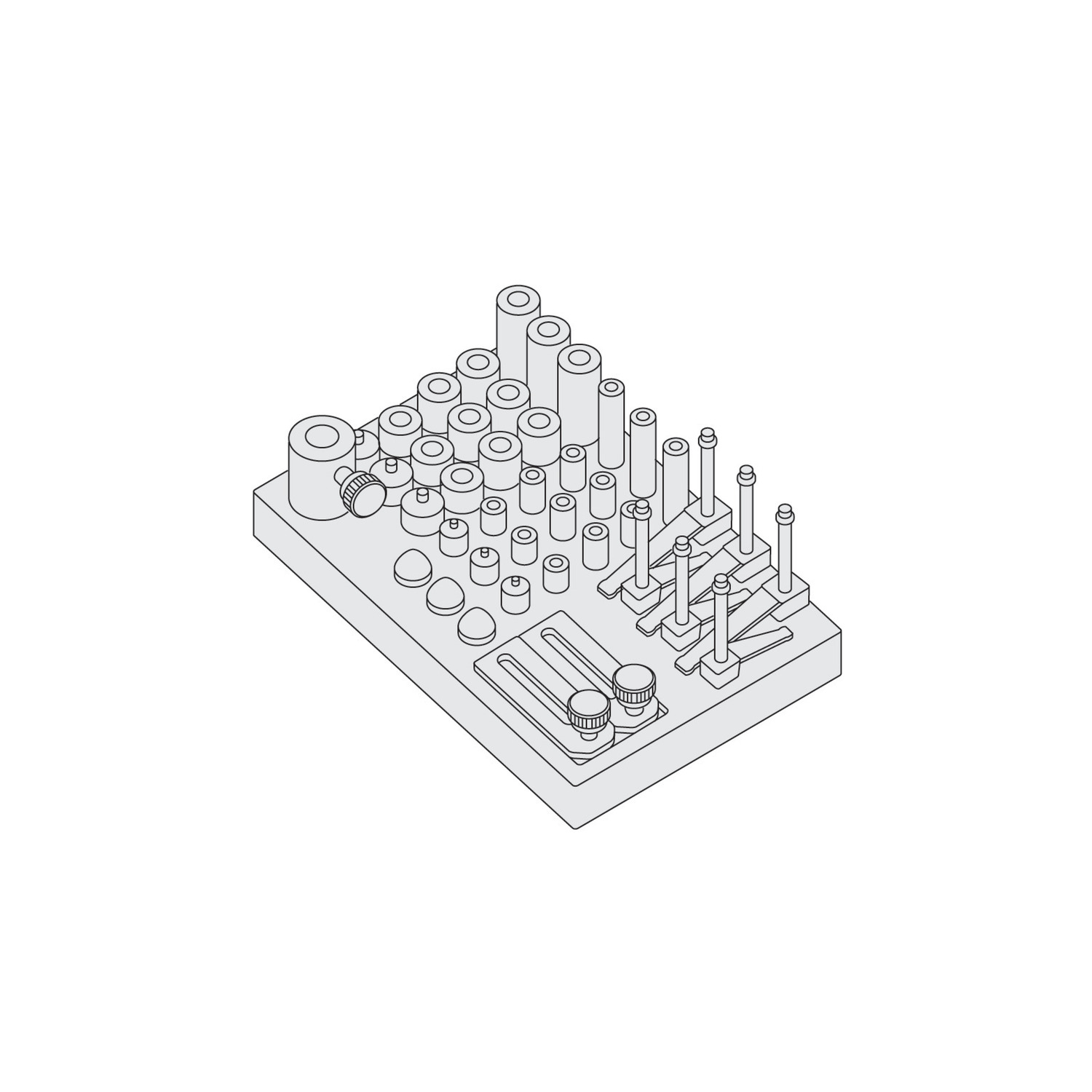

Basic CMM Fixturing Set
for M 8 threads
19310 Basic CMM Fixturing Set
for M 8 threads, material: Aluminium and plastic
Order No.
19310.W0008
Soft touch clamp 19320
.W0008 x 3pcs .W0012 x 3pcs
CMM fixturing stand-off 19330
.W1320 x 3pcs .W1325 x 6pcs .W1350 x 3pcs .W1920 x 3pcs .W1925 x 6pcs .W1950 x 3pcs
CMM fixturing stand-off with pin 19331
.W1325 x 3pcs .W1925 x 3pcs
CMM fixturing positioning cone 19332
.W001613 x 3pcs
CMM fixturing adj. positioner 19354
.W2835 x 2pcs
CMM fixturing stand-off adjustable 19350
.W0028 x 1pc
Weight
g
2800
£ 1,795.37 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-2 | £ 1,795.37 | 0% |
| 3-4 | £ 1,705.60 | 5% |
| 5-9 | £ 1,615.83 | 10% |
| 10+ | £ 1,526.06 | 15% |
Technical & Application
Technical Notes
Designed for clamping non-magnetic parts on CMM tables.
Important Notes
M 8 coarse thread. Basic set of workholding components for fixturing of components on CMMs. Components are of lightweight materials: aluminium, plastic etc. to avoid damage to components. Supplied on wooden holder for easy and tidy storage. For CMM fixturing plates and towers see 19300 and 19302.
