6" Single Station Parlec Vice
machinable jaws
19756 Double Station Vice
ReLock 2 - with hard jaws, material: Cast iron
Order No.
19756.W0004
Vice size
4"
Set contents
Vice - 1 x 19752.W0004,
Carrier jaws - 1 x 19796.W0403,
Hard jaws - 1 x 19892.W0401
Clamping pressure
max.
lb
6000
Jaw capacity
3,00 to 16,00

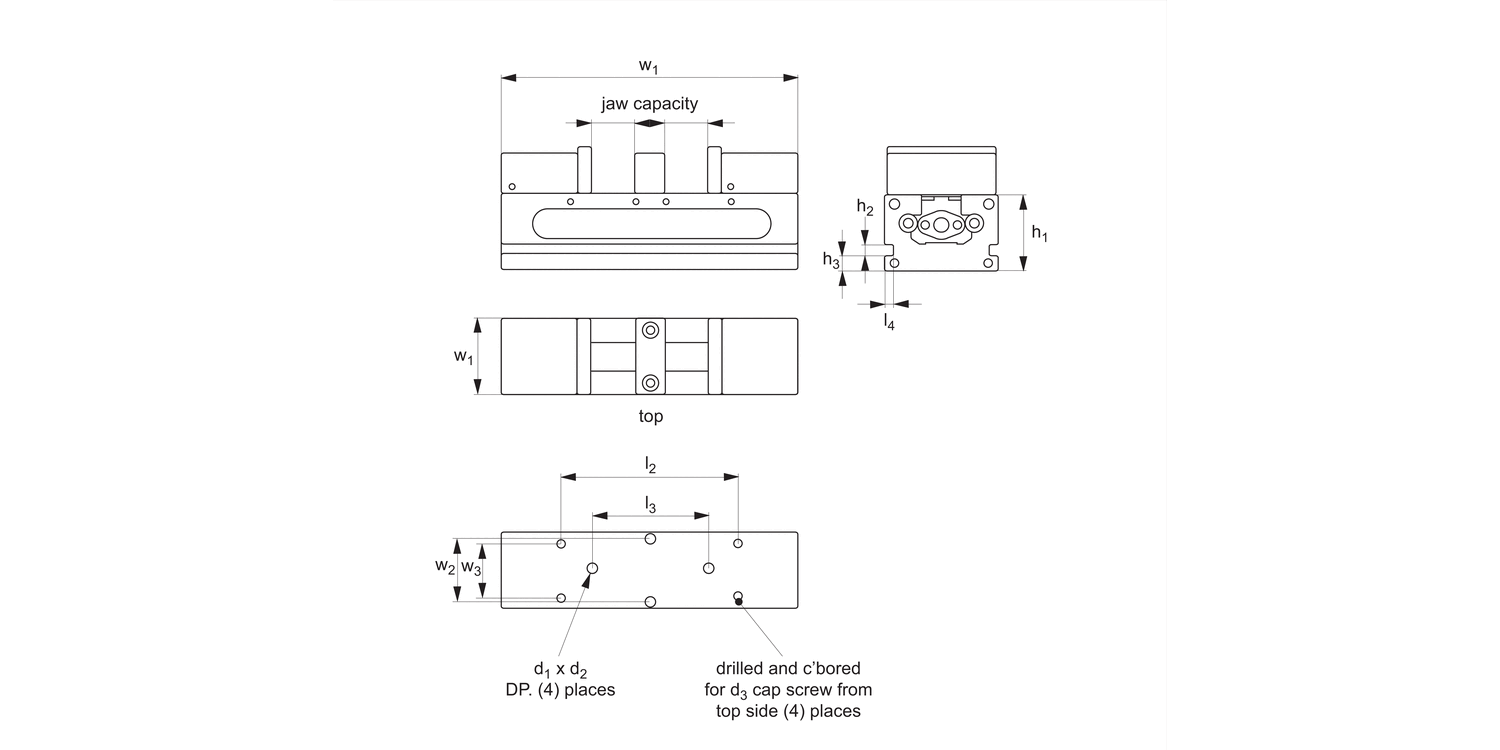

h1
±0.0005
2.50
l1
16.0
w1
+0.000|-0.002
4
h2
0.375
h3
0.50
d1
0.501
d2
0.56
d3
5/16-18
l2
9
l3
±0.001
10
l4
0.190
w2
±0.03
3
w3
3
£ 3,320.66 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1+ | £ 3,320.66 |
Technical & Application
Material
Body: 80000 PSI ductile cast iron.
Sideways flame hardened to 40 HRc max.
Carrier jaws: aluminium.
Hard jaws: steel.
Technical Notes
Replacement parts available.
Tips
Supplied with actuation handle, hex key and wrench.
Important Notes
All dimensions are in inches.
