Ball Lock Pin
single acting, L-handle
33220.1 Ball Lock Pins - Single Acting - L-Handle
self-locking - stainless 1.4305, material: Stainless steel
Order No.
33220.W0125
Material
Stainless 1.4305

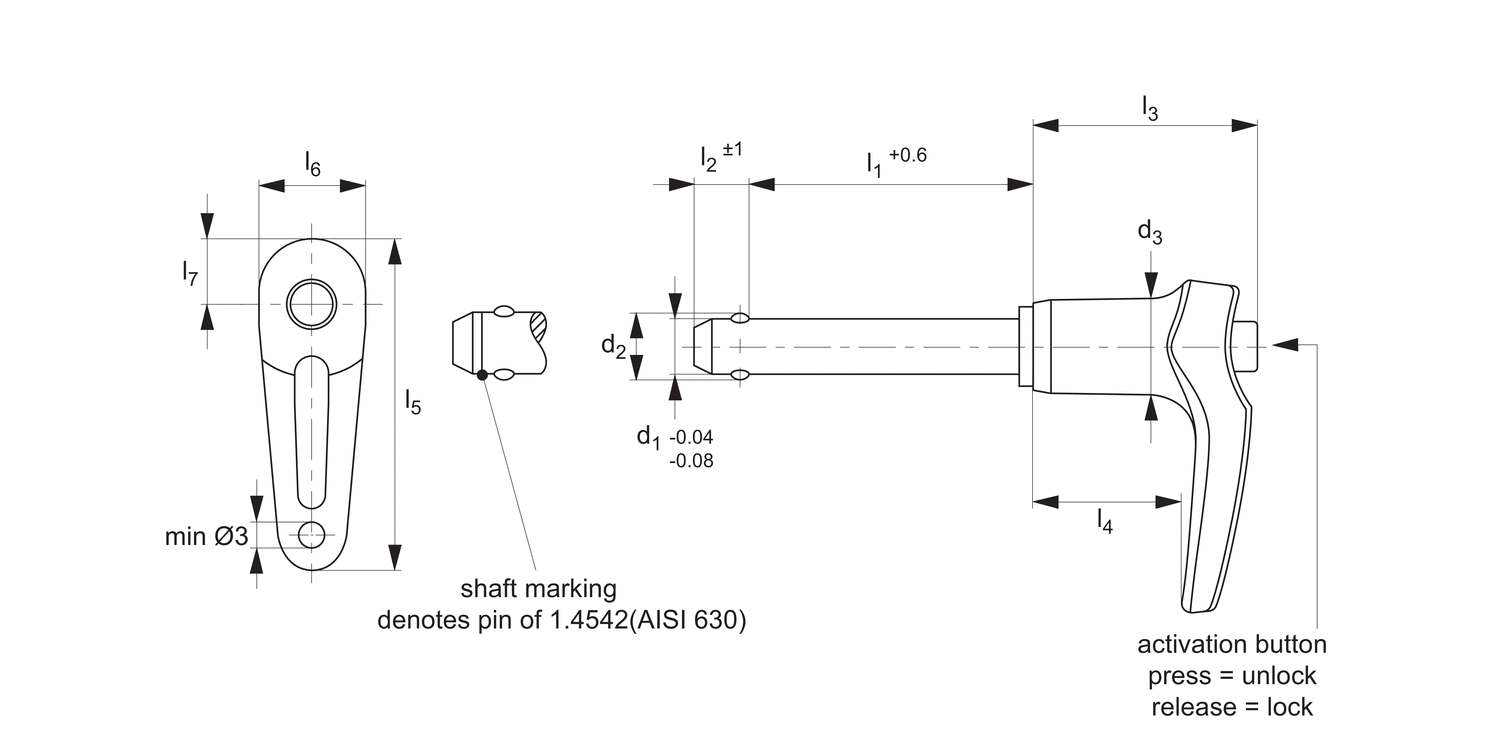

d1
6
l1
25
d2
7.0
d3
11.8
l2
7.0
l3
31.6
l4
21.9
l5
43.8
l6
12.6
l7
8.5
Location hole dia.
tol. H11
6
Shearing resistance
kN
21
Weight
g
24
£ 26.75 per unit (click for quantity discounts)
Ready to despatch 27
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 26.75 | 0% |
| 10-19 | £ 24.08 | 10% |
| 20-49 | £ 22.74 | 15% |
| 50-99 | £ 21.40 | 20% |
| 100+ | £ 18.73 | 30% |
Technical & Application
Material
Pin: stainless steel 1.4305 (AISI 303).
Ball: stainless steel 1.3541
Spring: stainless steel
Technical Notes
Pressing = unlocking.
Releasing = locking.
Temperature resistance -30°C to +150°C.
For quick fastening and locking of frequently repeated connections.
Tips
For lanyards & retaining cables see aprt no. 33250. Easy install locating bushes available see part no. 33248.
Important Notes
*Shearing resistance similar to DIN 50141.
