One-Touch Fastener
magnetic hold - pin
33950 One-Touch Fastener - Magnetic Hold
pin, material: Steel
Order No.
33950.W0006
For single panel thickness
2 to 6

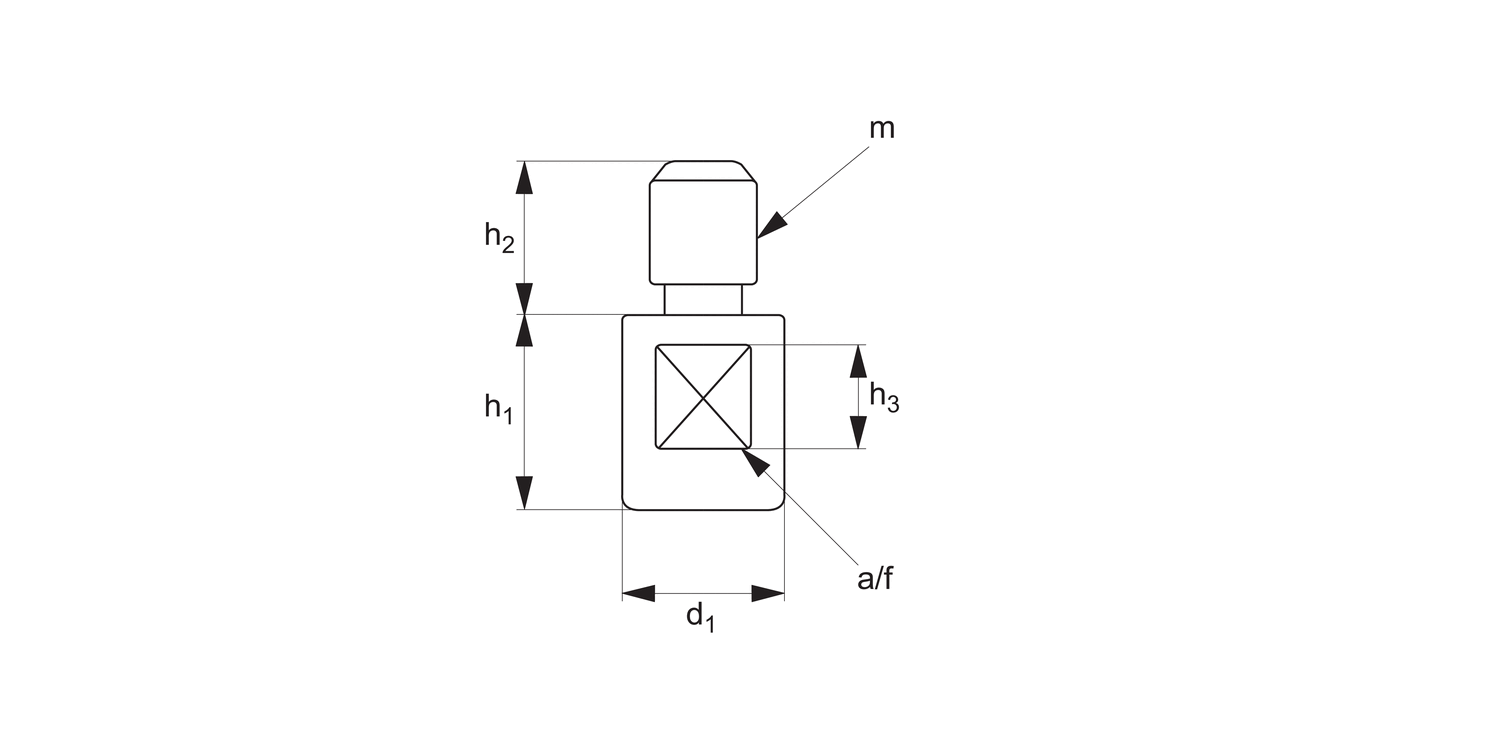

d1
-0.02|-0.04
Ø6
h1
7
h2
5.8
h3
4
m
M 4x0,7
A/F
5
Shear strength
N
900
Weight
g
2
£ 3.68 per unit (click for quantity discounts)
Ready to despatch 10
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 3.68 | 0% |
| 10-19 | £ 3.31 | 10% |
| 20-49 | £ 3.13 | 15% |
| 50-99 | £ 2.94 | 20% |
| 100+ | £ 2.58 | 30% |
Technical & Application
Material
Body: steel, nickel plated.
Technical Notes
Used in conjunction with magnetic one-touch fasteners 33956, provides secure fastening of panels and covers. One-touch fasteners are the ideal solution for applications requiring rapid and recurring change over of tooling or set ups. Use in applications as diverse as bottling processes, machine covers, changing of cogs and drive belts.
Note: pin itself is not magnetic, it is for use with locating bush part no. 33956, which contains magnet.
Important Notes

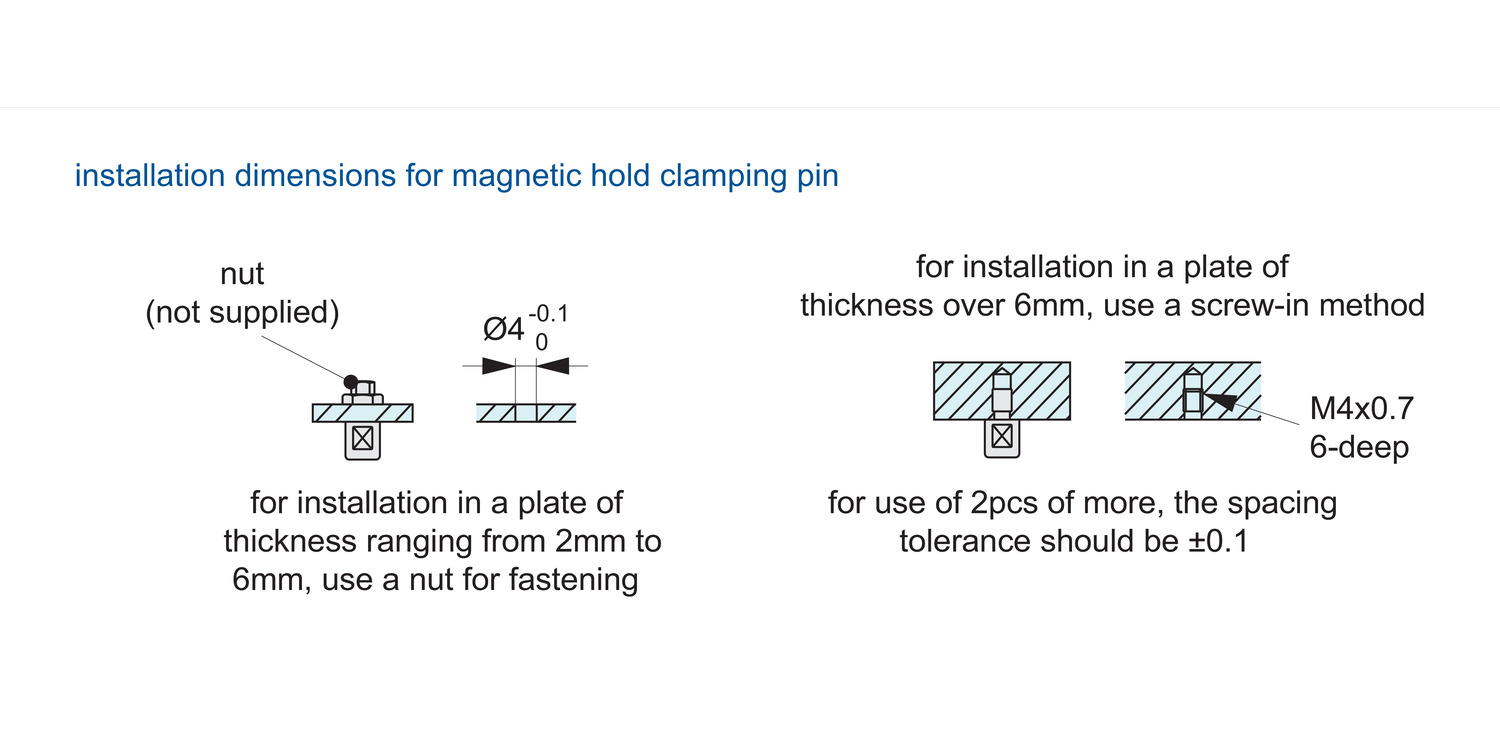

Suitable for panels/enclosures of 2 to 6 20 mm thickness.
For installation instructions see technical page.
