Sliding Clamps
for slotted hole

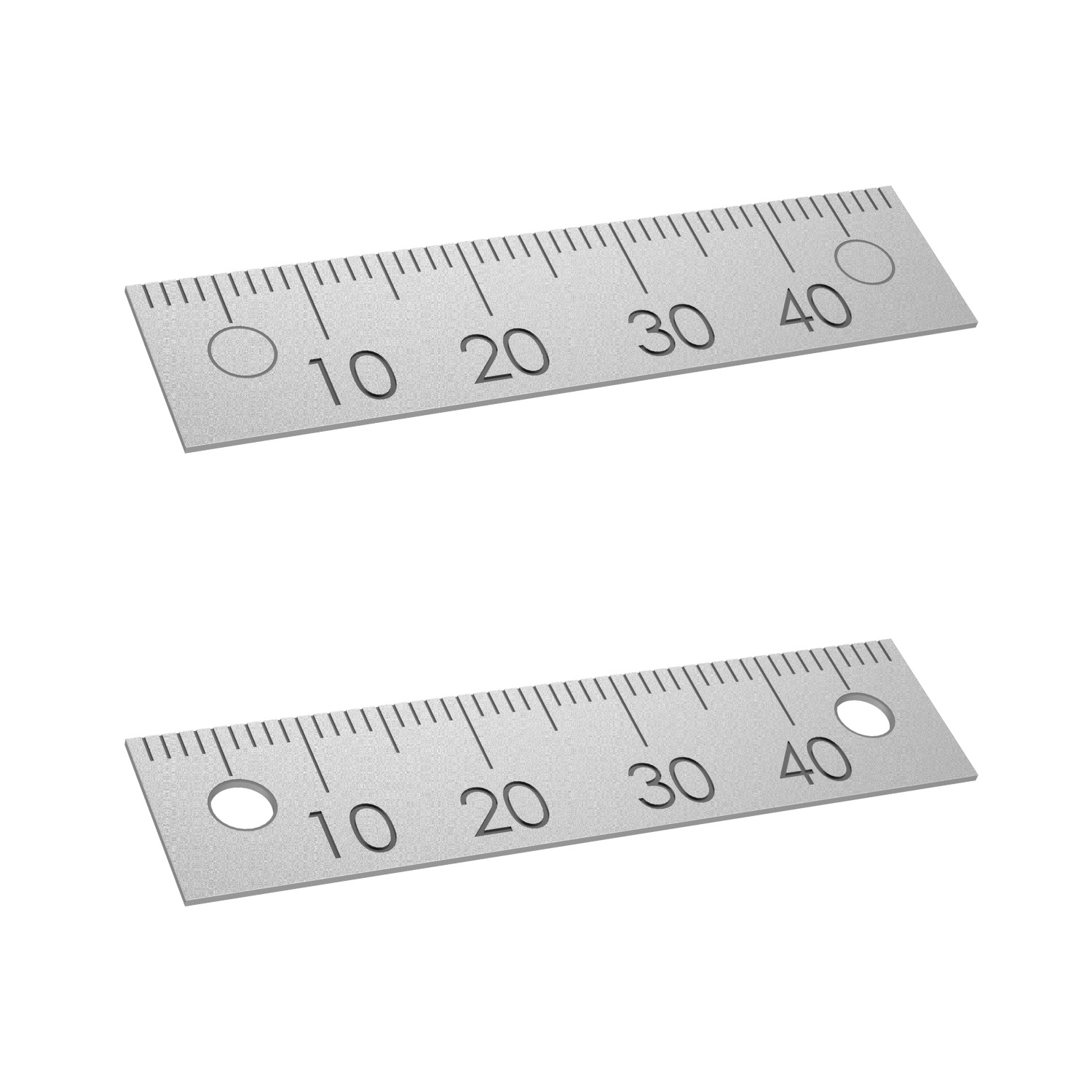

33975 Scale Plates - Single Scale
for sliding clamps 33970, 33972, 33973, material: Aluminium
Order No.
33975.W1030
Mounting type
Adhesive
Number of mounting holes
2
Direction of measurement
Right
Scale position
Top
d1 (marked) drilled
(3.5)
h1
12
l1
50
l2
40
l3
-
Weight
g
0.8
£ 2.64 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 2.64 | 0% |
| 10-19 | £ 2.38 | 10% |
| 20-49 | £ 2.24 | 15% |
| 50-99 | £ 2.11 | 20% |
| 100+ | £ 1.85 | 30% |
Technical & Application
Material
Aluminium, with etched graduation/markings.
Technical Notes
For use with sliding clamps 33970, 33972 and 33973. Markings are for indicative purposes, and are not intended for precise measurement.
Adhesive mounting type: ensure receiving surface is clean and dirt free (features outline of screw hole location, not drilled).
Screw mounting type: holes drilled to 3,5mm dia.

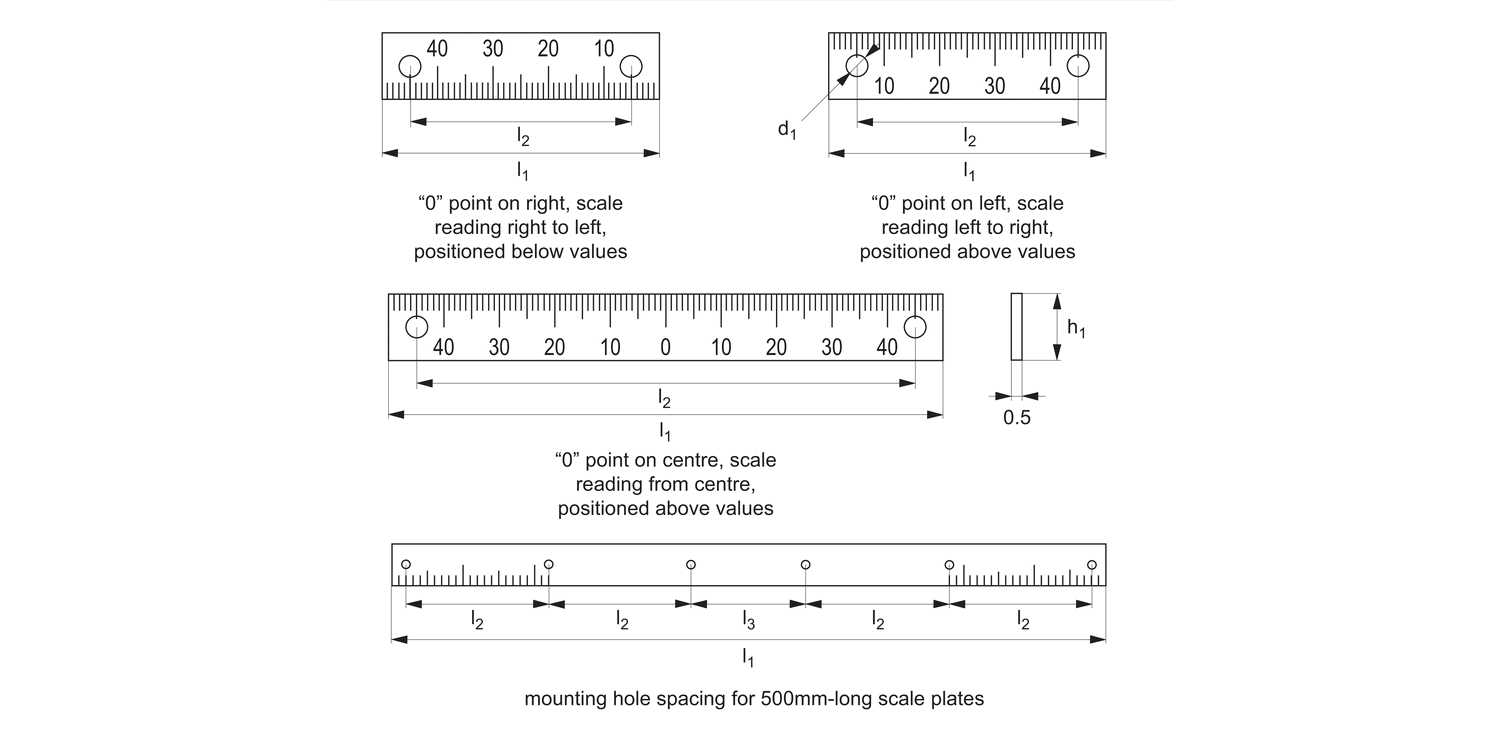

When selecting scale plate consider;
- direction scale reads (left to right, right to left or from centre).
- position of scale relative to number valves (above, below or both).
