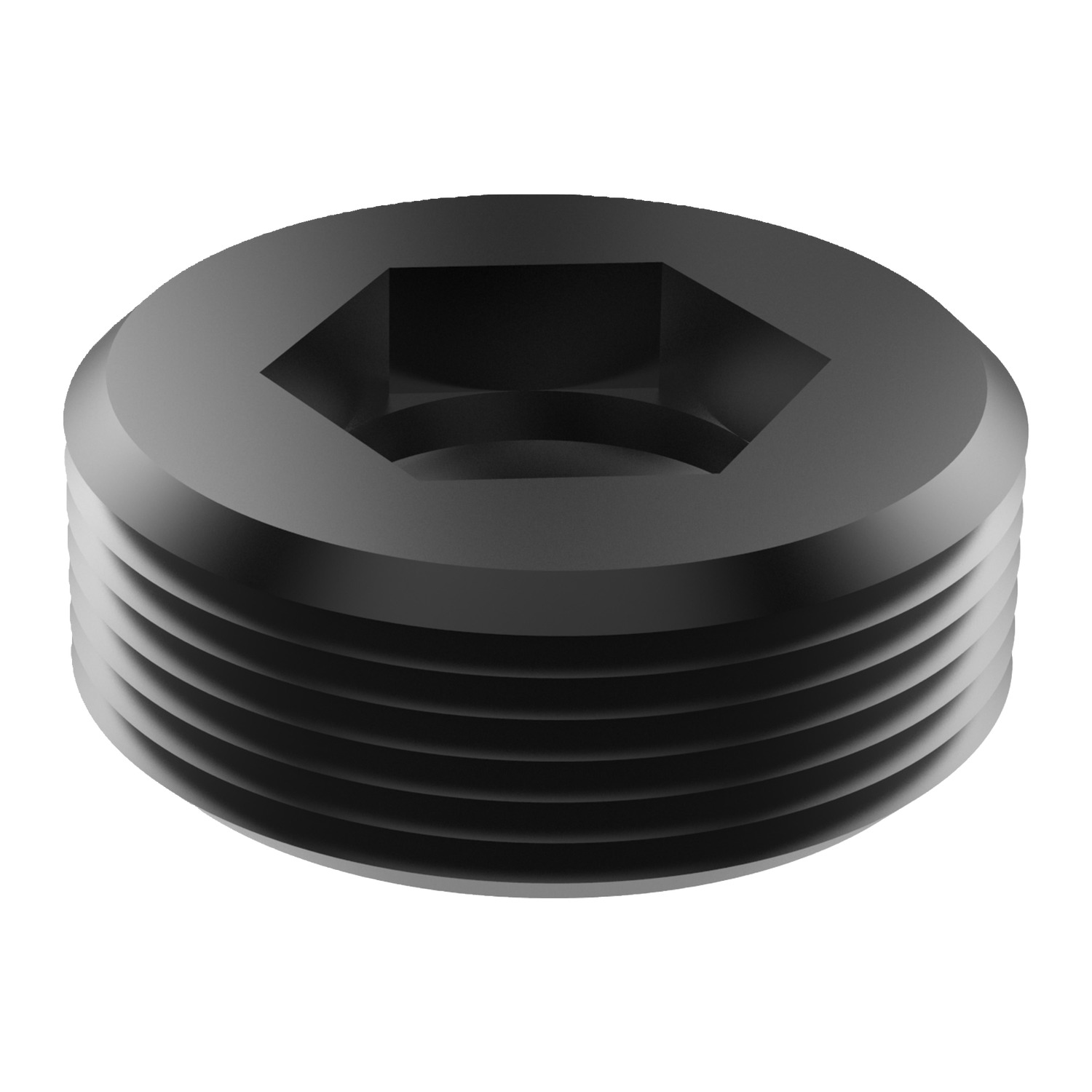

39200 Blanking Plugs

Name: 39200.W0016
Brand: WC
SKU: 39200.W0016
Price: 3.81 EUR
Availability: OutOfStock

Article properties

Order No.

39200.W0016

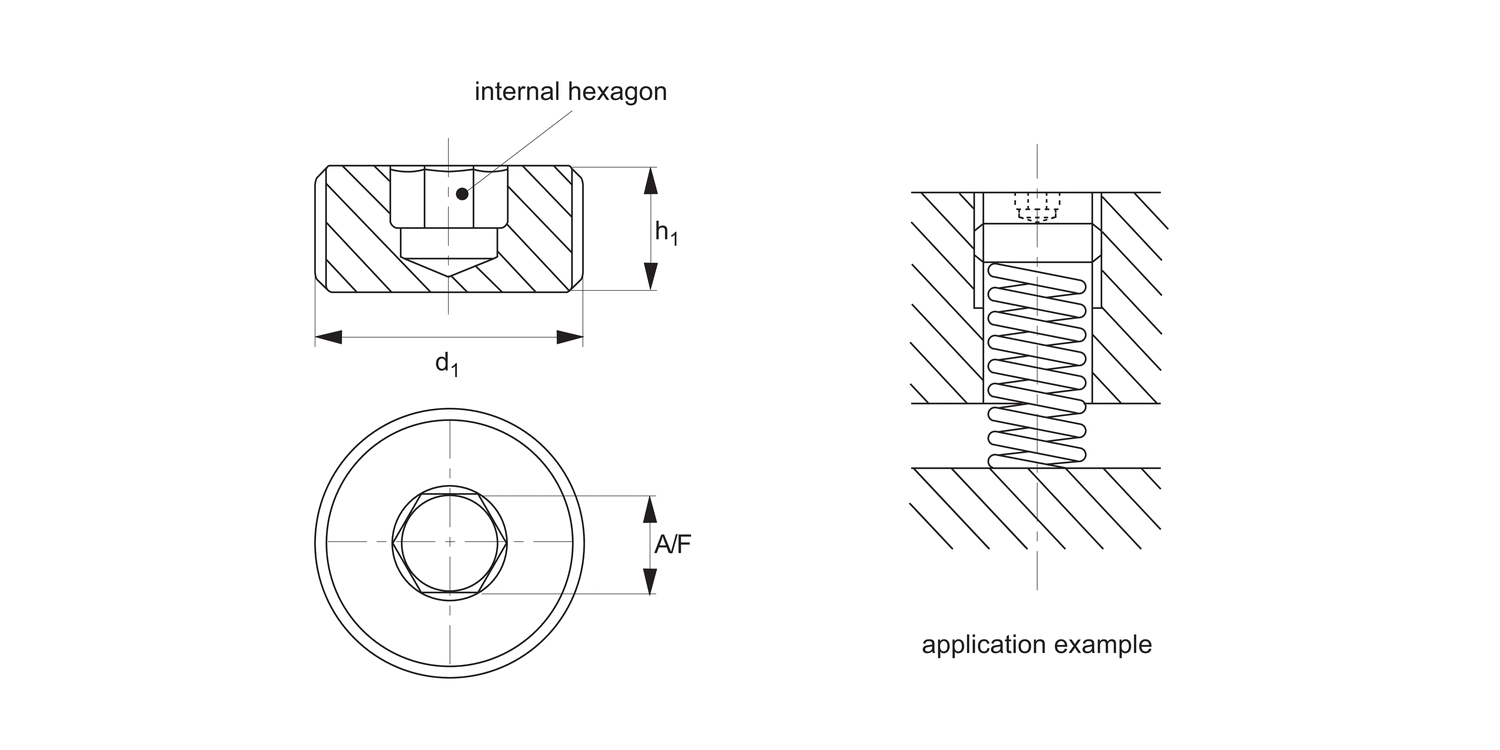

d₁

M16x1,5

h₁

A/F

£ 3.81 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 21 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Technical & Application

Steel, blackened. Strength class 5.8, 500 N/mm²

39200 Blanking PlugsJune 24, 2025, 3:43 PM / 225.66 kB

Expander PlugsJune 24, 2025, 3:30 PM / 289.52 kB

Sealing ScrewsJune 24, 2025, 3:31 PM / 1.93 MB

Thumb, Captive & Sealing ScrewsJune 24, 2025, 3:32 PM / 10.20 MB

Design ElementsJune 24, 2025, 3:33 PM / 69.38 MB

39200 AcisApril 17, 2024, 9:44 AM / 75.53 kB

39200 IGESApril 17, 2024, 9:44 AM / 201.27 kB

39200 ParasolidApril 17, 2024, 9:44 AM / 56.34 kB

39200 ProEApril 17, 2024, 9:44 AM / 955.50 kB

39200 SolidWorksApril 17, 2024, 9:44 AM / 2.03 MB

39200 StepApril 17, 2024, 9:44 AM / 106.69 kB
