Toggle Clamps
ESD - open arm - horizontal base

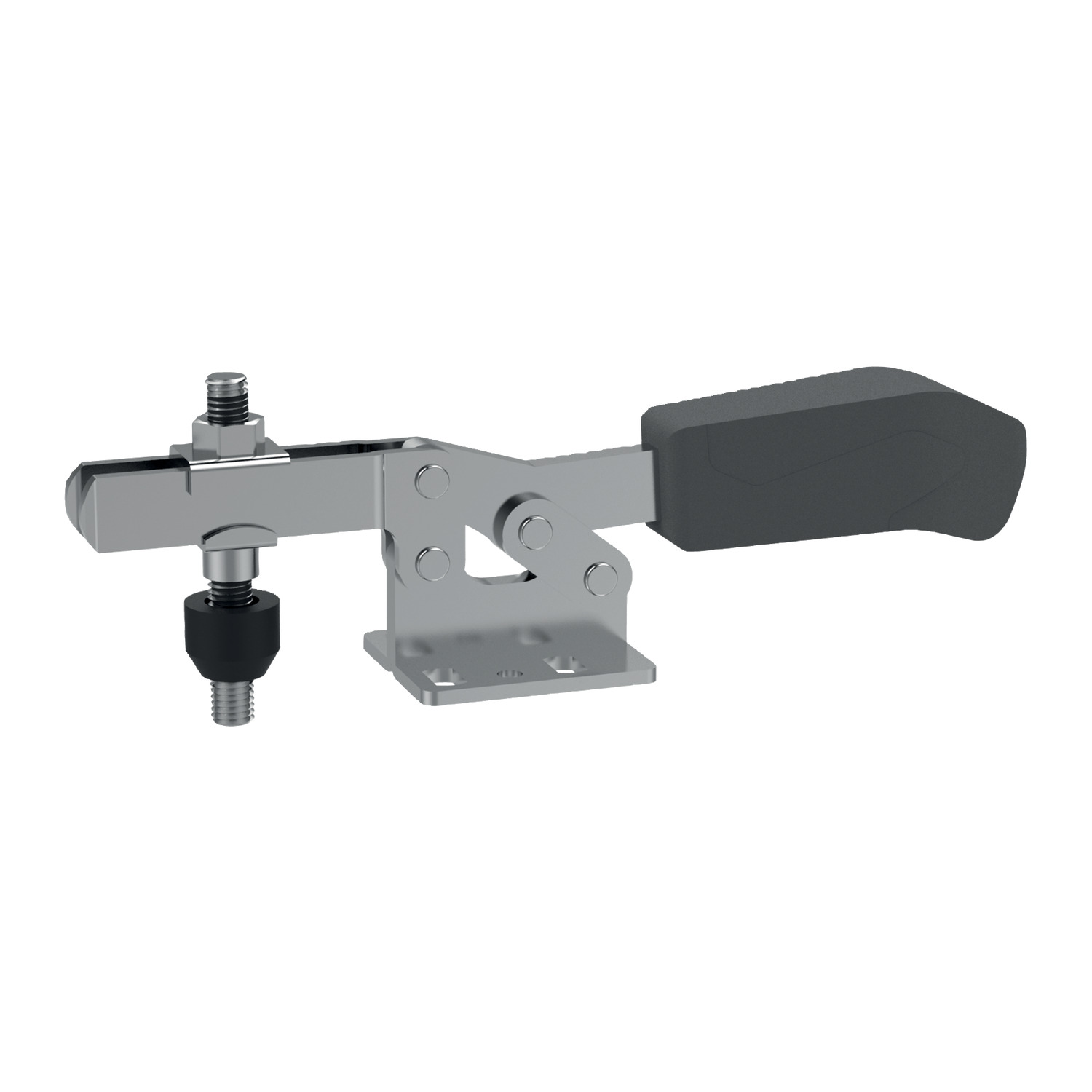

41000.3 Horizontal Acting Toggle Clamps
ESD - open arm - horizontal base, material: Steel, zinc plated
Order No.
41000.W0201
Size
1
F1
kN
0.80
F2
kN
1.1
Clamping screw
M 5x30

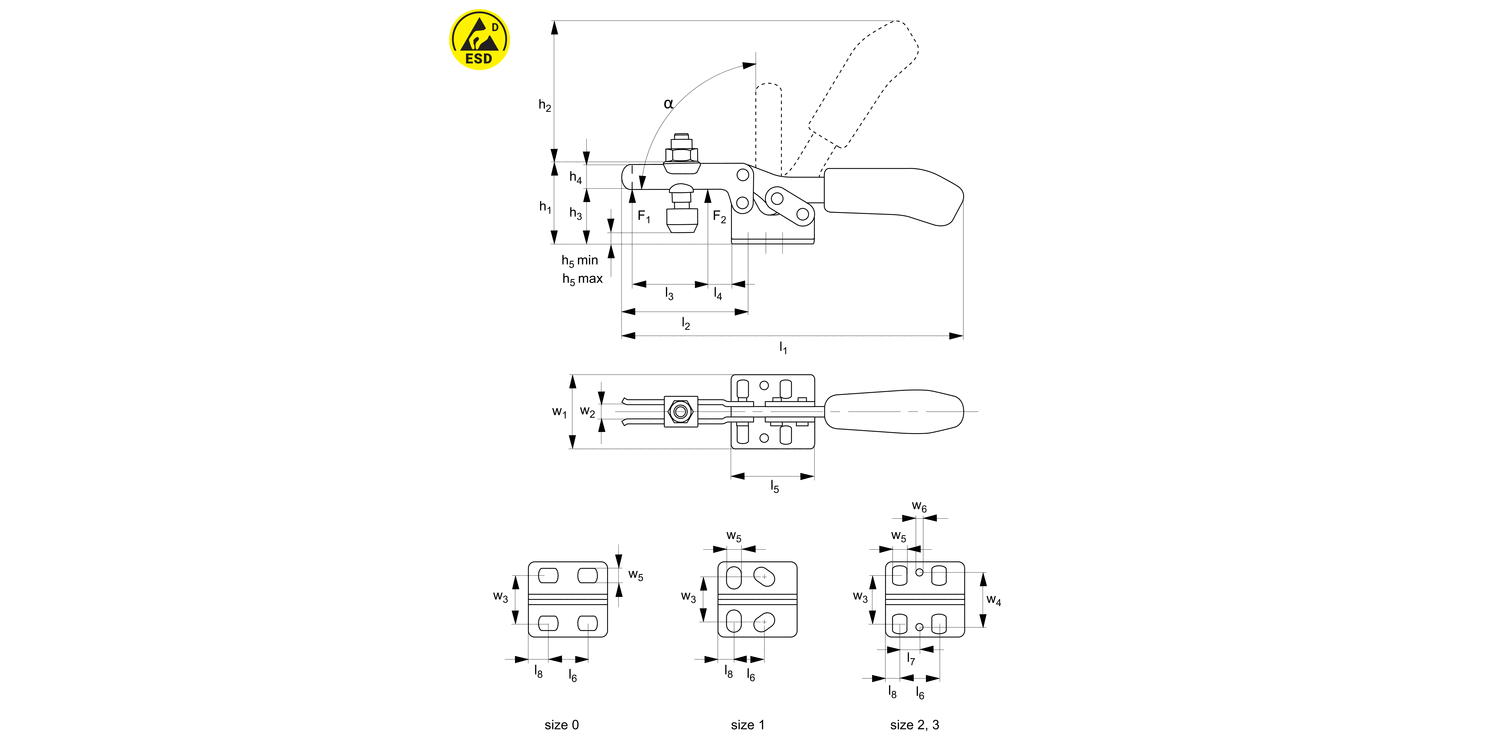

h1
30.0
h2
49
h3
19.0
h4
10.0
h5
min.
-3.0
h5
max.
2.5
l1
120
l2
42
Weight
g
105
l3
18.7
l4
8.0
l5
34.0
l6
13,0-14,5
l7
-
l8
5.5
w1
34.0
w2
5
w3
18,0-21,5
w4
-
w5
5.2
w6
-
α
90°
£ 51.40 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 51.40 | 0% |
| 10-14 | £ 46.26 | 10% |
| 15-24 | £ 43.69 | 15% |
| 25-49 | £ 41.12 | 20% |
| 50+ | £ 35.98 | 30% |
Technical & Application
Material
Body: steel, zinc plated.
Rivets: stainless steel running in hardened bushings (sizes 2-3). Bearing positions are greased.
With protective cap and handle made of electrostatic conductive (dissipative) material. The handle is ergonomic, soft feel, oil-resistant and with large grip area. Retainer for the clamping screw at the end of the clamping arm.
Complete with zinc plated and tempered clamping screw no. 45060.W0300- .W0303.
Technical Notes
Temperature range -10°C to +80°C.
The ESD (electrostatically sensitive devices) horizontal clamp is non-insulating. It must not be used in areas where open voltages are used.
