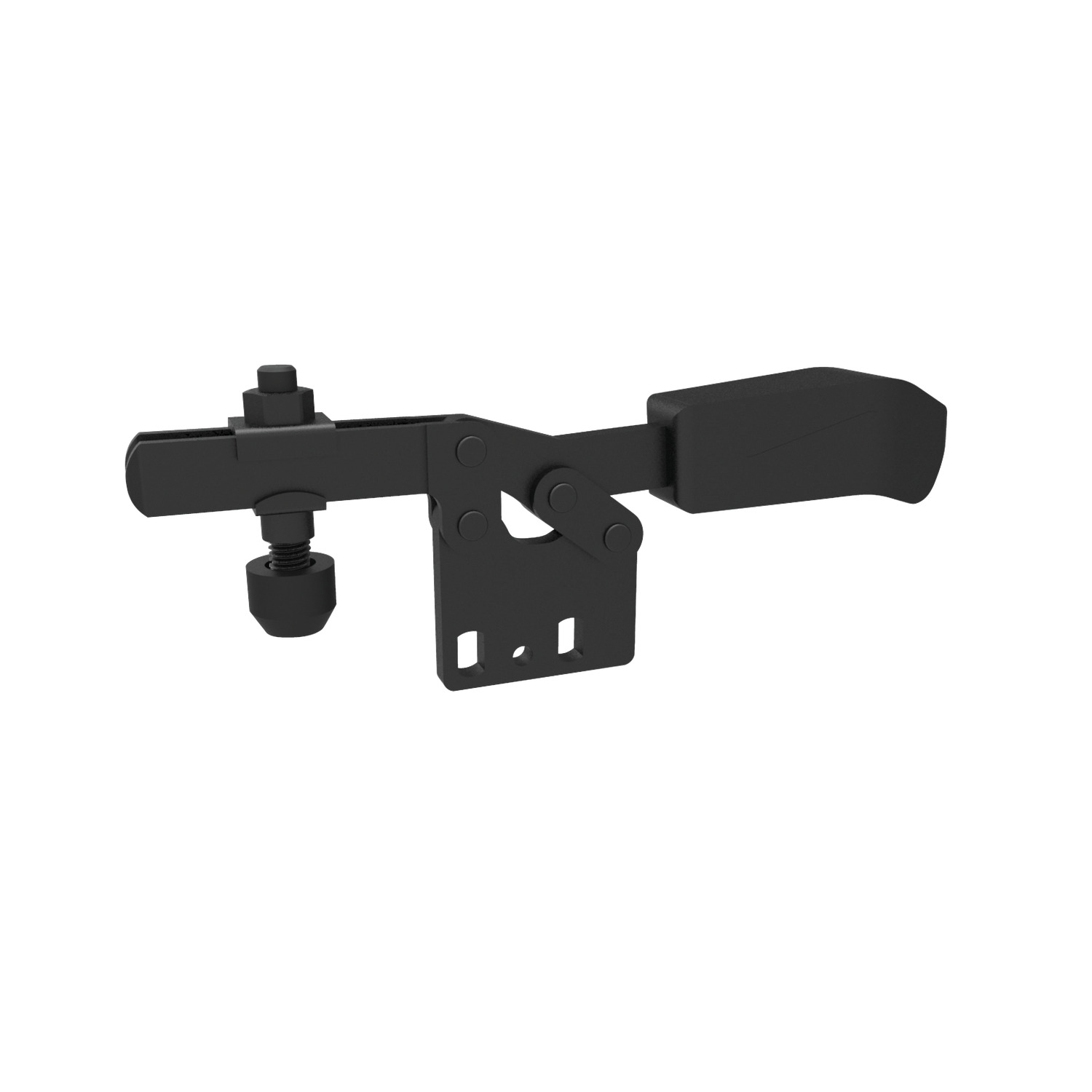

41050.2 Horizontal Acting Toggle Clamps

Name: 41050.W0100
Brand: WC
SKU: 41050.W0100
Price: 38.46 GBP
Availability: OutOfStock

black - open arm - vertical base, material: Steel, matt black

Article properties

Order No.

41050.W0100

Size

F₁ kN

0.3

F₂ kN

0.4

Clamping screw

M 4x34,5

h₁

h₂

h₃

24.5

h₄

7.5

h₅ min.

2.2

h₅ max.

13.7

l₁

79.0

l₂

28.0

l₃

9.0

Weight g

l₄

5.5

l₅

25.5

l₆

11,5-15,5

l₇

6.25

l₈

w₁

w₂

w₃

w₄

w₅

20.0

d₁

4.6

d₂

90°

See full product selection

£ 38.46 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.95.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 38.46	0%
10-14	£ 34.61	10%
15-24	£ 32.69	15%
25-49	£ 30.77	20%
50+	£ 26.92	30%

Download product datasheet

Technical & Application

Material

Body: steel, matt black.
Bushes: sizes 2-3 case hardened and pre-lubricated.
Ergonomic soft feel, oil-resistant handle with large grip area.
Supplied complete with clamping screw (with rubber pad).

Technical Notes

Opening angle (symbola/symbol/symbola/symbol*) can be changed by pressing in a stop pin on the clamp body.
For optical analysis applications.

Tips

Designed specifically for clamping of parts during photometric measurement. Uniform matt black surface prevents reflection, enabling easy "knocking-out" of the clamp during optical analysis of a component.
