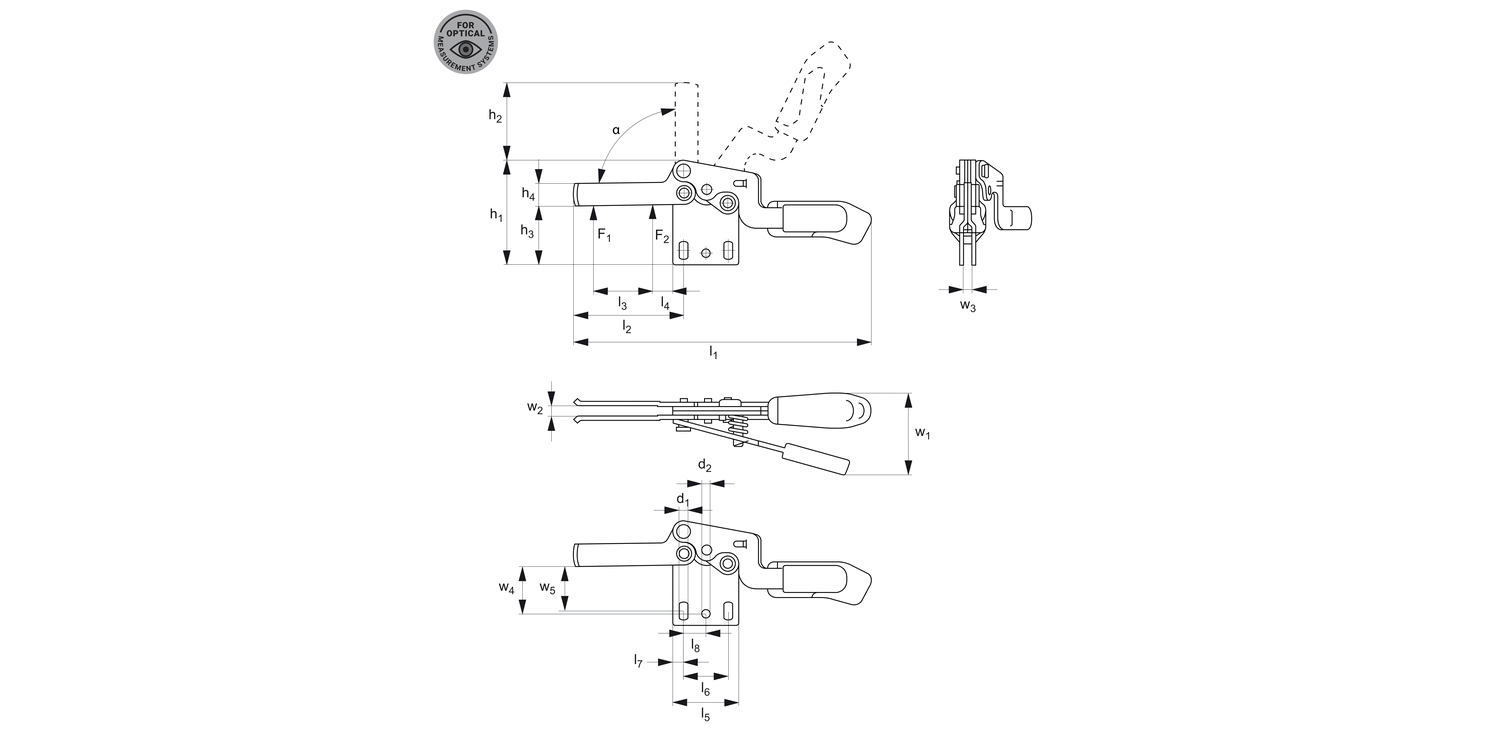

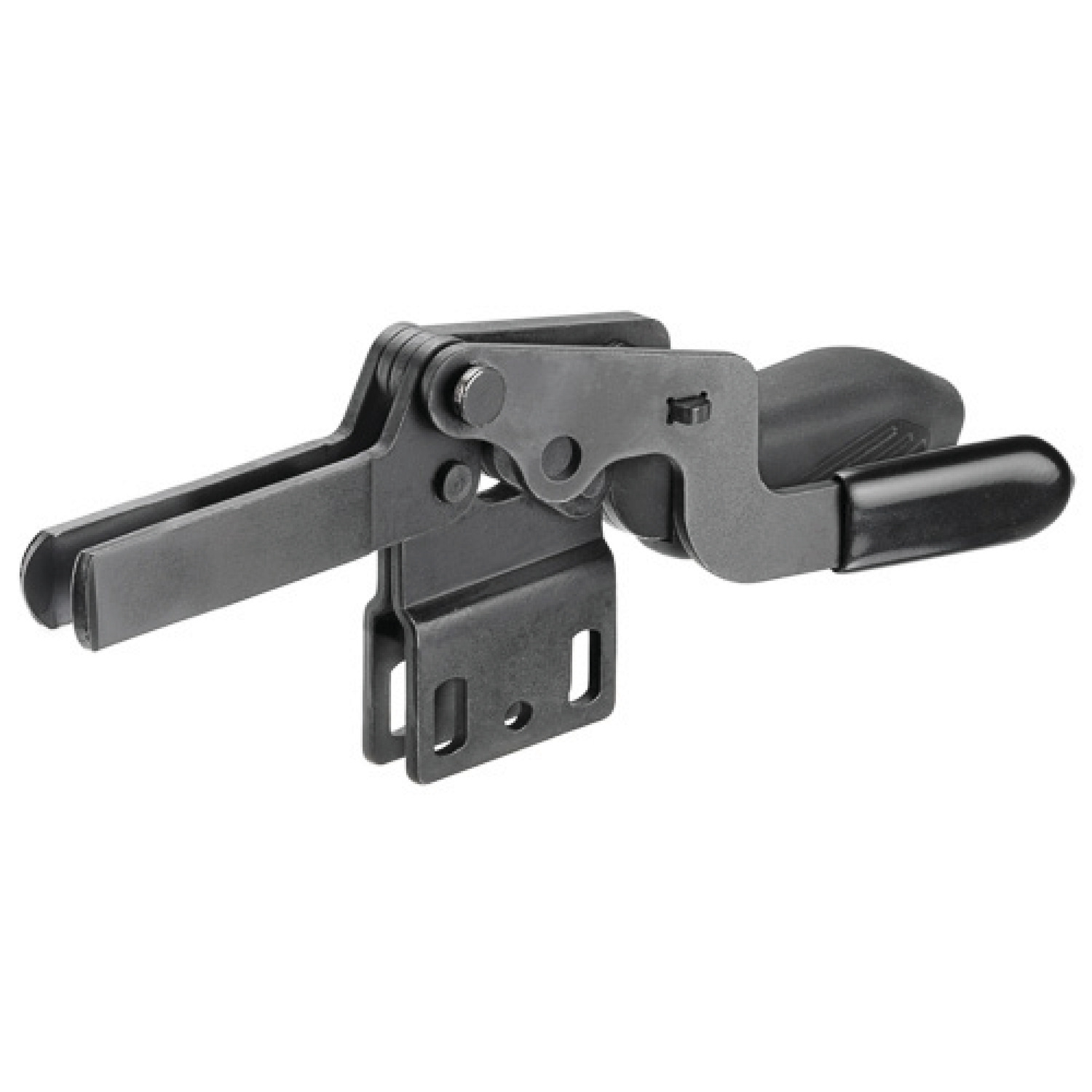

41064.1 Horizontal Acting Toggle Clamps
black - open arm - vertical base - safety, material: Steel, matt black
Order No.
41064.W0100
Size
2
F1
kN
1
F2
kN
1.2
h1
61
h2
67
h3
34
h4
13.2
l1
173.5
l2
64
l3
38.6
l4
11
l5
38
Weight
g
230
l6
26
l7
6
l8
13.1
w1
6.2
w2
48
w3
5
w4
27
w5
23-28
d1
5.6
d2
4.8
α
90°
£ 83.64 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 83.64 | 0% |
| 10-14 | £ 75.28 | 10% |
| 15-24 | £ 71.09 | 15% |
| 25-49 | £ 66.91 | 20% |
| 50+ | £ 58.55 | 30% |
Technical & Application
Material
Body: steel, matt black.
Bushes: case hardened and pre-lubricated.
Ergonomic soft feel, oil-resistant handle with large grip area.
Supplied complete with clamping screw (with rubber pad).
Technical Notes
The safety lever holds the clamping arm in both the clamped and open position. This prevents opening under vibration or accidental movement of the clamping arm during assembly/disassembly of the fixture.
For optical analysis applications.
Tips
Designed specifically for clamping of parts during photometric measurement. Uniform matt black surface prevents reflection, enabling easy "knocking-out" of the clamp during optical analysis of a component.
