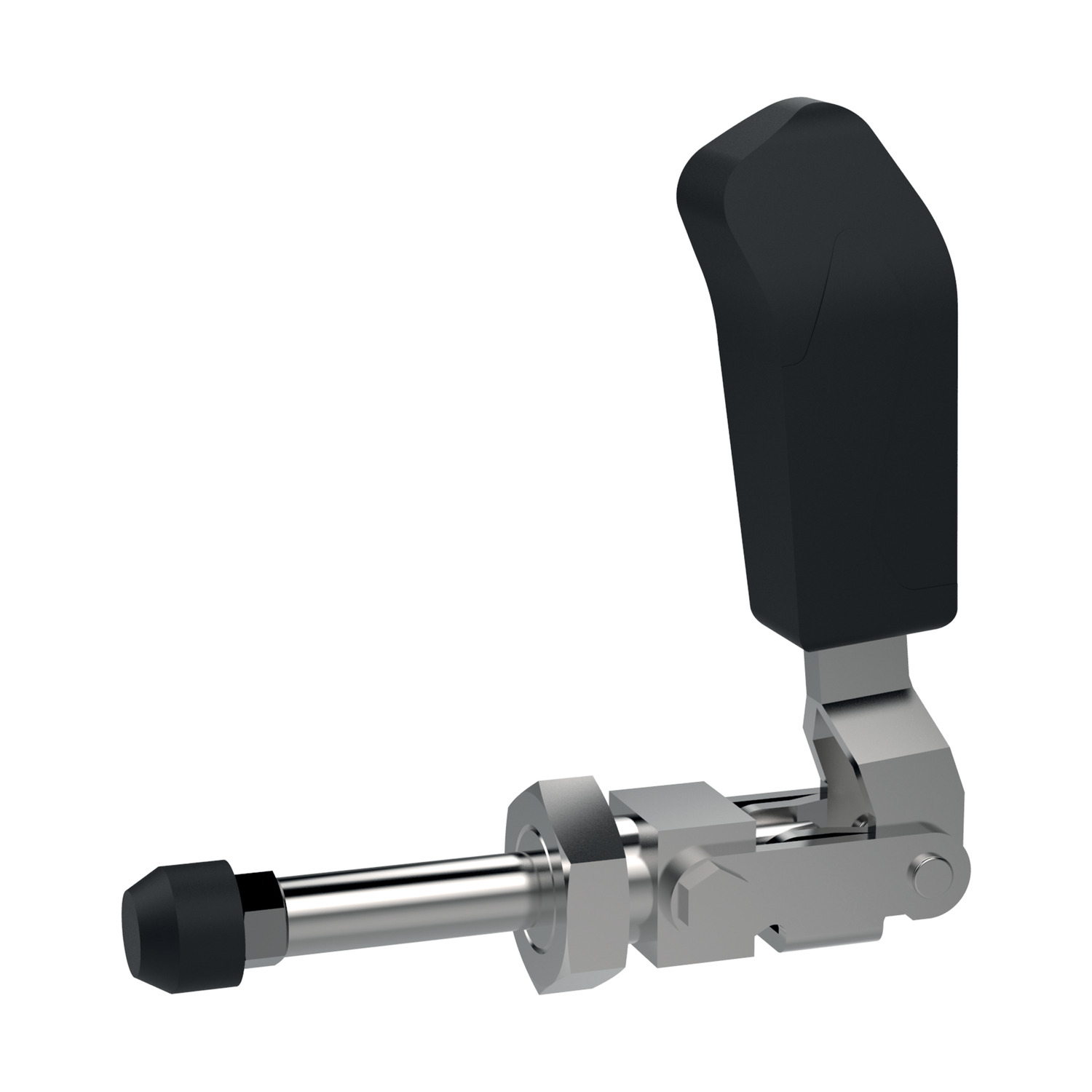

41840.3 Push-Pull Toggle Clamps

Name: 41840.W0202
Brand: WC
SKU: 41840.W0202
Price: 71.38 EUR
Availability: OutOfStock

ESD - compact version, material: Steel, zinc plated

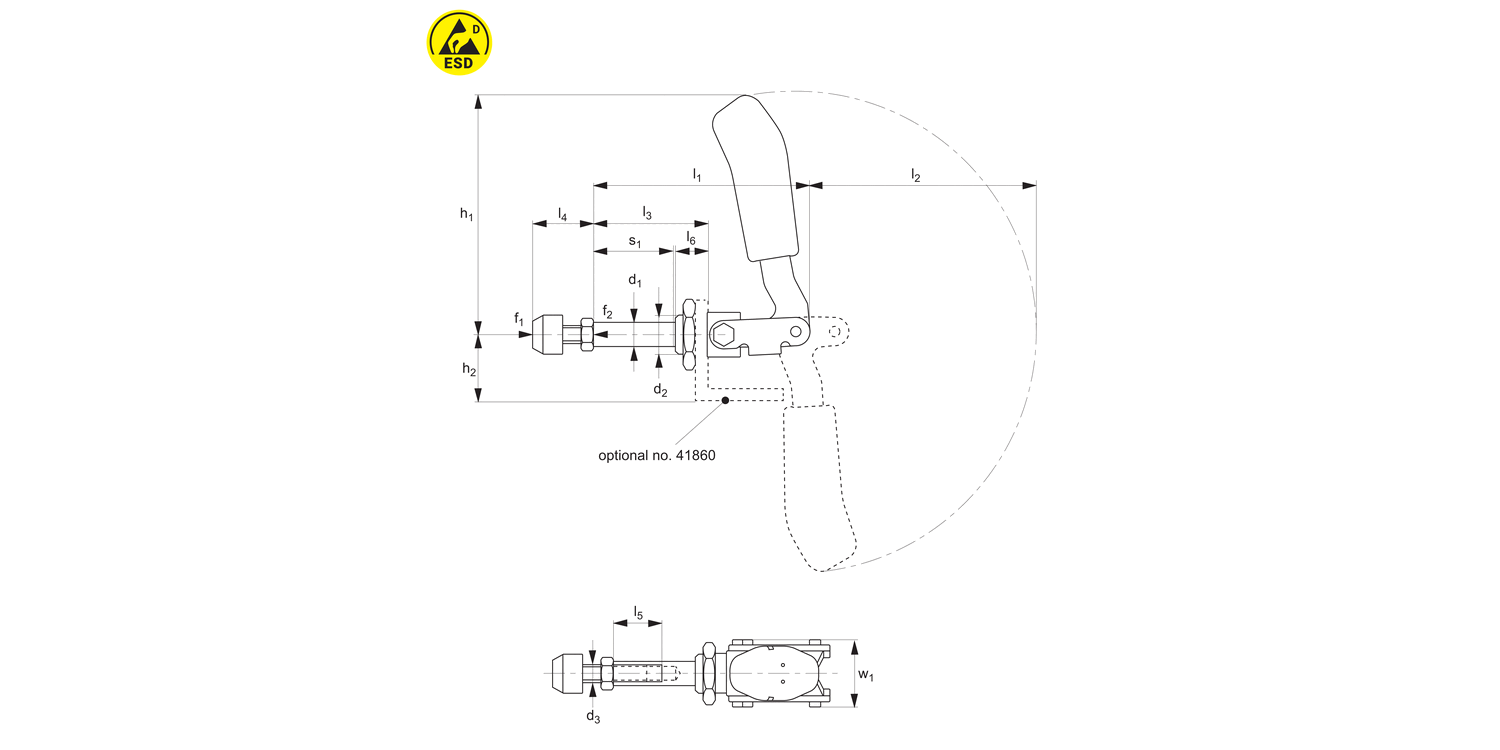

Article properties

Order No.

41840.W0202

Size

F₁ kN

1.0

F₂ kN

1.0

h₁

h₂

l₁

68.5

l₂

l₃

l₄ min.

Weight g

130

l₄ max.

l₅

l₆

d₁

d₂

M16x1,5

d₃

M 6

w₁

30.5

Stroke s₁

24.5

Clamping screw

M 6x25

See full product selection

£ 71.38 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 71.38	0%
10-14	£ 64.24	10%
15-24	£ 60.67	15%
25-49	£ 57.10	20%
50+	£ 49.97	30%

Download product datasheet

Technical & Application

Material

Body: steel, zinc-plated.
Piston rod: non-rusting steel.
Shoulder screws: steel, tempered. Bearing positions are greased.
Long rod-guide with attaching thread and nut.
With protective cap and handle made of electrostatic conductive (dissipative) material. The handle is ergonomic, soft feel, oil-resistant and with large grip area.
Complete with zinc plated and tempered clamping screw no. 45020.W0301- .W0303.

Technical Notes

Temperature range -10°C to +80°C.
The ESD (electrostatically sensitive devices) push-pull type toggle clamp is non-insulating. It must not be used in areas where open voltages are used.
