Toggle Clamps
auto adjust - angle base

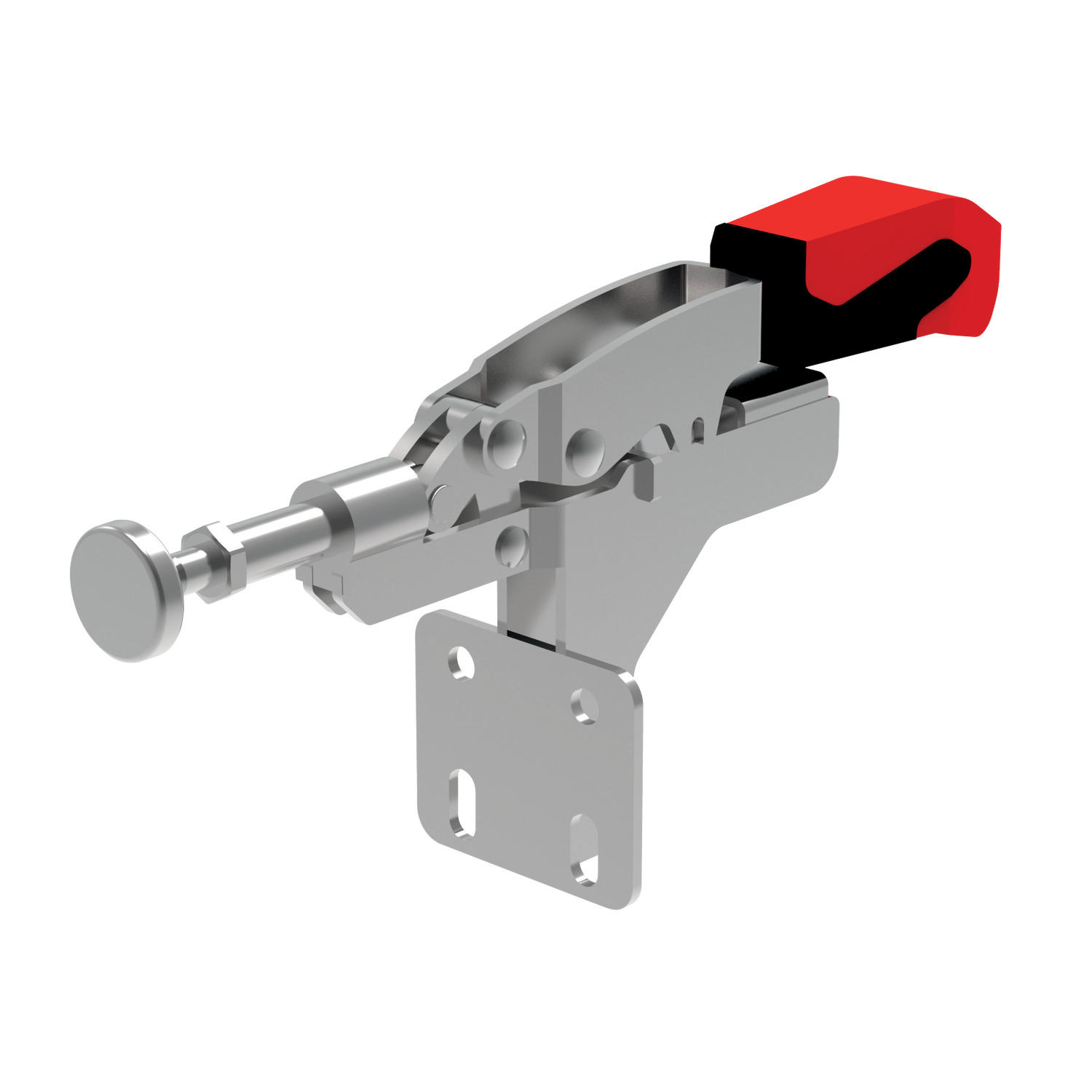

42611 Auto-Adjust Push-Pull Toggle Clamp
angle base, material: Steel, zinc plated
Order No.
42611.W0025
Size
25
F1
kN
3
Automatic height compensation s1
13
Height compensation
max.
35
Clamping screw
M 8x50
h1
238
h2
119
h3
84
l1
236
Weight
g
544
l2
58-83
l3
57
l4
min.
19
l4
max.
39
l5
38.1
d1
11.8
d2
6.5
d3
6.5
d4
M 8
w1
51
w2
20,5-30,0
w3
10.6
£ 48.60 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 48.60 | 0% |
| 10-14 | £ 43.74 | 10% |
| 15-24 | £ 41.31 | 15% |
| 25-49 | £ 38.88 | 20% |
| 50+ | £ 34.02 | 30% |
Technical & Application
Material
Body: steel, zinc plated.
Ergonomic, soft feel and oil-resistant handle with large grip area.
Supplied complete with zinc plated clamping screw (with rubber pad).
Technical Notes
Automatically adjusts to suit work-piece height.
Temperature range -10°C to +80°C.
