Solid Roller
roller only
60628 Solid Roller
clutch bearing, material: Nitrile, urethane or neoprene
Order No.
60628.W3073
Type
Left
Material
Neoprene
Durometer
35

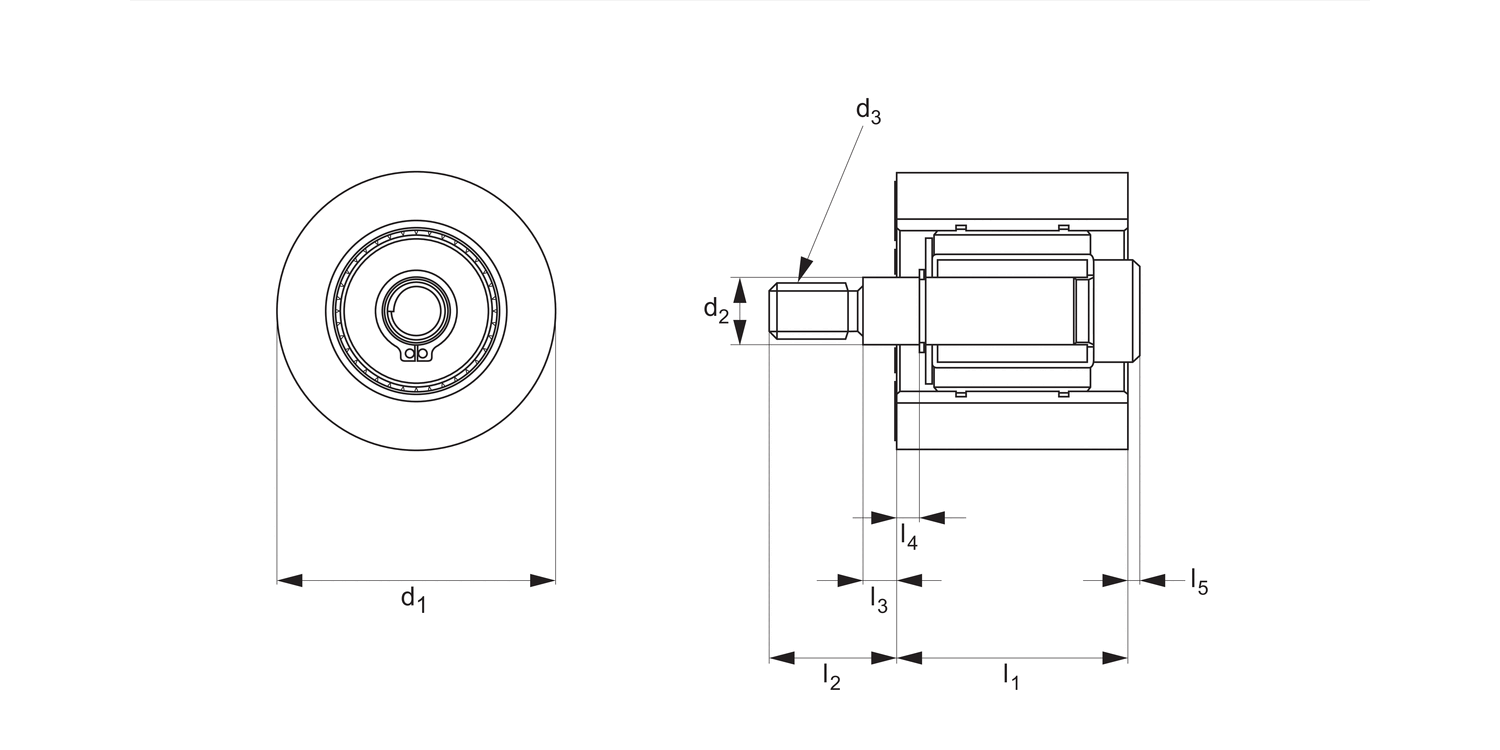

d1
63.50
l1
23.27
d2
-0|+0.05
15.77
d3
1/2-13"
l2
31.75
l3
26.42
l4
3.05
l5
10.41
£ 110.07 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 110.07 | 0% |
| 10-19 | £ 104.57 | 5% |
| 20-39 | £ 99.06 | 10% |
| 40-59 | £ 93.56 | 15% |
| 60-99 | £ 88.06 | 20% |
| 100+ | £ 82.55 | 25% |
Technical & Application
Material
Nitrile, urethane or neoprene bonded to a steel insert.
Hardness from 20-80 durometer (Shore A).
Technical Notes
A clutch bearing allows the roller to turn in only one direction. Available in left or right hand rotation (with the stud pointed upwards, a right hand rotation turns clockwise.)
Supplied with type I bearing, other d1=38,1 roller which is supplied with type h bearing.
Tips
Type R = Right handed clutch bearing.
Type L = Left handed clutch bearing.
See technical introduction pages for further information.
