A-V Cylinders
Steel
61104 Anti-vibration Cylinders Waisted
stainless female:female, material: Stainless steel
Order No.
61104.W1080
Compression
max.
10
d1
108
h1
85
d2
M16
d3
95
Axial load
max.
kgf
800
Radial load
max.
N
75
£ 72.72 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 72.72 | 0% |
| 20-49 | £ 61.81 | 15% |
| 50-99 | £ 54.54 | 25% |
| 100-199 | £ 47.27 | 35% |
| 200-499 | £ 43.63 | 40% |
| 500+ | £ 36.36 | 50% |
Technical & Application
Material
Rubber on A2 stainless steel (rubber hardness - 55 Shore A).
Tips

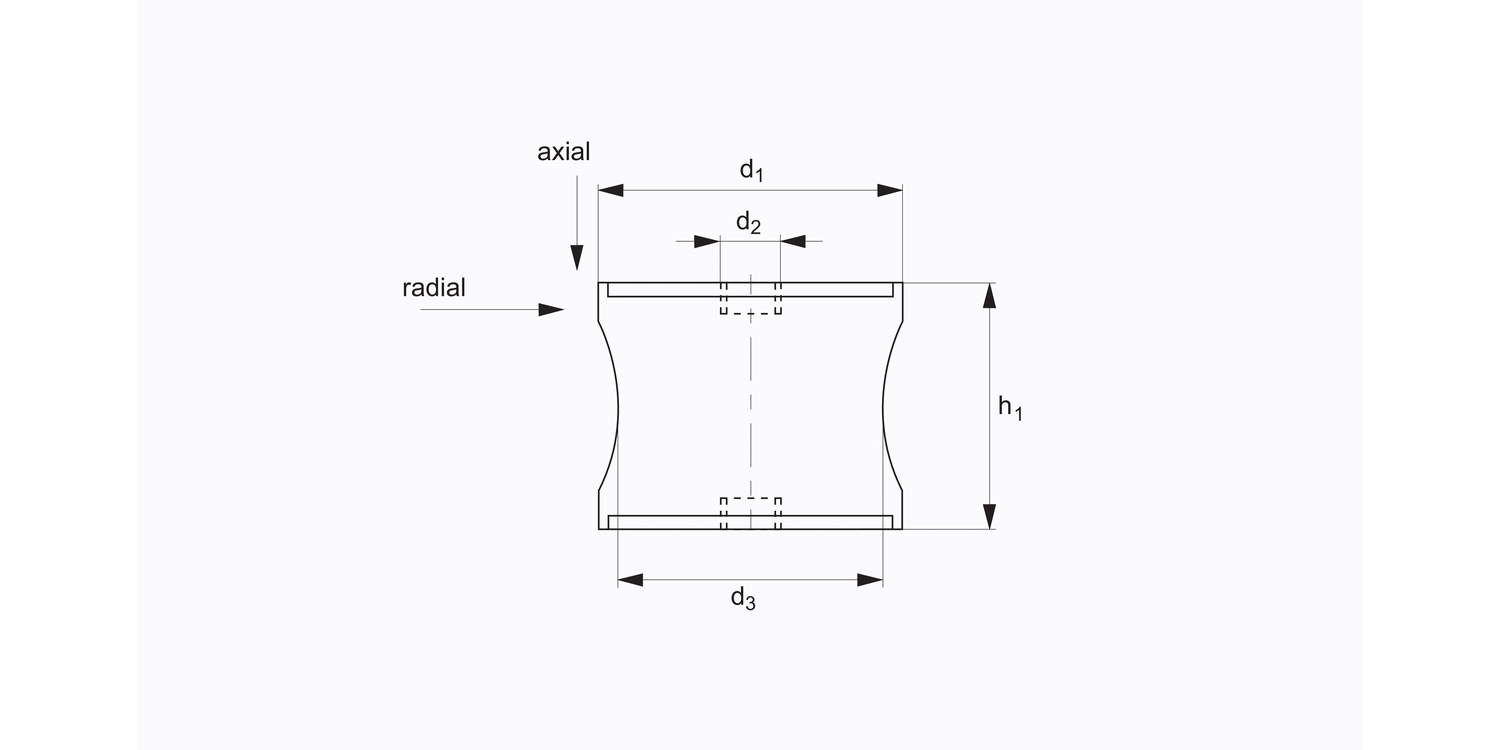

These cylinders are used to reduce vibration by allowing some movement (in axial and shear as shown in drawing).
Typically used in machinery, compressors, air conditioning units, light engineering equipment etc.
