Precision Adjuster
standard
62000 Precision Adjuster
material: Steel
Order No.
62000.W0552
Material
Stainless steel
For bolt
M10
h1
23
h2
18
h3
5
d1
32
d2
11.0
d3
M20x1,0
Load with bolt
max.
kN
23.41
Load w/o bolt
max.
kN
43.4
£ 63.79 per unit (click for quantity discounts)
Ready to despatch 51
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 63.79 | 0% |
| 5-9 | £ 57.41 | 10% |
| 10-19 | £ 54.22 | 15% |
| 20-49 | £ 47.84 | 25% |
| 50+ | £ 41.46 | 35% |
Technical & Application
Material
Steel (type 42 CrMo4 V, 1.7225) zinc plated or stainless steel A1 (A4 on request).
Technical Notes

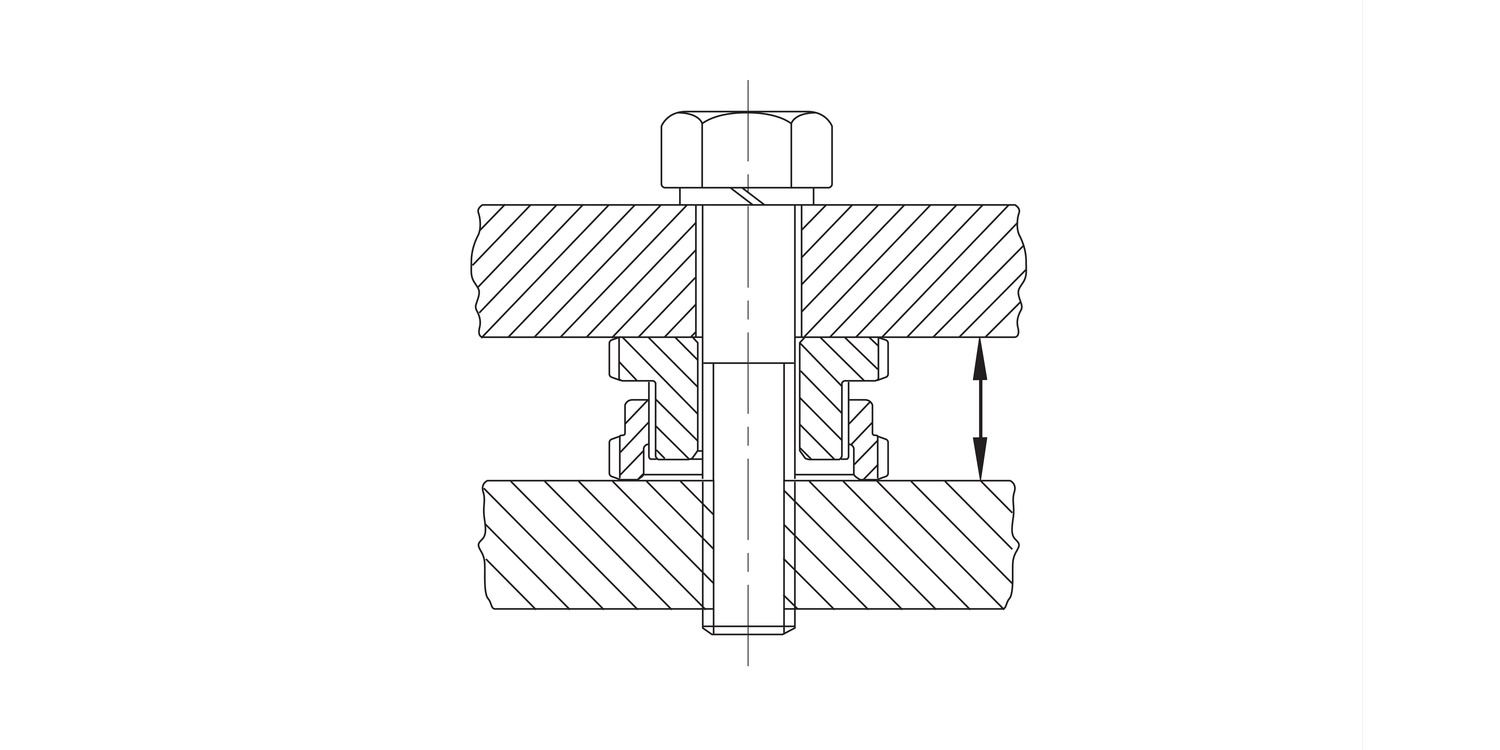

After setting the height, the structure can be bolted down using a suitable 8,8 strength bolt.
The net load that the unit can carry is the maximum load less the tightening torque recommended for the bolt. Designed for applications with limited space. Height adjustment is between 4 and 10mm.
Product Datasheets
CAD files
Application images
