Hoist Rings
metric - side-pull

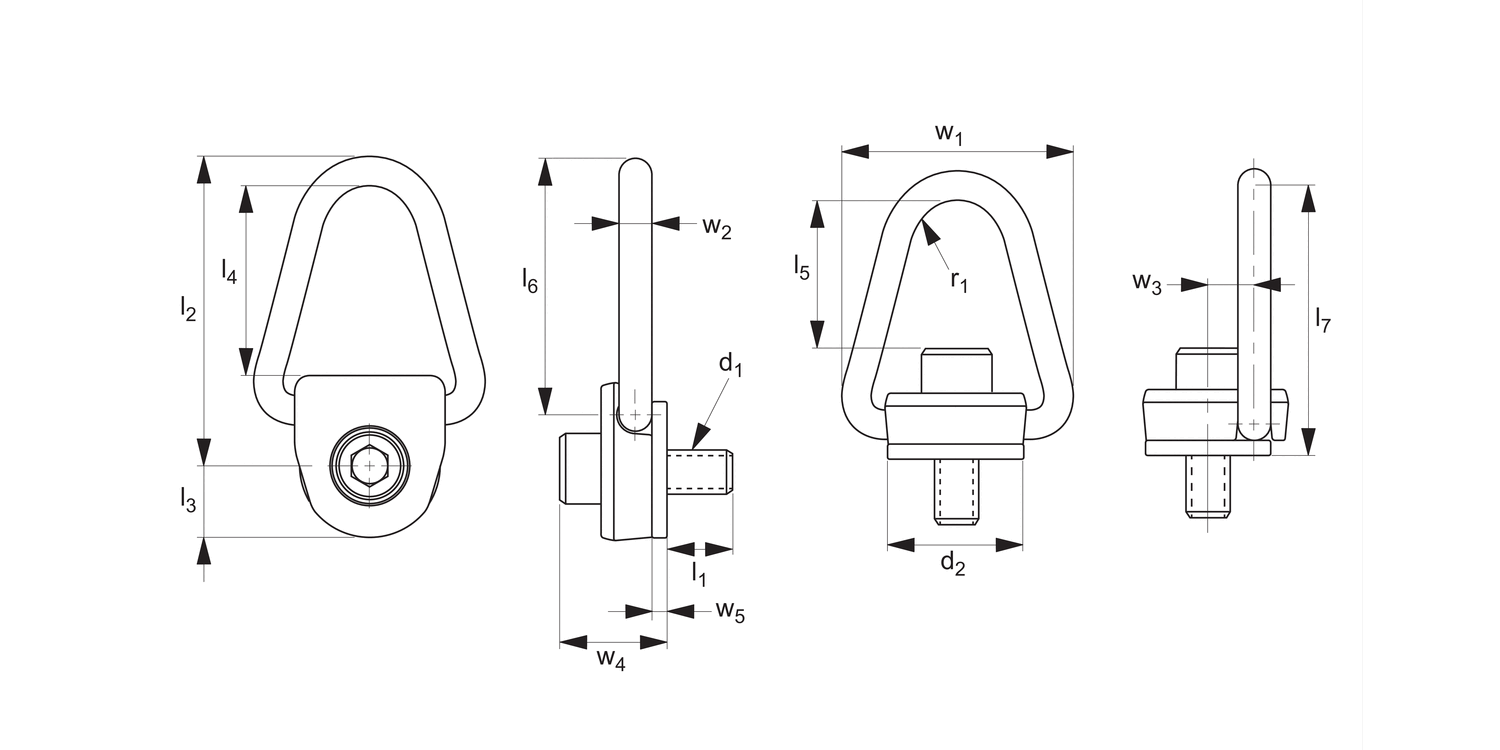

63601 Load Rings - Side Pull - Male
metric - coarse, material: Alloy
Order No.
63601.W0161
Rated load
tonnes (t)
1.90
d1
M16x2,00
l1
37
d2
56
l2
130
l3
32
l4
81
l5
65
Weight
kg
1.01
l6
108
l7
120
r1
19
w1
99
w2
13
w3
22
w4
42
w5
5
tl
Nm
80.0
£ 262.25 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-2 | £ 262.25 | 0% |
| 3-4 | £ 222.91 | 15% |
| 5-9 | £ 209.80 | 20% |
| 10-19 | £ 196.69 | 25% |
| 20+ | £ 183.58 | 30% |
Technical & Application
Material
Alloy steel, black oxide finish.
Technical Notes
Magnetic particles inspected per ASTM1444.
Important Notes
Min. design safety factor 5:1, any direction. Self aligning direction of load. Rotates 360° under load.
tl= recommended torque load (Nm).
Always follow safety instructions.
