Lifting Rings
imperial - weld mount

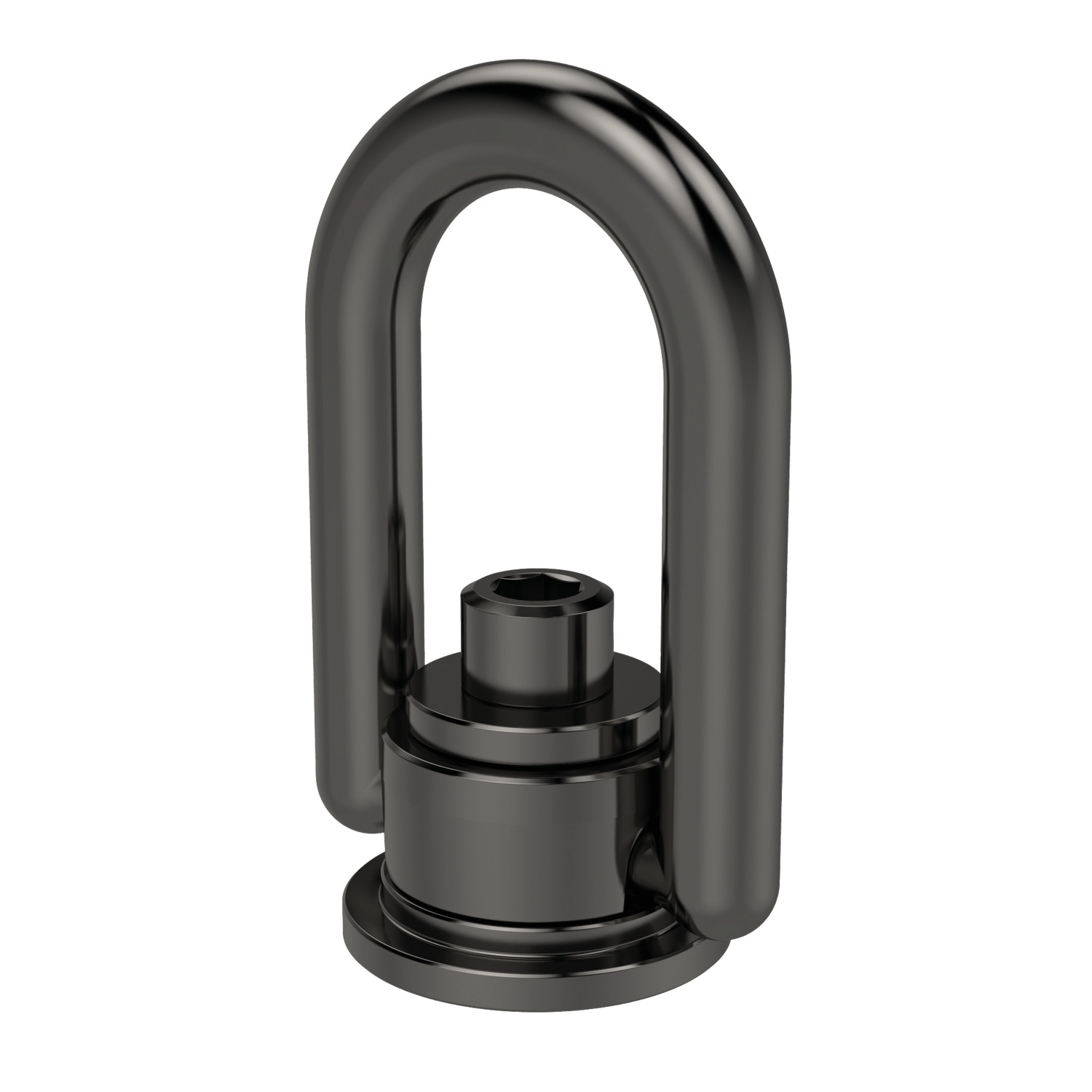

63700 Load Rings - Weld
material: Forged alloy
Order No.
63700.W0251I
Rated load
lb
5000
d1
5/8-11
d2
2.45
l1
5.47
l2
2.46
l3
1.63
l4
1/4
r1
1.00
w1
3.50
w2
0.75
£ 302.76 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-2 | £ 302.76 | 0% |
| 3-4 | £ 257.35 | 15% |
| 5-9 | £ 242.21 | 20% |
| 10-19 | £ 227.07 | 25% |
| 20+ | £ 211.93 | 30% |
Technical & Application
Material
Forged alloy steel, min. tensile strength 180,000 psi, black oxide coated.
Technical Notes
Magnetic particle inspected.
Tips
Min design safety factor 5:1. *Rated load relates to components of weld mount lifting ring 63700 only. The workpiece material and weld must be capable of supporting a similar weight - please make your own appropriate checks and calculations.
360° swivel and 180° load.
Important Notes
All dimensions in imperial.
Always follow safety instructions.
