Shock Absorber
Adjustable
68020 Shock Absorber, Adjustable
M14 - M20, material: Hardened and blackened steel
Order No.
68020.W0140
With / without cap
With
Stroke
mm
10
Per hour (ETc)
max.
Nm
22000
Nm per cycle (Et)
max.
Nm
12
Effective mass (Me)
max.
kg
35
Speed (v)
max.
m/s
3.0
Operating temperature
°C
-10 to +80
Weight
g
66
Thread
M14x1,5
a
90.3
b
71.7
c
10.3
d
4
e
8.6
f
57.3
h
14
i
4
£ 59.60 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 59.60 | 0% |
| 5-14 | £ 53.64 | 10% |
| 15-24 | £ 50.66 | 15% |
| 25+ | £ 47.68 | 20% |
Technical & Application
Material
Outer Tube: STKM11A, hardened and blackened.
Piston Rod: AISI 1045 hardened to HV940°, chrome plated.
Return Spring: DIN GWP.
Muffler Cap: urethane rubber.
Seal: nitrile rubber.
Technical Notes

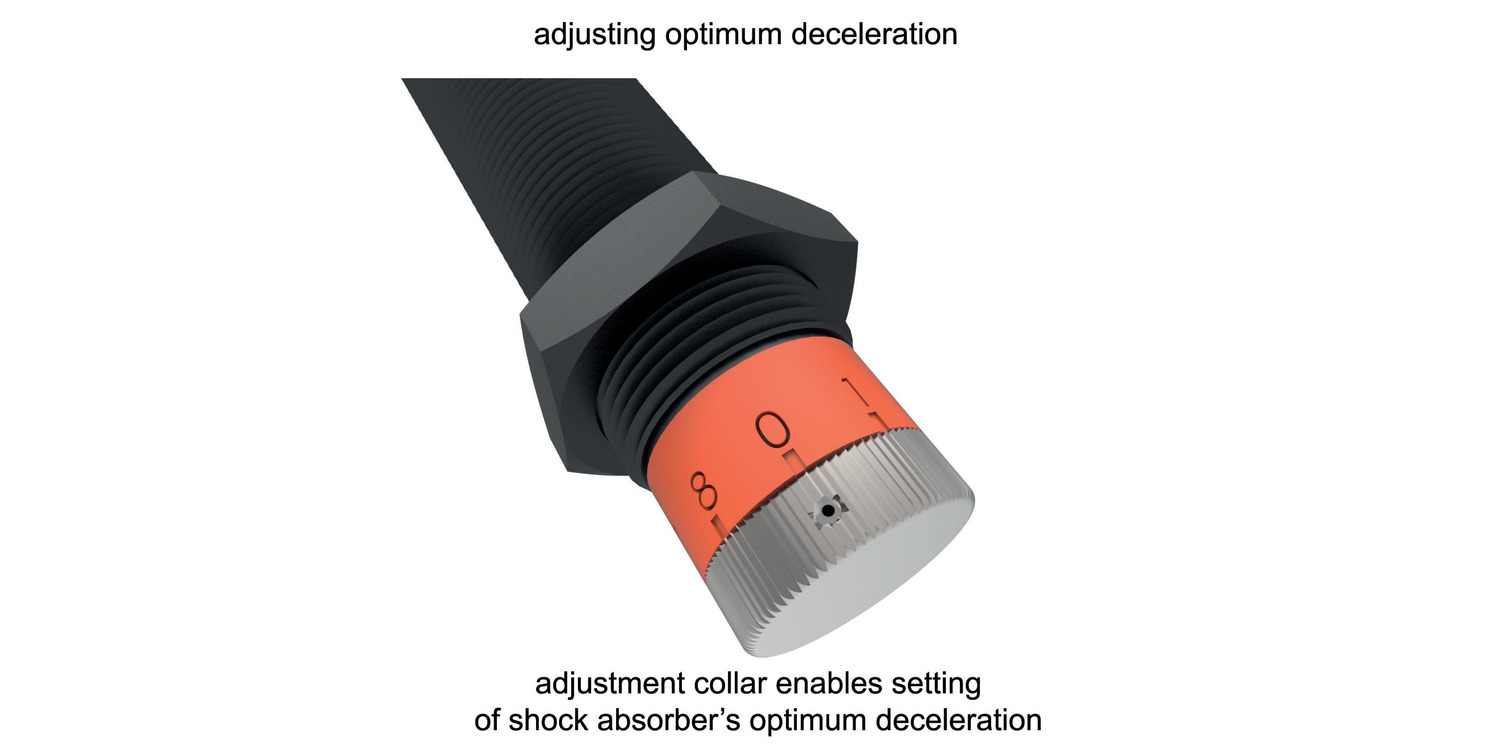

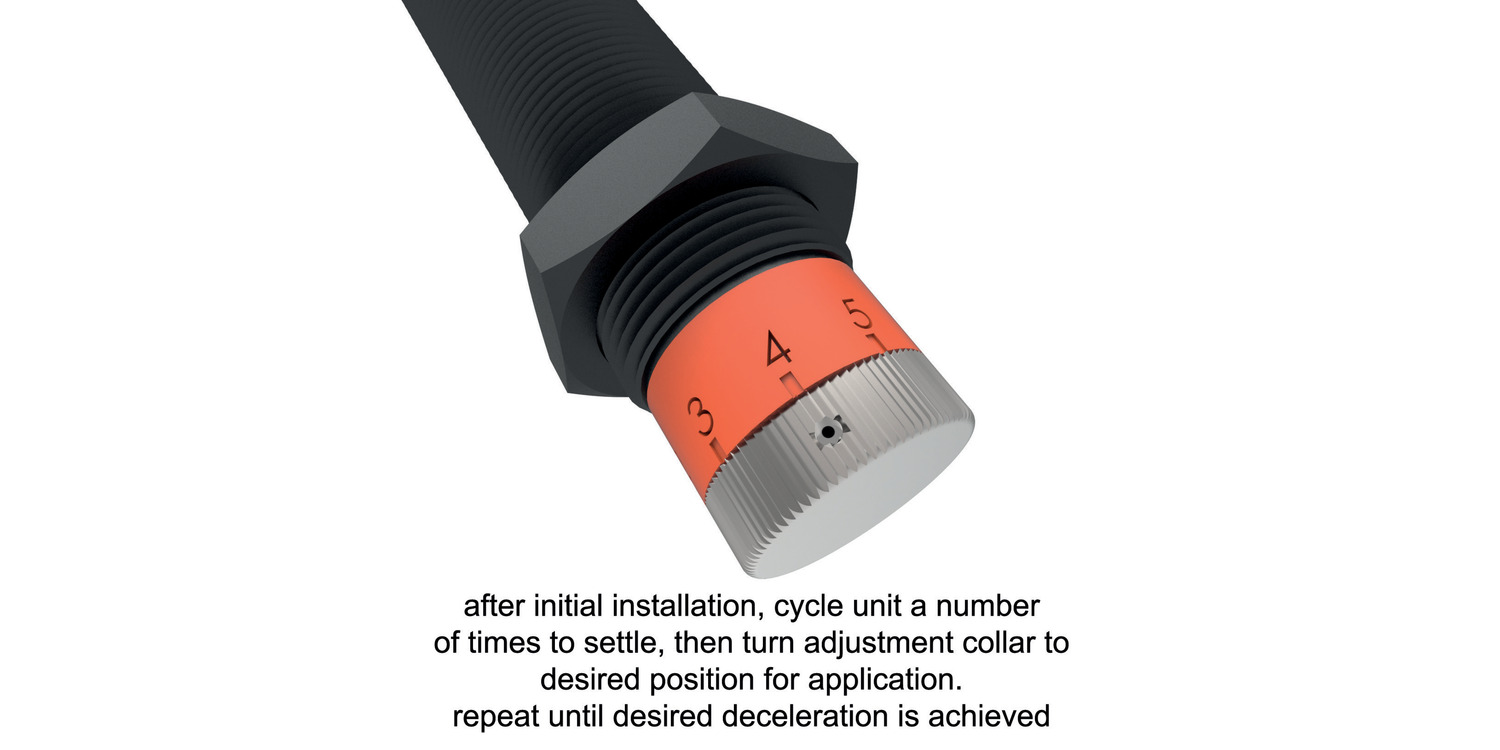

Adjustable shock absorbers have an adjustment collar at their base to enable setting of optimum deceleration of unit to suit application.
Supplied with rubber muffler cap as standard, this is removable - see introductory technical notes for guidance.
Important Notes
For correct product selection refer to Product Selection Formulae and Calculation pages, and associated Capacity & Selection Charts.
Product Datasheets
CAD files
Application images
