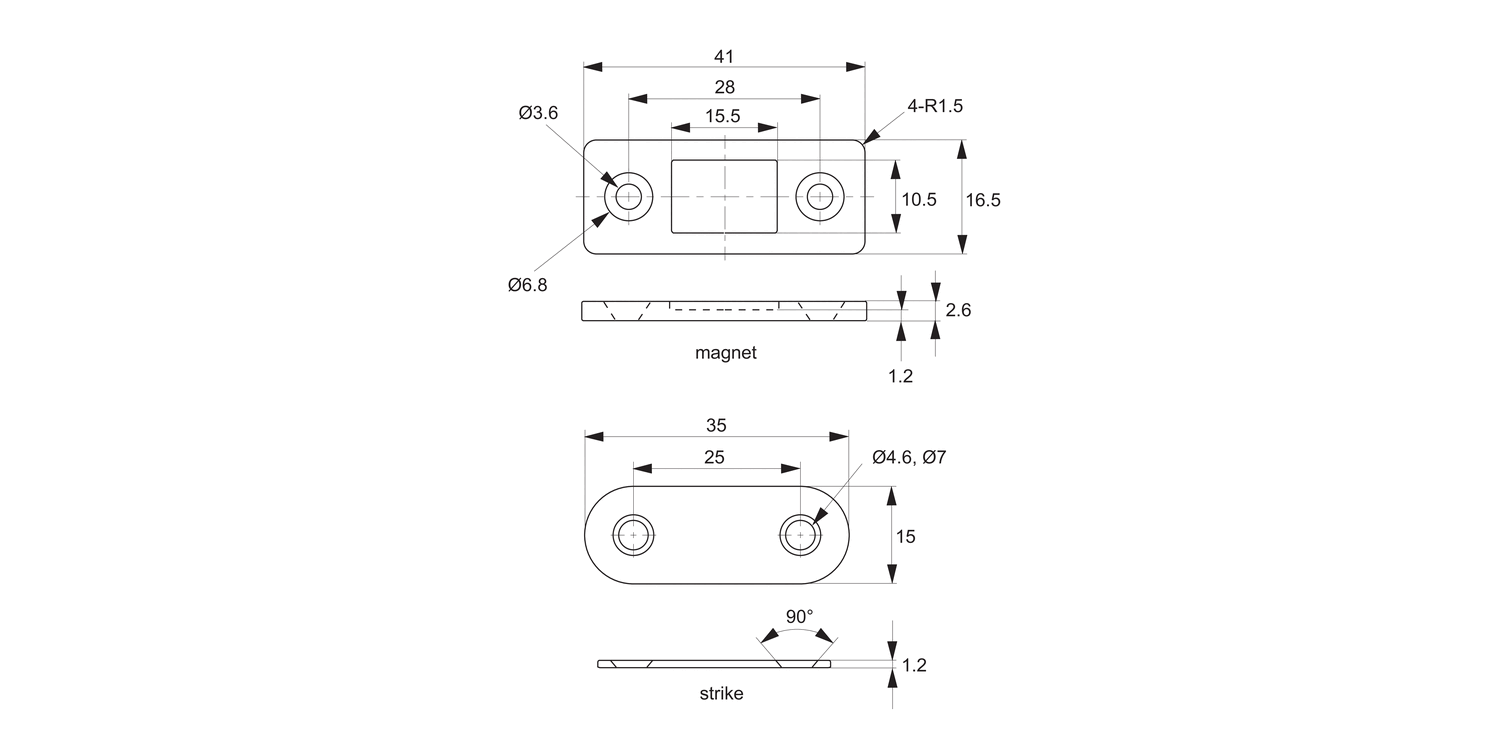

E5680 Magnetic Catches

Name: E5680.AC0010
Brand: WC
SKU: E5680.AC0010
Price: 2.99 EUR
Availability: InStock

Article properties

Order No.

E5680.AC0010

Type

Magnet

Magnetic force kgf

4.0

Weight g

£ 2.99 per unit (click for quantity discounts)

Ready to despatch 25
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Technical & Application

Body & yoke: steel, nickel plated.
Magnet: neodymium

Ultra thin with extra strong magnetic force. Max.temperature 80°C. To avoid damage, counterplate should not hit magnet.
