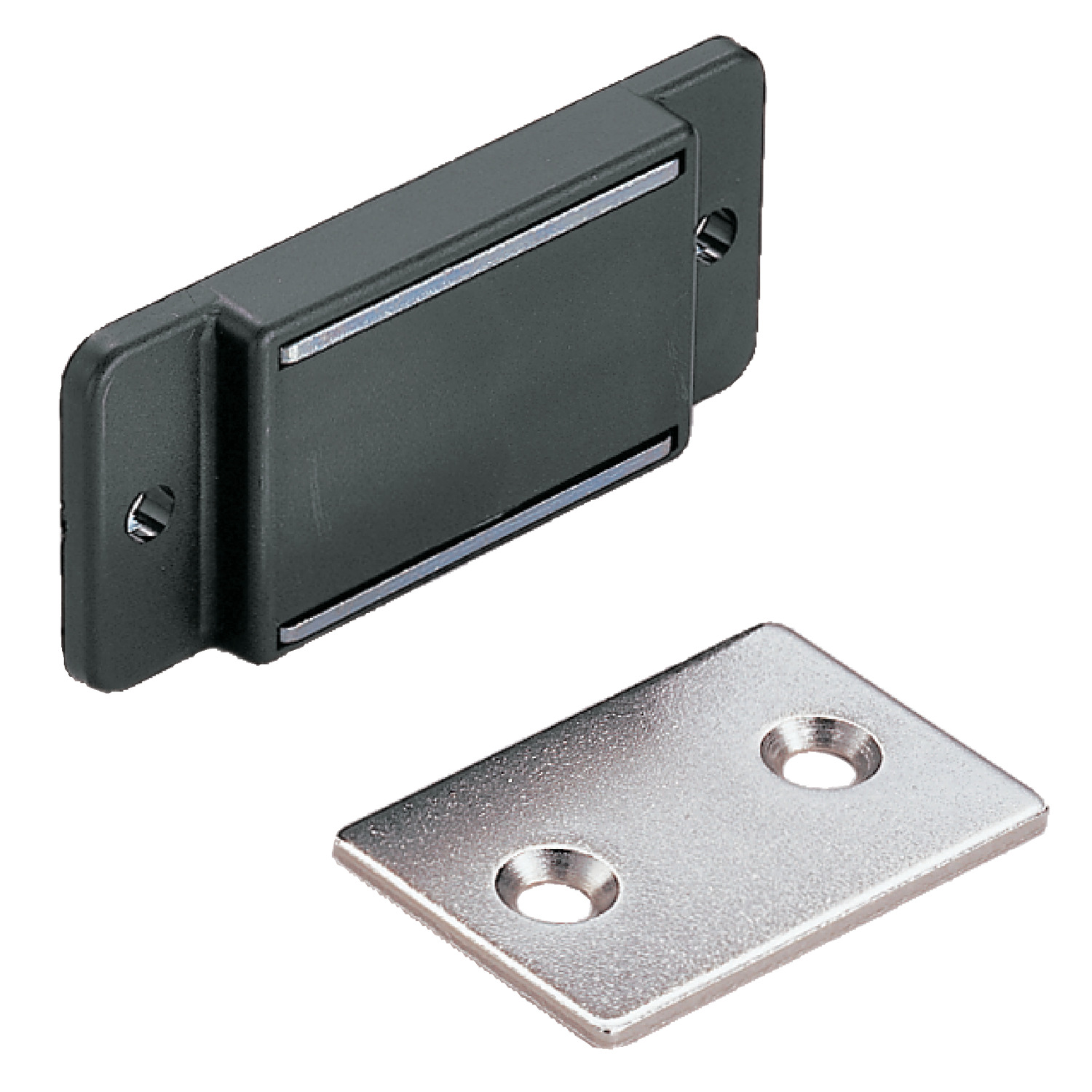

E5690 Magnetic Catches

Name: E5690.AC0014
Brand: WC
SKU: E5690.AC0014
Price: 1.66 EUR
Availability: OutOfStock

material: Plastic

Article properties

Order No.

E5690.AC0014

Magnetic force kgf

Finish

Ivory

l₁

l₂

l₃

l₄

d₁

17.0

d₂

13.5

d₃

p₁

p₂

6.0

Weight g

See full product selection

£ 1.66 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-49	£ 1.66	0%
50-99	£ 1.49	10%
100-249	£ 1.41	15%
250-499	£ 1.33	20%
500+	£ 1.25	25%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Body: ABS plastic.
Yoke and counter plate: steel.
Magnet: ferrite.

Technical Notes

Magnet and Strike supplied together.

Product Datasheets

E5690 Magnetic CatchesJune 24, 2025, 3:38 PM / 208.99 kB

Magnetic CatchesJune 24, 2025, 3:37 PM / 2.80 MB

Catches & LatchesJune 24, 2025, 3:31 PM / 3.04 MB

Catches & Draw LatchesJune 24, 2025, 3:32 PM / 5.19 MB

Access ComponentsJune 24, 2025, 3:32 PM / 32.33 MB

CAD files

E5690 AcisApril 17, 2024, 10:16 AM / 132.26 kB

E5690 IGESApril 17, 2024, 10:16 AM / 378.29 kB

E5690 ParasolidApril 17, 2024, 10:16 AM / 150.19 kB

E5690 ProEApril 17, 2024, 10:16 AM / 1.03 MB

E5690 SolidWorksApril 17, 2024, 10:16 AM / 4.51 MB

E5690 StepApril 17, 2024, 10:16 AM / 177.90 kB
