Magnetic Catches
hermetically sealed

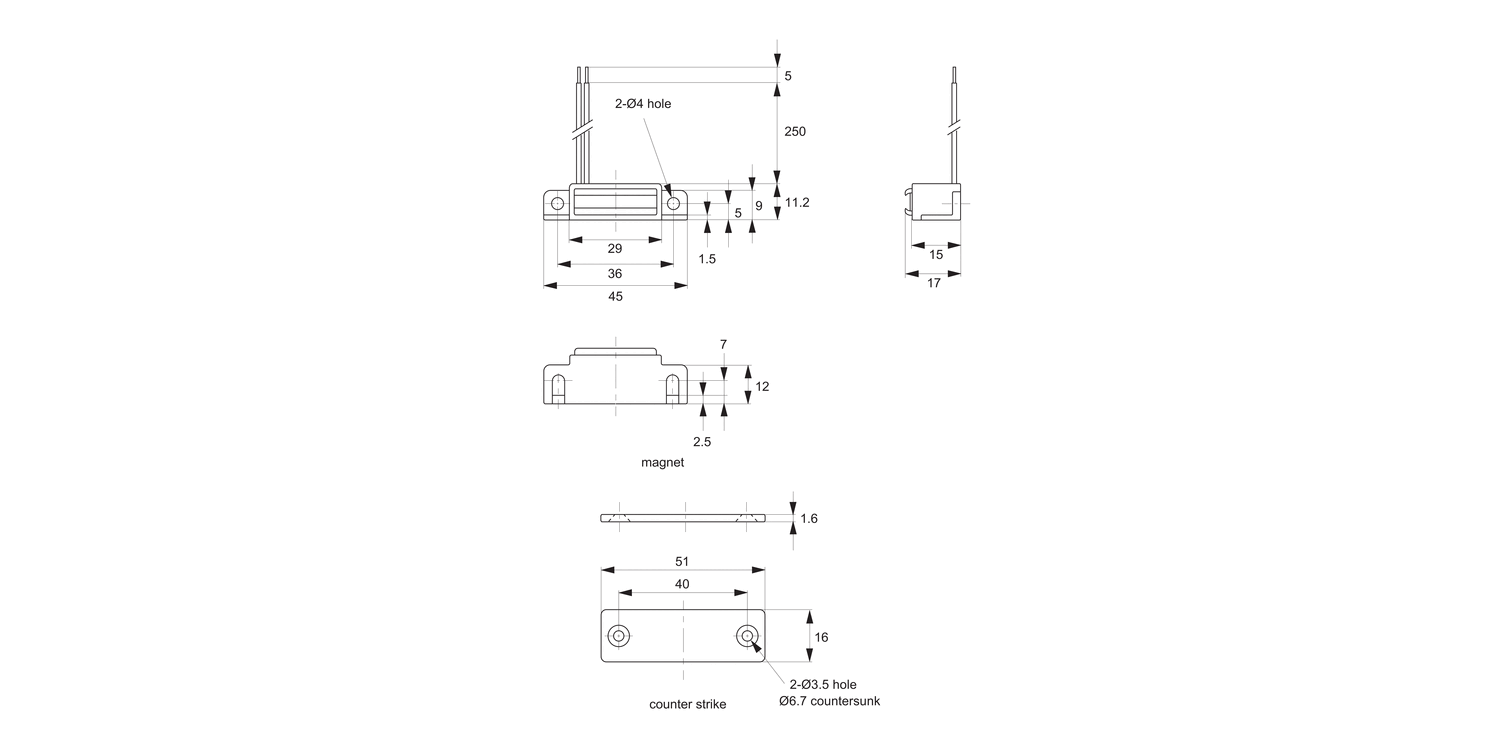

E5900 Magnetic Catches
with electronic reed switch for signalling, material: Polycarbonate
Order No.
E5900.AC0020
Magnetic force
kgf
3
Movement type
A - Reed Switch Closed
Weight
g
28
£ 25.04 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 25.04 | 0% |
| 10-19 | £ 22.54 | 10% |
| 20-49 | £ 21.28 | 15% |
| 50-99 | £ 20.03 | 20% |
| 100+ | £ 18.78 | 25% |
Technical & Application
Material
Body: polycarbonate, black.
Magnet and counter plate: steel, nickel plated.
Cable: UL1007 AWG#26, black. Max. cable strength 1Kg.
Technical Notes
Magnet has the following electrical properties:
Wattage: 10W
Voltage: 100V DC
Max. load rating: 0.5A DC
Max contact resistance (excl. cable): 0.15 ohm.
Temperature resistance 0 to 60°C.
Tips
Type A: Reed switch closes when counter plate and magnet are separated.
Type B: Reed switch opens when counter plate and magnet are separated.
Important Notes
Magnet and Counter Strike enable completion or breaking of electrical circuit of the reed switch, and can be easily incorporated into a lighting or sensor circuit. The magnetic field is NOT powered on/off by any electrical current.
