Toggle Clamps
latch type

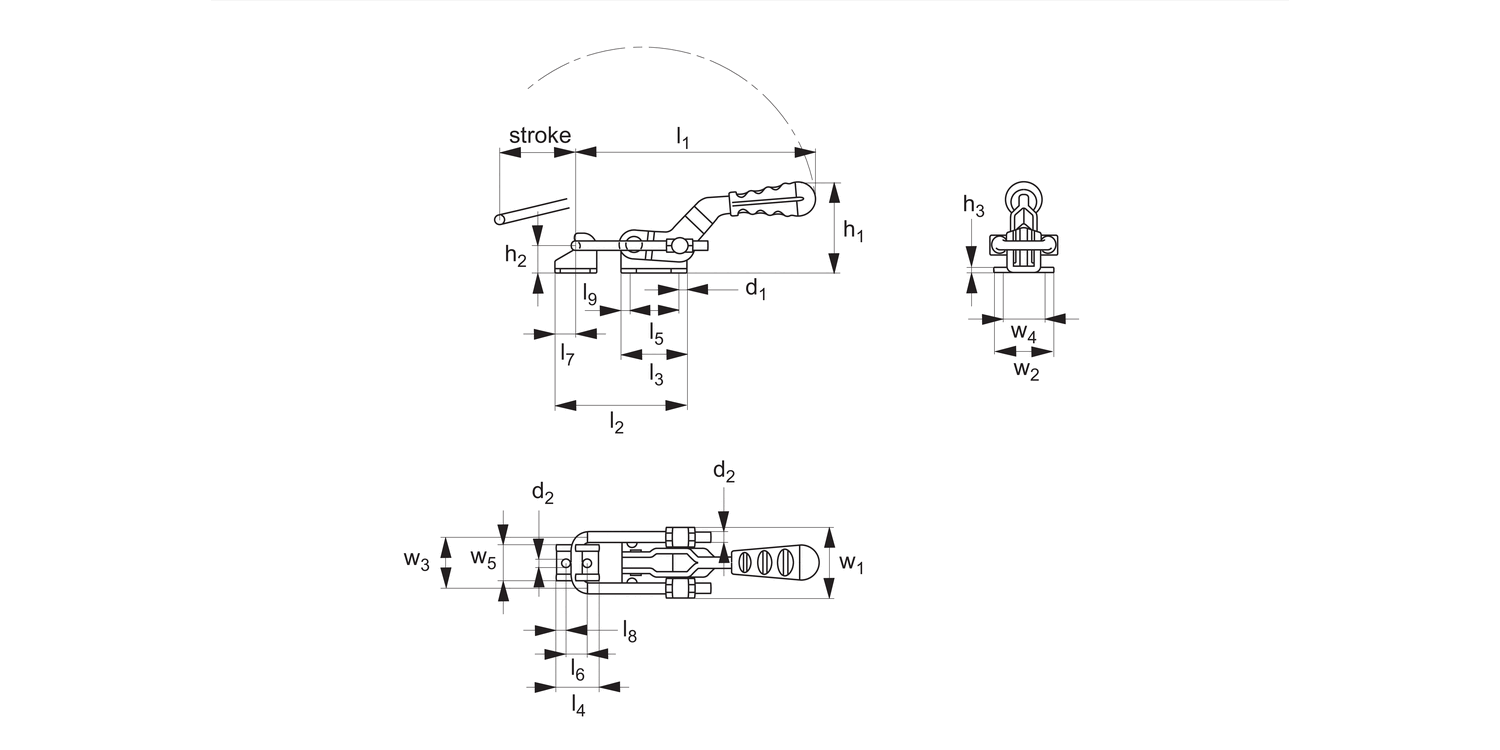

EC648 Economy Toggle Clamps - Latch Type
horizontal acting, material: Steel, zinc plated
Order No.
EC648-2
Size
2
Holding force
kN
1.6
Stroke s1
27.5
d1
4.2
d2
4.2
d3
M 4
h1
32
h2
12
h3
2
l1
96
l2
max.
59
Weight
g
70
l3
26.0
l4
20.0
l5
16.0
l6
10.0
l7
9.0
l8
6.0
l9
5.0
w1
28.0
w2
28.0
w3
19.0
w4
19
w5
13
£ 20.31 per unit (click for quantity discounts)
Ready to despatch 1
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 20.31 | 0% |
| 5-9 | £ 19.29 | 5% |
| 10-19 | £ 18.28 | 10% |
| 20+ | £ 17.26 | 15% |
Technical & Application
Material
Body: steel, zinc plated.
Bushes: case-hardened and greased.
Handle: plastic, red, oil resistant.
Complete with counter strike.
