Drawer Slide Full Extn
lever dis - self-close - 30Kg

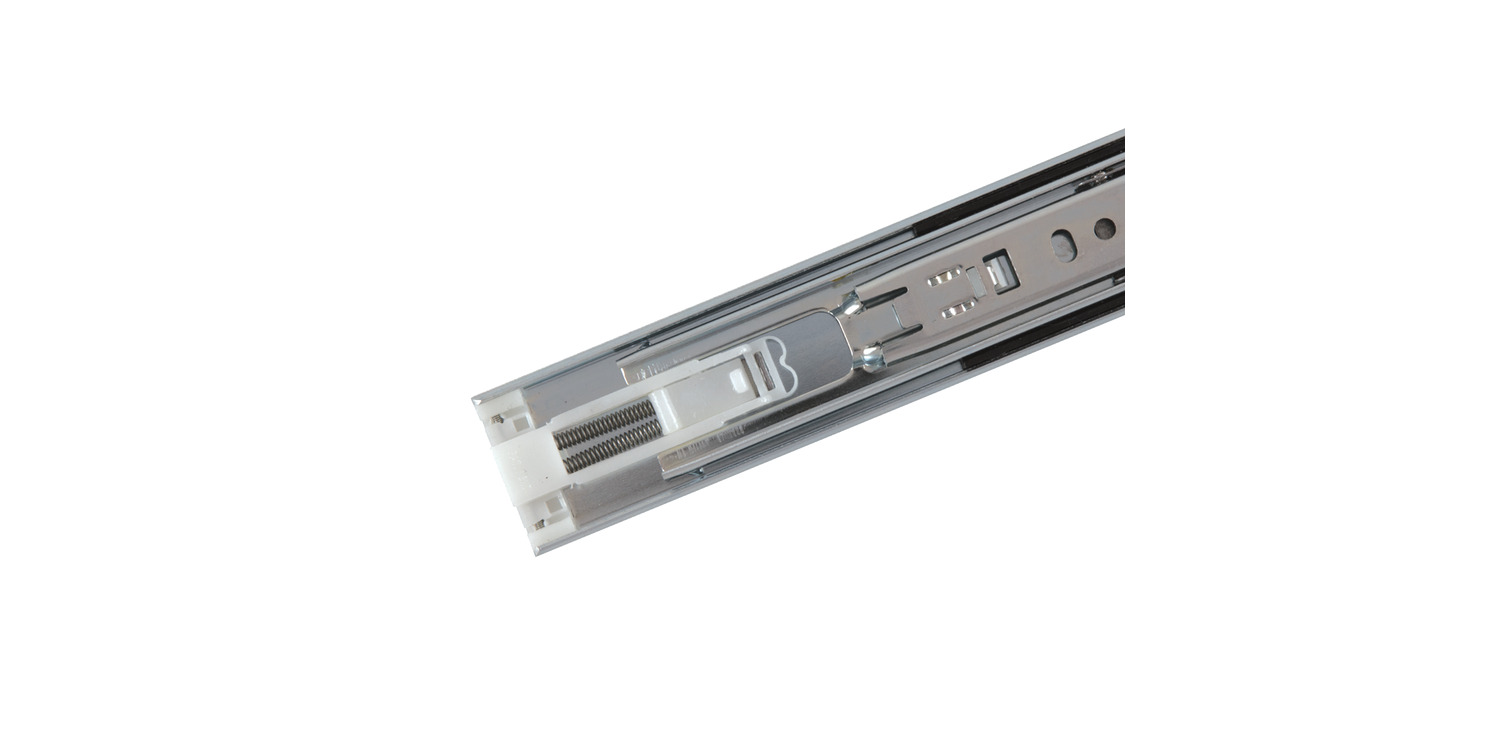

P4050 Drawer Slide - Full Extension
lever disconnect - self-closing - 30 Kg load per pair, material: Steel
Order No.
P4050.AC0350

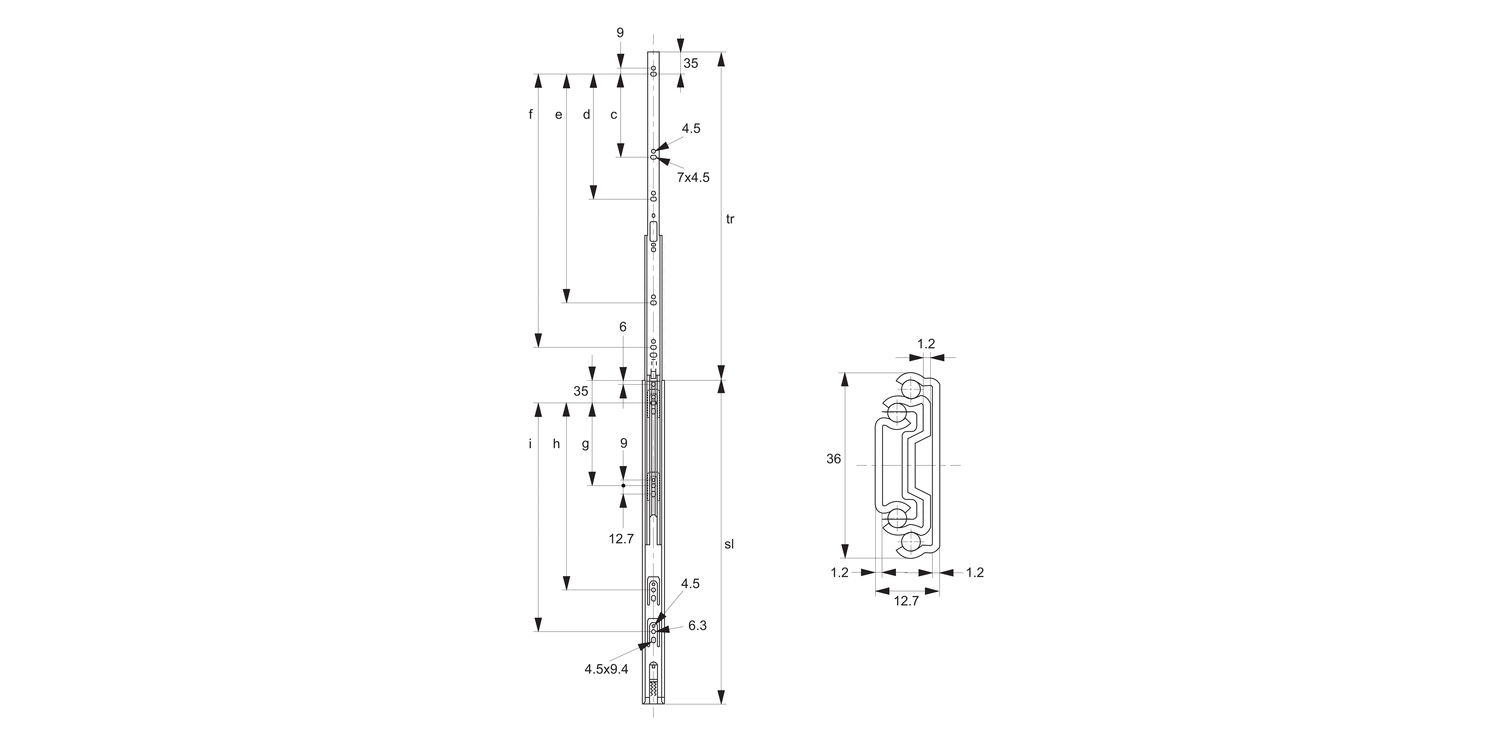

Slide length sl
350
Slide travel tr
356
c
128
e
-
d
-
f
222
g
128
h
-
i
224
Load/pair
max.
kg
30
Weight
g
350
£ 9.76 per unit (click for quantity discounts)
Ready to despatch 10
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 9.76 | 0% |
| 20-49 | £ 8.78 | 10% |
| 50-99 | £ 7.81 | 20% |
| 100+ | £ 6.83 | 30% |
Technical & Application
Material
Cold rolled steel, zinc plated.
Technical Notes
Self-closing (via dual spring) - toward end of slide closing stroke, pulls draw into fully closed position. Hold-in detent when slide closed. Positive stop. Rails can be disconnected via pressing disconnect lever.
These slides have been tested to 80,000 usage cycles.
Important Notes
Load capacity is static load per pair, at the centre of the rails using all mounting holes. Sold individually as single slides.
